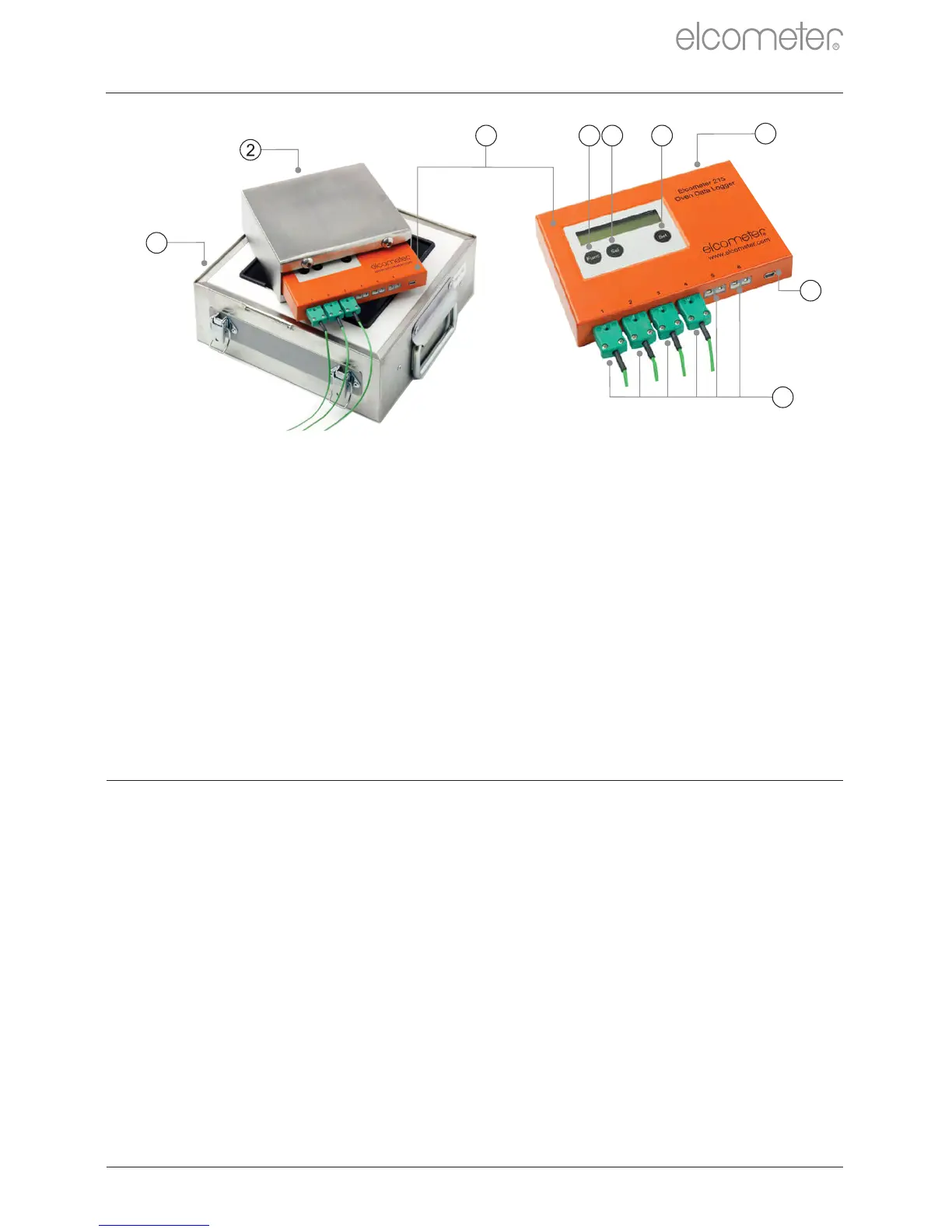

1 GAUGE OVERVIEW
1 Thermal Barrier
2 Heat Sink Block
3 Oven Data Logger
4 ‘Func’ Key; selects the function
5 ‘Sel’ Key; selects the channel or sub-function
a
6 ‘Set’ Key; changes any of the settings
7 Battery Compartment; on the rear of the logger
8 USB Socket
9 K-type Temperature Probe Socket; 6 off
1
3
4
5
6
8
9
7
2 BOX CONTENTS
Elcometer 215 Oven Data Logger
Thermal Barrier (Model S only)
Thermal Barrier with Heat Sink Block (Model T only)
Calibration Certificate (if ordered)
Note: The Elcometer 215 is not suppled with k-type temperature probes - probes must
be ordered separately, see Section 5.1 ‘Temperature Probes’ on page en-9.
a
Settings can not be changed whilst logging.
