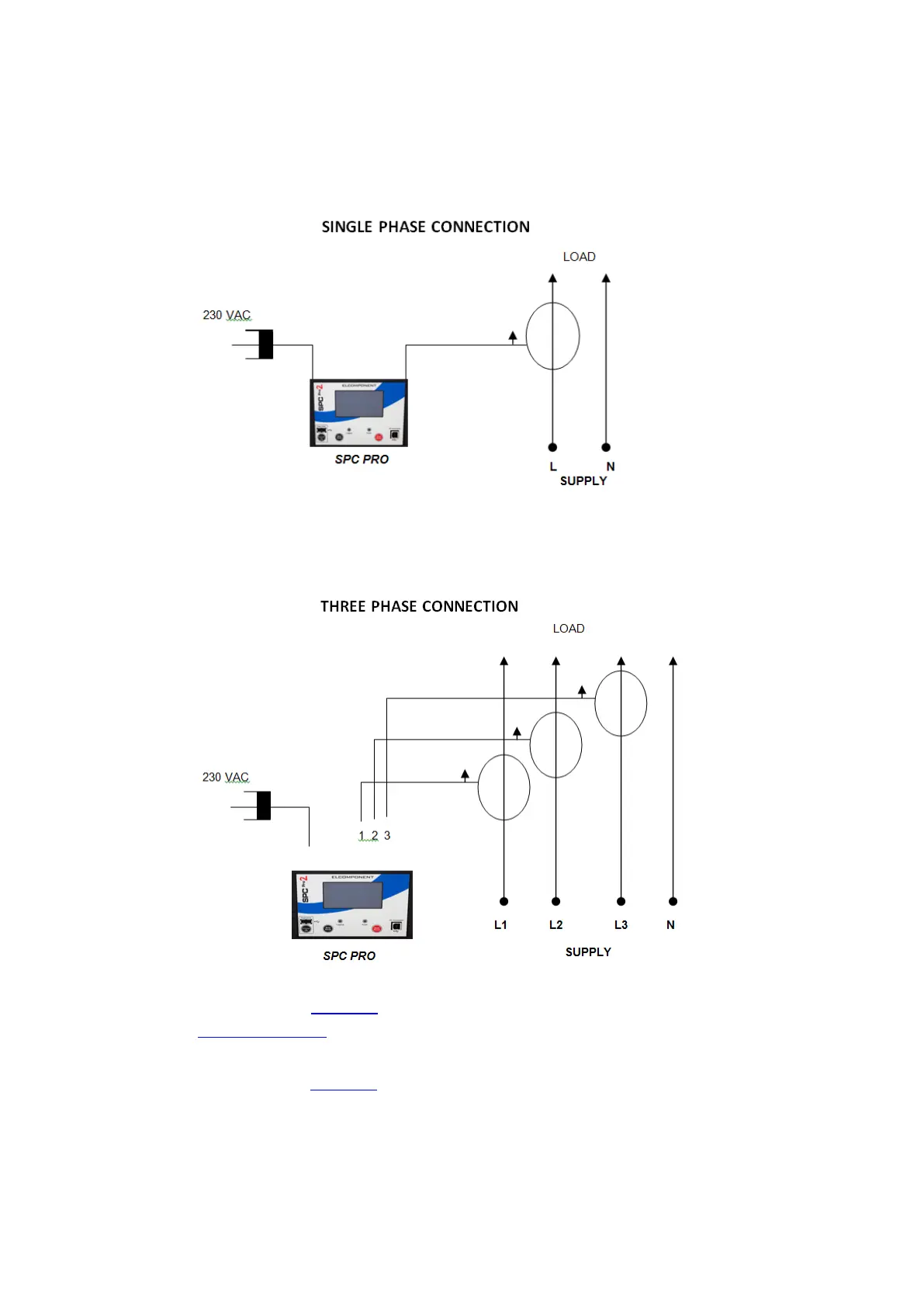

NOTE: Single Phase Connection – CT connection must be made
using L1. If mains connection is made, this should be V1. If this
cannot be checked the survey can be carried out on battery.
NOTE: It is essential to orientate the CTs with the arrow pointing
towards the load as shown.
NOTE: It is essential that the phase cables are correctly identified
when connecting the flex CTs. (See Appendix 2 for more information
on phase identification).
