9-3
HOW TO USE YOUR MOTORHOME’S EQUIPMENT
CONTROL PANEL

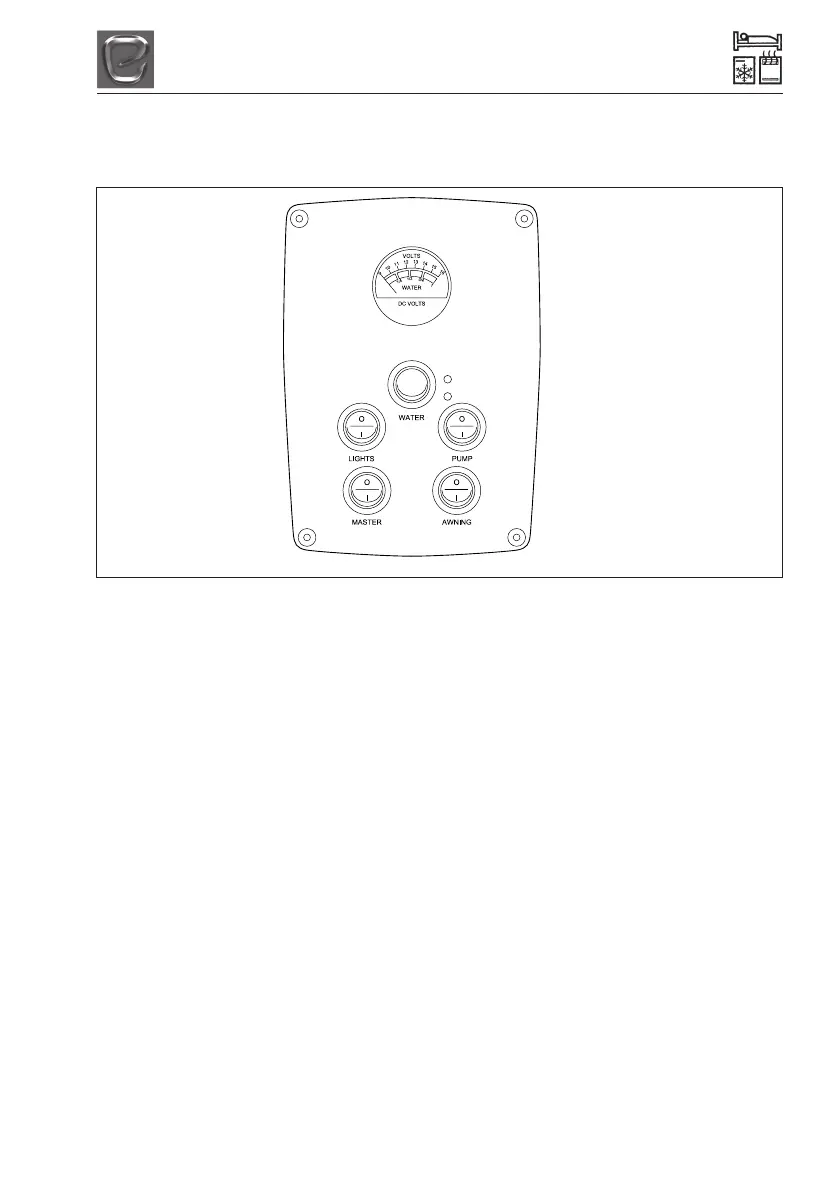

Your new Elddis Autoquest Motorhome is fitted with the control panel shown below.
Each switch is clearly marked to identify what it operates.
In order for any of the electrics in your motorhome to operate from the auxiliary battery you must
first ensure that the master switch is in the ‘I’ position.
The light switch on the control panel operates the main lounge area lights..
You must place the pump switch to the ‘I’ position in order for the water pump to operate and to
enable water to be run to any of the water taps.
The awning switch operates the outside awning light.
The green LED light will illuminate when the pump is running.
The red LED light will illuminate when the waste tank is full.
