HOW TO USE YOUR CARAVAN’S EQUIPMENT
WHALE UNDERFLOOR SPACE HEATER
Operating Instructions
For operation of the Space Heater, a 12 V
d.c. supply must be connected at all times. To
operate the Space Heater’s electric
elements, it must also be connected to a
suitable 230V a.c. supply.
To operate the Space Heater, cycle through
the power functions by pressing the Space
Heater Function button.
Space Heater Power Functions Available:
Gas Operation
For gas operation; press the space heater
function button until the ‘Gas On’
icon is illuminated.
There will be a pre-purge pause of approx.
30 seconds to allow any un-burnt gas to
leave the flue.
When the icon below is lit green, flame
ignition has been successful.
If there is air in the gas supply line, it may
take a few attempts for the gas to ignite. See
the Troubleshooting Guide, for gas lockout
resetting. If gas ignition is not satisfactory, the
below symbol will light red to indicate a fault.
See the Troubleshooting Guide, for
identifying and clearing a fault.
Electric Operation
The Space Heater is equipped with 3 electric
power settings; 500W / 1000W / 2000W.
500W
To select 500W; press the space heater
function button until the ‘500W s
illuminated.
1000W
To select 1000W; press the space heater
function button until the ‘1000W icon is
illuminated.
2000W
To select 2000W; press the space heater
function button until the ‘2000W is
illuminated.
When operating on 500W and 1000W the
blown air fan runs at a reduced speed to
minimise noise and current draw.
Please note: The electric elements will still
operate if the appliance is in gas ignition
lockout.

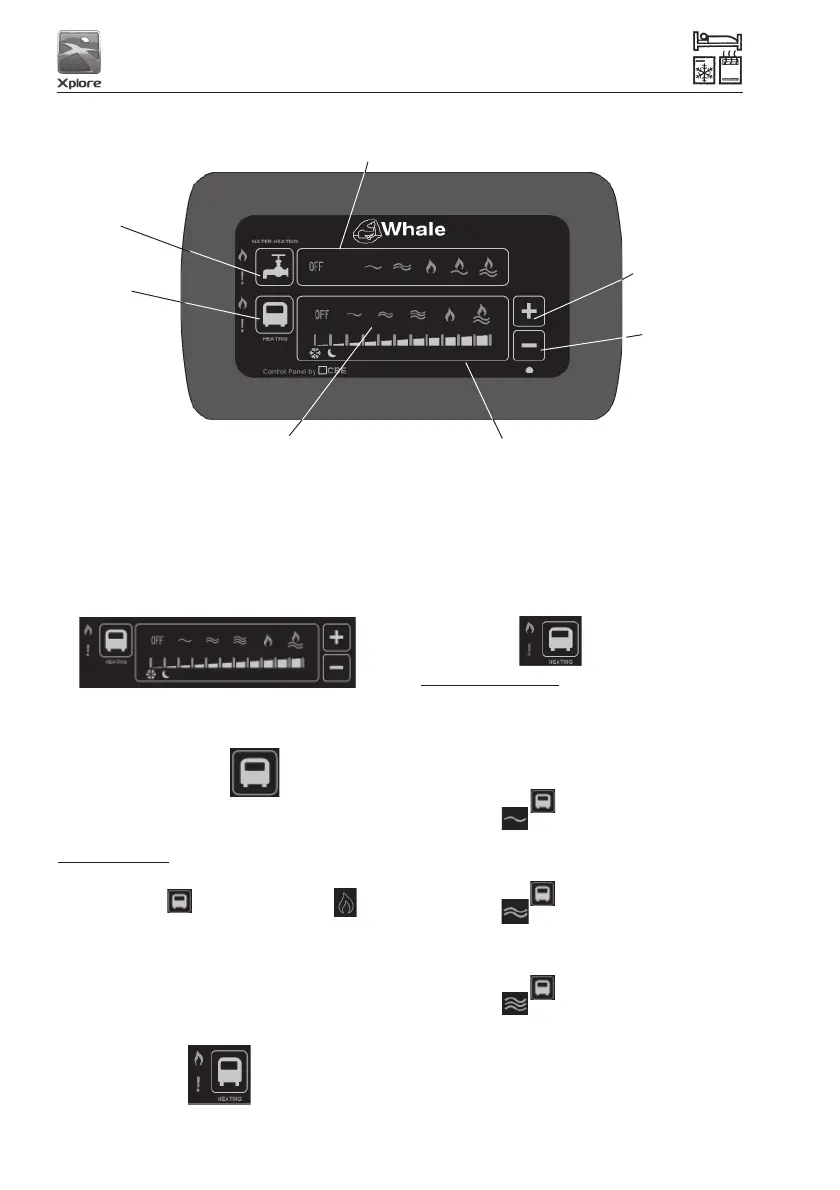

Water Heater Functions
Water Heater
Function Button
Space Heater
Function Button
Space Heater Temperatrue BarSpace Heater Functions
Space Heater
Temperatrue Up
Space Heater
Temperatrue
Down
