HOW TO USE YOUR CARAVAN’S EQUIPMENT
WHALE WATER HEATER
Operating Instructions
For operation of the Water Heater, a 12 V d.c.
supply must be connected at all times. To
operate the Water Heater’s electric elements,
it must also be connected to a suitable 230V
a.c. Supply.
To operate the Water Heater, cycle through
the power functions by pressing the Water
Heater Function button.
Water Heater Power Functions Available:
Gas Operation
For gas operation; press the water heater
function button until the ‘Gas On’ icon is
illuminated.
There will be a pre-purge pause of approx.
30 seconds to allow any un-burnt gas to
leave the flue.
When the icon below is lit green, flame
ignition has been successful.
If there is air in the gas supply line, it may
take a few attempts for the gas to ignite. See
the troubleshooting guide, for gas lockout
resetting. If gas ignition is not satisfactory, the
below symbol will light red to indicate a fault.
See the troubleshooting guide, for identifying
and clearing a fault.
Electric Operation
The Water Heater is equipped with 2 electric
power settings; 750W / 1500W.
750W
To select 750W; press the water heater
function button until the ‘750W icon is
illuminated.
1500W
To select 1500W; press the water heater
function button until the ‘1500W icon is
illuminated.
Please note: The electric elements will still
operate if the appliance is in gas ignition
lockout.

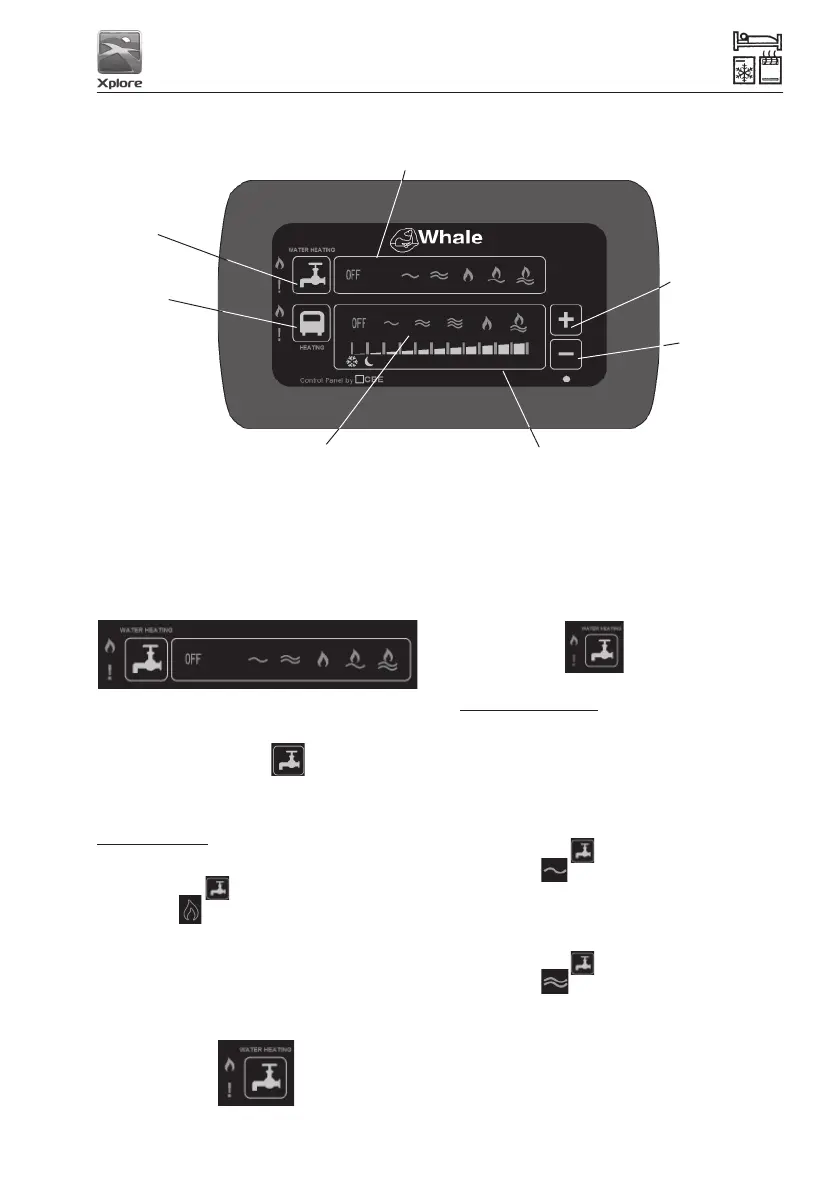

Water Heater Functions
Water Heater
Function Button
Space Heater
Function Button
Space Heater Temperatrue BarSpace Heater Functions
Space Heater
Temperatrue Up
Space Heater
Temperatrue
Down
