8-39
HOW TO USE YOUR CARAVAN’S EQUIPMENT
GAS LOCKER DOOR
Your new Xplore caravan is fitted with a gas
locker door which is held open via the use of
the metal supporting strut which should be
located in the fixing position in the door.
Please note: It is important when raising
your gas locker door that you do not push the
door past the vertical position as this could
damage the hinges. Also care should be
taken when leaving the door in the open
position to ensure that any wind cannot catch
the door and push it open beyond the vertical
position.

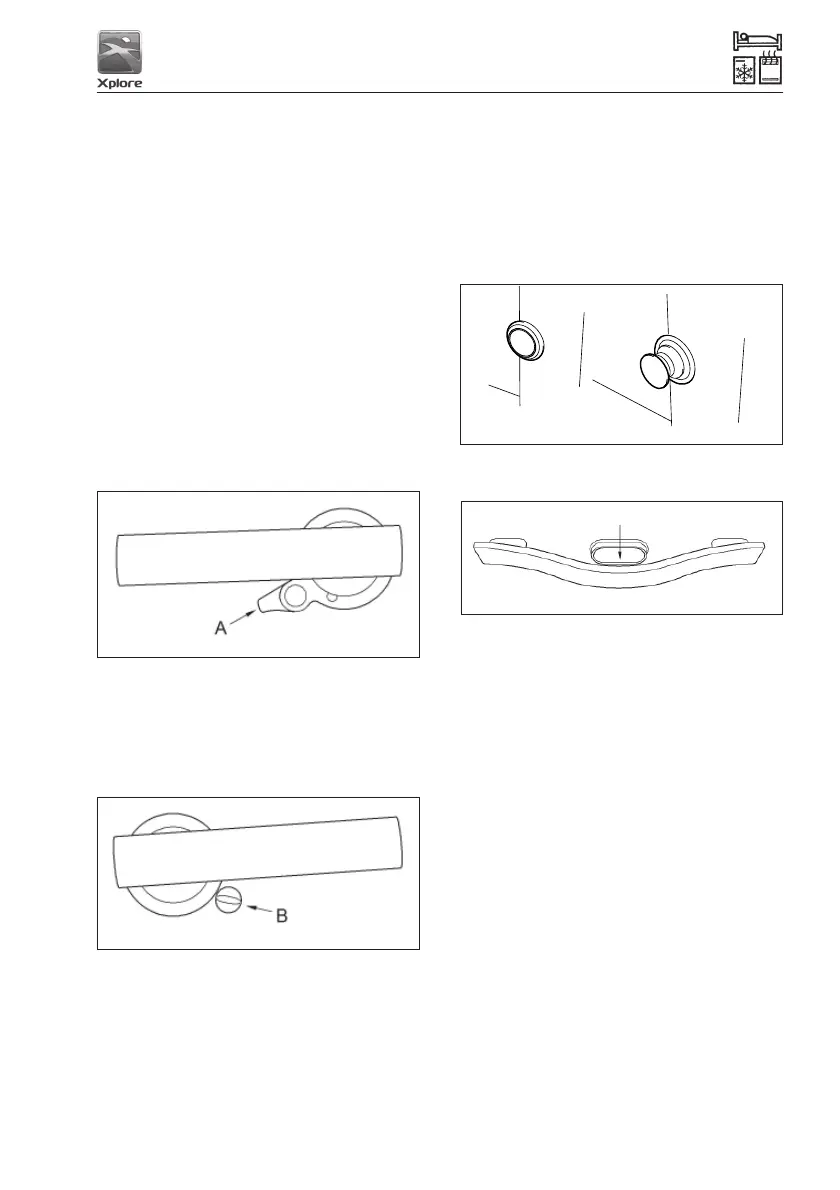

INTERNAL DOORS
Toilet/Shower Room Doors
Operation from within the shower
room
To lock the door, push the small lever down
(identified in the drawing as A) then to unlock,
push this lever back to the original position.
Operation from outside the shower
room
To open and close the door, push the lever
down.
If the door is locked and needs to be opened,
it can be opened by inserting a coin into the
lower slot (identified in the drawing B) and
turning the slot.
Other Internal Doors
PADDLE LATCH
To open the locker, push the paddle
downwards and pull the handle towards you.
OTHER INTERNAL DOORS
Other internal doors such as the wardrobe
and table storage locker are fitted with a 2-
position button lock. Push the button to lock
the door and the button should remain flush
with the door. Push the button again to
release and the button should then protrude
from the door surface.
