HOW TO USE YOUR CARAVAN’S EQUIPMENT

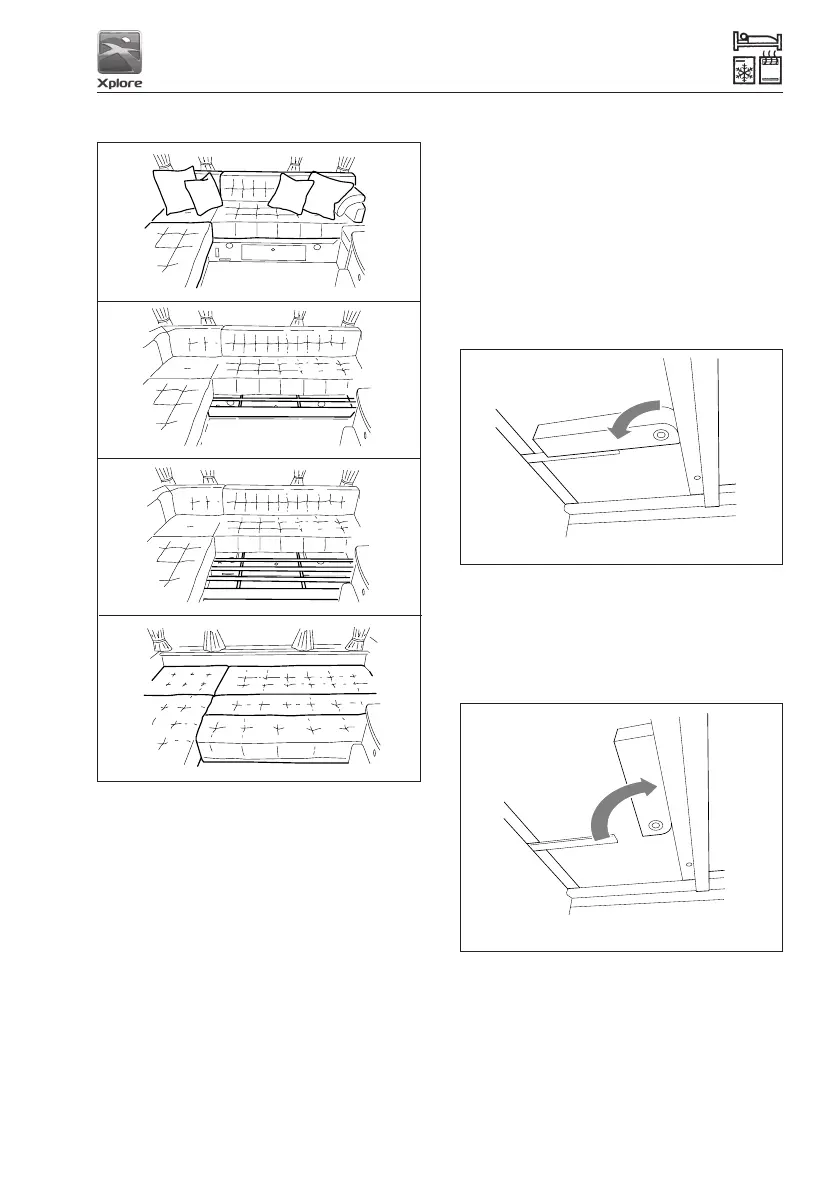

L-Shape Lounge Double Bed
On L-shaped layout, the bed frame is pulled
out from underneath the rear facing seat.
Arrange the seat cushions appropriately.
Removal of sofa back rest cushions will
provide single beds.
1
2
3
4
FRONT WRAP ROUND SEATING
(Option)
If you have purchased the wrap round
seating option for your new caravan please
note that the centre seat can be extended by
the use of the locking mechanism which can
be found under this seat.
Pull the slats forward then turn the locking
plate to be in the direction down the caravan
(see fig 1) in order to secure the front seat in
place.
This will prevent the slats from going back
into the front seat and increase the seated
area.
Please ensure you return the locking plate to
its normal position (see fig 2) if you wish to
remove the wrap round seating.
Fig 1
Fig 2
Maximum load for the beds
Lift up bunk 75 kgs (11 stone)
Fixed bunks 100 kgs (17 stone)
Fixed single beds 125 kgs (19
1
/
2
stone)
Double fixed bed 250 kgs (39 stone)
To Next Page
