8-42
HOW TO USE YOUR CARAVAN’S EQUIPMENT
Lift up Bunk Beds (530 4 berth
option only)
Where fitted, the foldaway bunk has been
tested to 70kg (11 stones) and has a
recommended limit of 57kgs (9 stones).
Safety features are included but care
should always be taken, particularly if the
child is under 3 years of age. Bunks are
not suitable for children under 6 years old
without supervision.

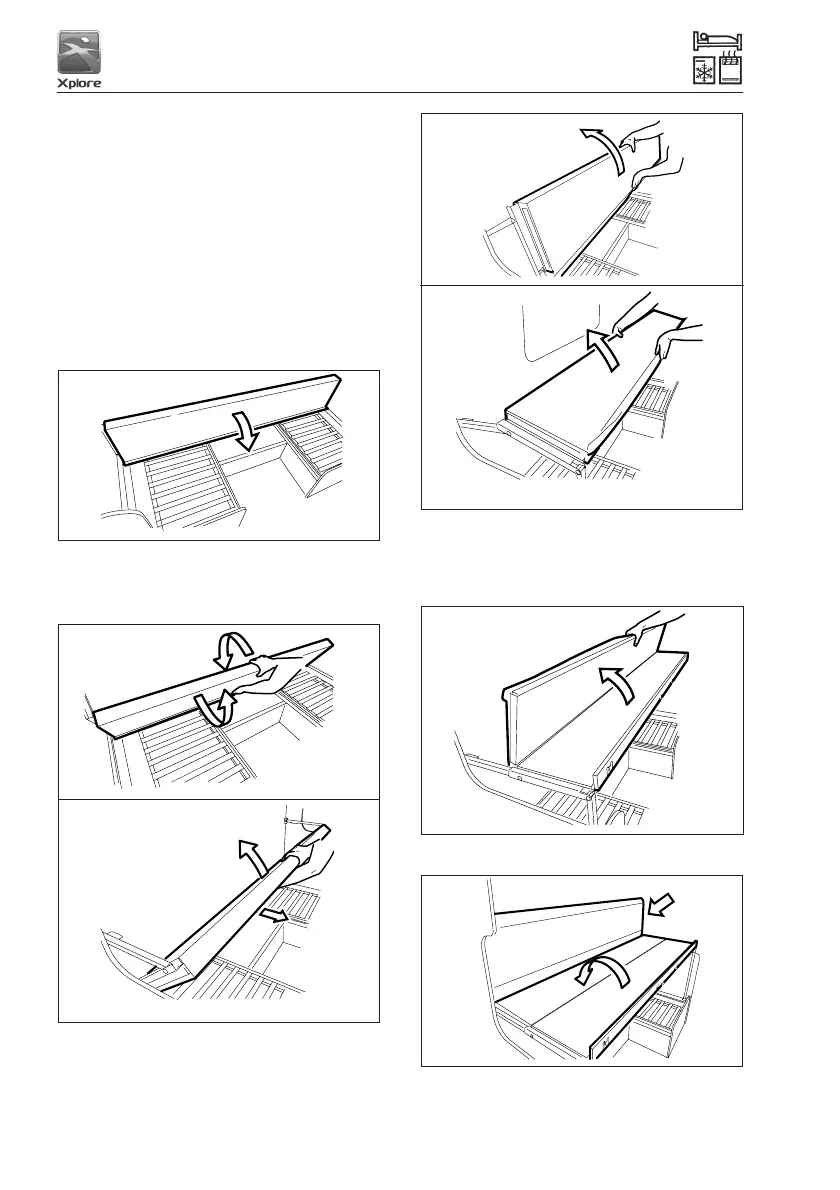

The following step by step guide illustrates
how to assemble the bunk bed.
1. Pull the top edge of the bunk towards
you.
2 & 3 With your left hand on the bottom
edge, lift upwards and towards you,
while your right hand keeps the bunk
steady.
1
2 & 3
4 & 5 As the left hand passes the pivot point
allow the right hand to slowly lower
the bunk into the rest position.
6 Fold the two part bunk into position.
7Fit the safety boards into position.
4 & 5
6
7
