14-1
SERVICING
SM OU12HP 2-E.2 GB
14. SERVICING
14.1 Outdoor Unit
TURN OFF ALL POWER SOURCE BEFORE HANDLING THE UNIT
Note: To reassemble perform the procedures in reverse.
14.1.1 Removing Service (front) panel
Remove the 8 fixing screws and slide the service (front) panel downwards to remove it.
Note: Do not flip the panel forward on the top side as not to damage the controller.
14.1.2 Removing top panel
Remove the 8 fixing screws and take out the top cover.

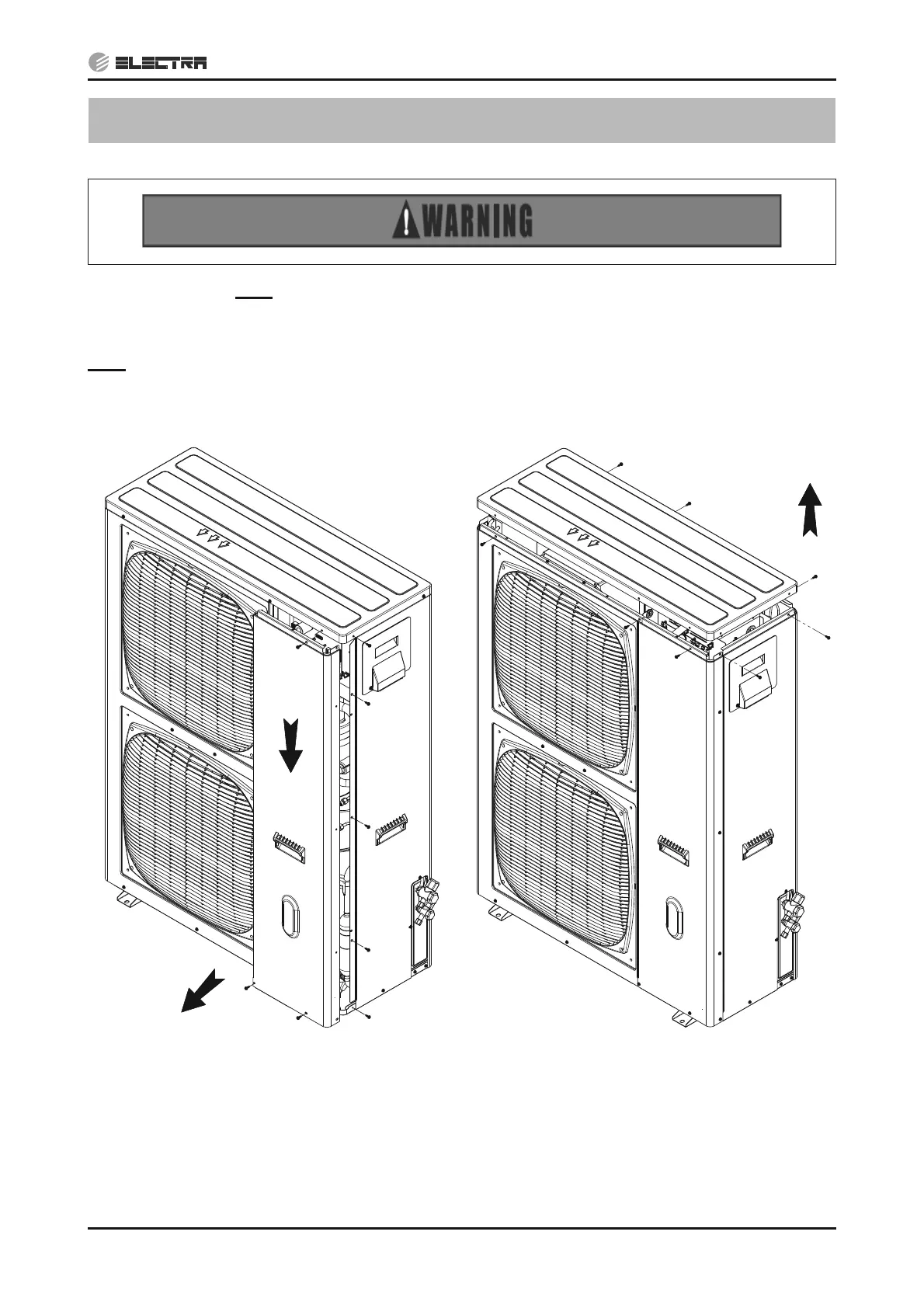

Removing Service (front) panel Removing Top panel
