OPTIONAL ACCESSORIES
16-3SM OU12HP 2-E.2 GB
16.3 Base Heater
PN: 439878
Before starting the heaters connection verify that the unit is
disconnected from main power supply!!
BASE HEATERT INSTALLATION INSTRUCTIONS
Check the installation manual for further information
The kit includes:
1. One 70W PT heating element.
2. One Heater holder.
3. Two magnets for assemble of heater to outdoor base.
4. 4 Strips.
Instructions:
1. Open the outdoor unit electrical cover and service panel.
2. Connect the base heater wires to connections marked as “BH” on the main controller (refer to
Figure 1).
3. Route the wires into the cable holders and through the grommet and attach the wires with
strips to other wires as per Figure 1 & 2.
4. Locate the heater under the outdoor base with the magnets according to Figure 3.
5. Attach with strips the wires to the pipes and the base unit.
6. Close the outdoor electrical cover and service panel.

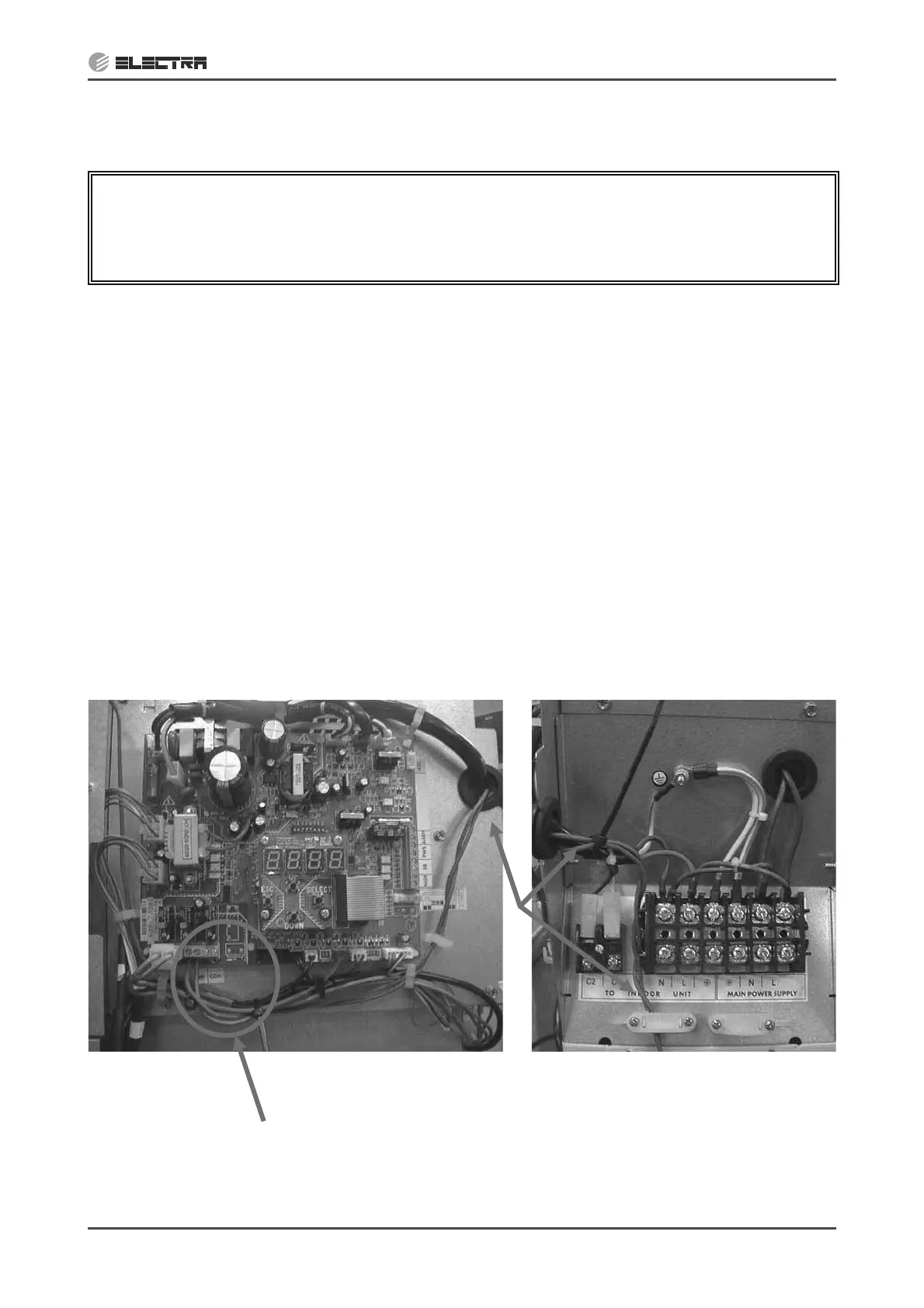

Figure 1
Figure 2
