Electra DNG 100 - EMD 125 DCI Performance Data

5-13

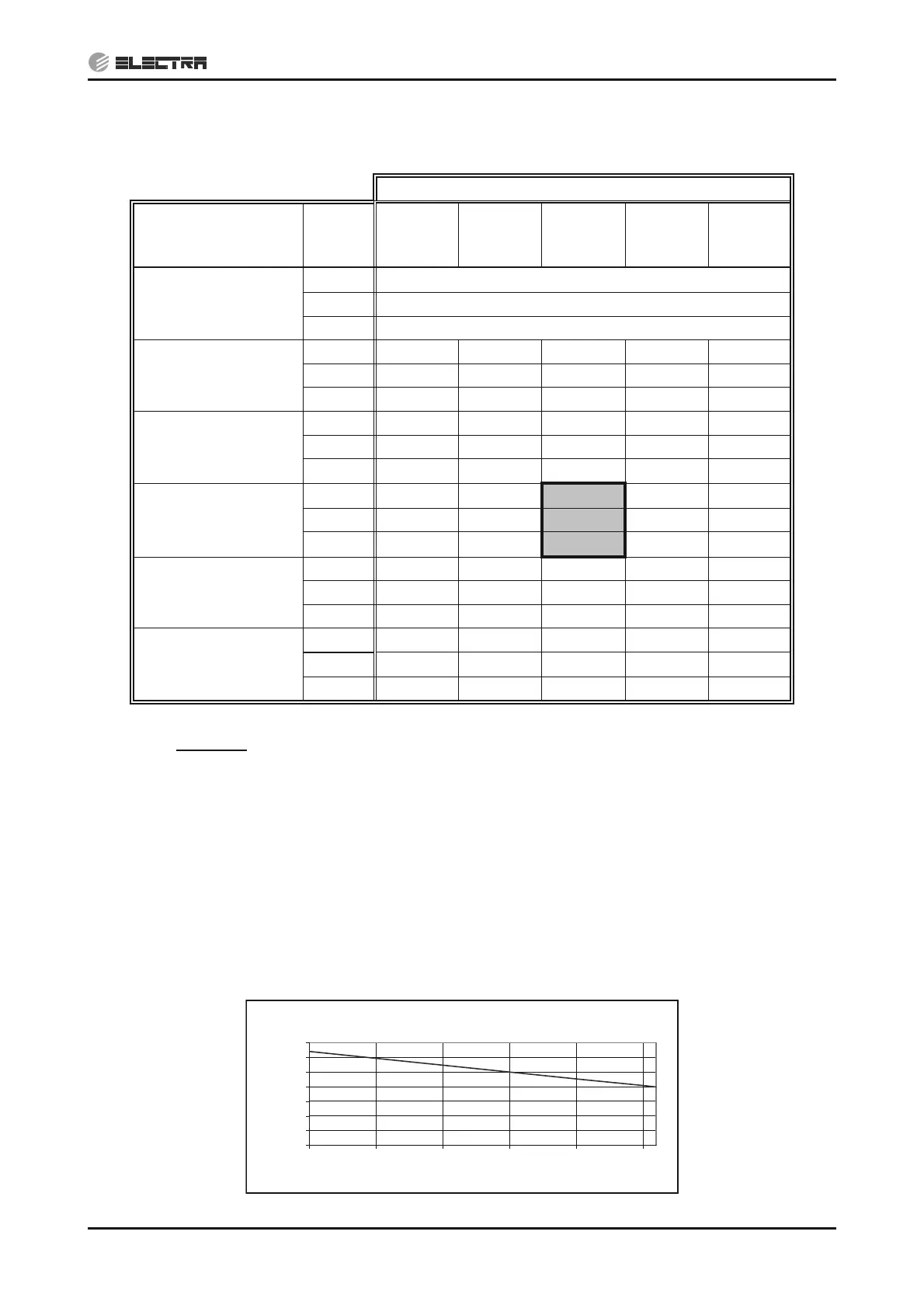

PERFORMANCE DATA & PRESSURE CURVES
SM OU12HP 2-E.2 GB
5.4 EMD 125 DCI
5.4.1 Cooling Capacity (kW)
ID COIL ENTERING AIR DB/WB TEMPERATURE [qC]
OD COIL
ENTERING AIR DB
TEMPERATURE [qC]
DATA
22/15 24/17 27/19 29/21 32/23
-10 – 20
(protection range)
TC 80 - 110 % of nominal
SC 80 - 105 % of nominal
PI 25 - 50 % of nominal
25
TC 12.08 12.87 13.66 14.45 15.24
SC 9.87 10.07 10.27 10.47 10.68
PI 3.22 3.28 3.35 3.41 3.47
30
TC 11.50 12.29 13.08 13.87 14.66
SC 9.62 9.82 10.02 10.23 10.43
PI 3.60 3.66
3.72
3.78 3.85
35
TC 10.92 11.71
12.50
13.29 14.08
SC 9.37 9.57 9.78 9.98 10.18
PI 3.98 4.04
4.10
4.16 4.22
40
TC 10.34 11.13
11.92
12.71 13.50
SC 9.12 9.32 9.53 9.73 9.93
PI 4.35 4.42 4.48 4.54 4.60
46
TC
9.64 10.43 11.22 12.01 12.80
SC
8.82 9.03 9.23 9.43 9.63
PI 4.71 4.87 4.93 4.99 5.05
LEGEND
TC – Total Cooling Capacity, kW
SC – Sensible Capacity, kW
PI – Power Input, kW
WB – Wet Bulb Temp., (
o
C)
DB – Dry Bulb Temp., (
o
C)
ID – Indoor
OD – Outdoor
5.4.2 Capacity Correction Factors (Cooling)
Cooling Capacity Ratio Vs. Outdoor Temperature
0.50
0.60
0.70
0.80
0.90
1.00
1.10
1.20
20 25 30 35 40 45
Outdoor Temperature [deg C]
Capacity Ratio
