Electra evolution - Supply Control Unit Installation; Video Connection Box Installation

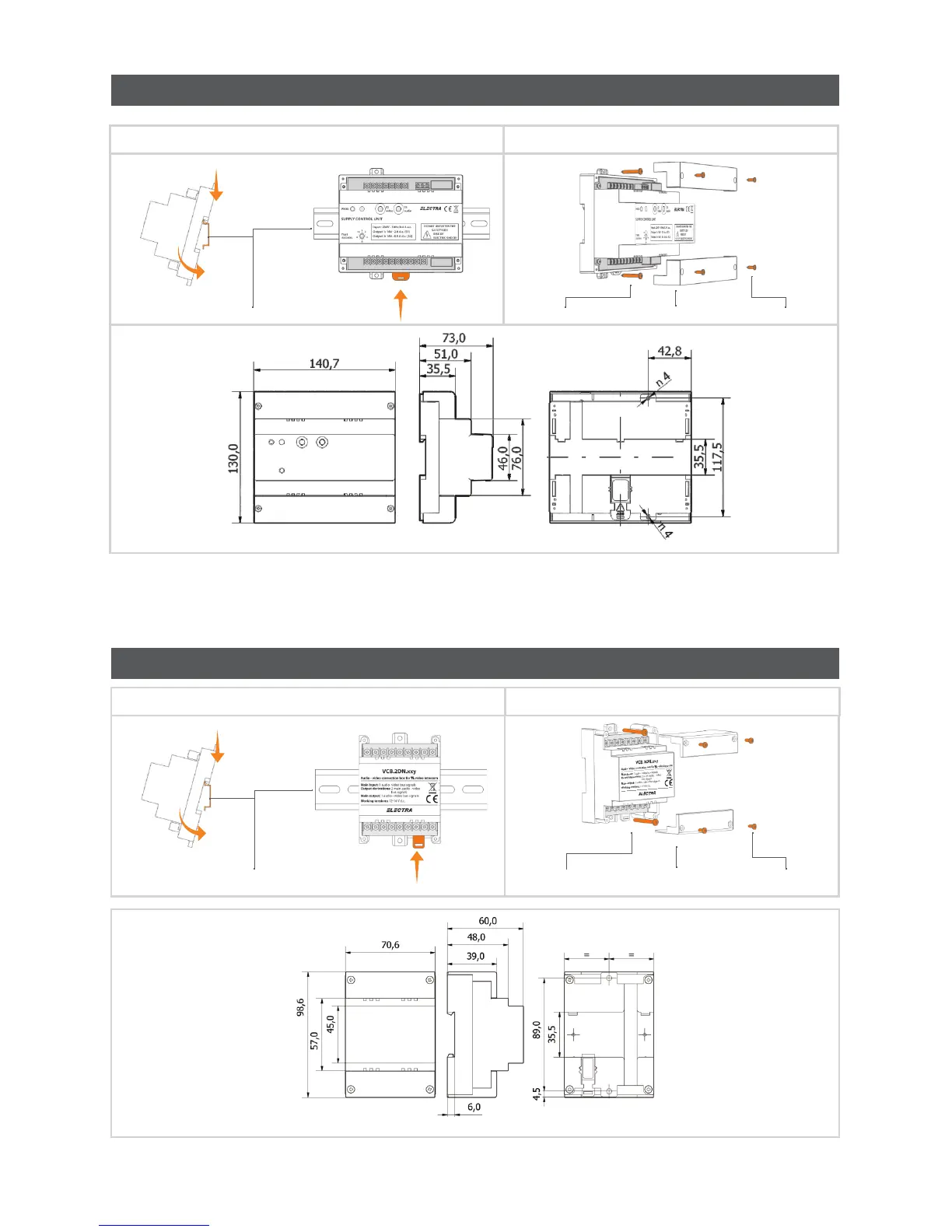

4.3 Installation of the Supply control unit
DIN rail mounting
Wall mounting
RetainerDIN rail
1
2
3
A3,5 x 32 screw (2 pcs.) B2,9 x 9,5 screw (4 pcs.)Protection lid (2 pcs.)
The accumulator will be connected to the terminals of the power supply, after the
commissioning of the system.
4.4 Installation of the Video connection box
Retainer
DIN rail
1
2
A3,5 x 32 screw (2 pcs.) B2,9 x 9,5 screw (4 pcs.)Protection lid (2 pcs.)
DIN rail mounting
Wall mounting
08
Frontal view Lateral view Back view
Frontal view
Lateral view
Back view
