09

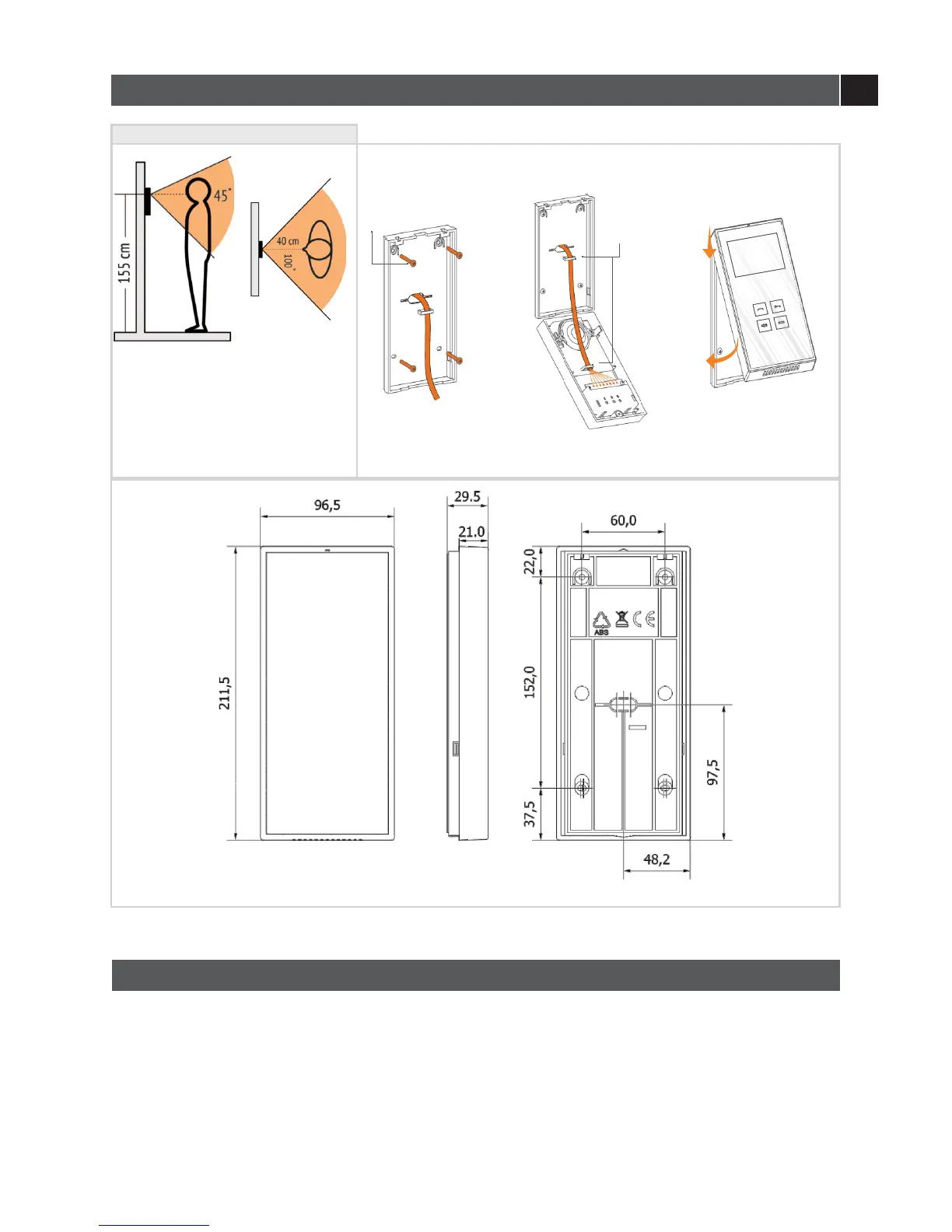

The terminal will be placed at the
155cm height (recommended height)
4.5 Installation of the video Terminal
Before starting...
1
2
A3,5 x 32(35) screw
(4 pcs.)
Cable retainers
– adapters
≈18 cm
Cable length
(from the wall)
4.6 Installation of the Outdoor panel
The Outdoor panel is installed at the entrance of the property or building, on the body closest
to the access door, at a height of approx. 1.7 m (upper part) from the ground, protected from
rain and sunrays.
Lateral viewFrontal view Back view
The Outdoor panel keys numbering is from the bottom up, the first key meaning address 1.
EN
