OPTIONAL ACCESSORIES
14-7SM PXD 1-E.3 GB
Installation Instruction for Electrical Heaters
( as shown on Kit )
Electric heating for
PXD 12 - 15 - 18 - 24 - 28 - 32
SX SP 9 - 12 - 15 - 18- -24 - 30
KIT DETAILS :
- 1 electric heater with wiring
- 2 metal supports + screws
- 2 screws to fix heater
- 1 foam insulation block
- 2 foam insulation squares
- 1 sticky back wiring diagram to place in the side panel above the unit
wiring diagram
- 1 configuration plug (heatpump = 243213 )
MAKE SURE THAT AIR CONDITIONER IS
DISCONNECTED FROM THE MAINS

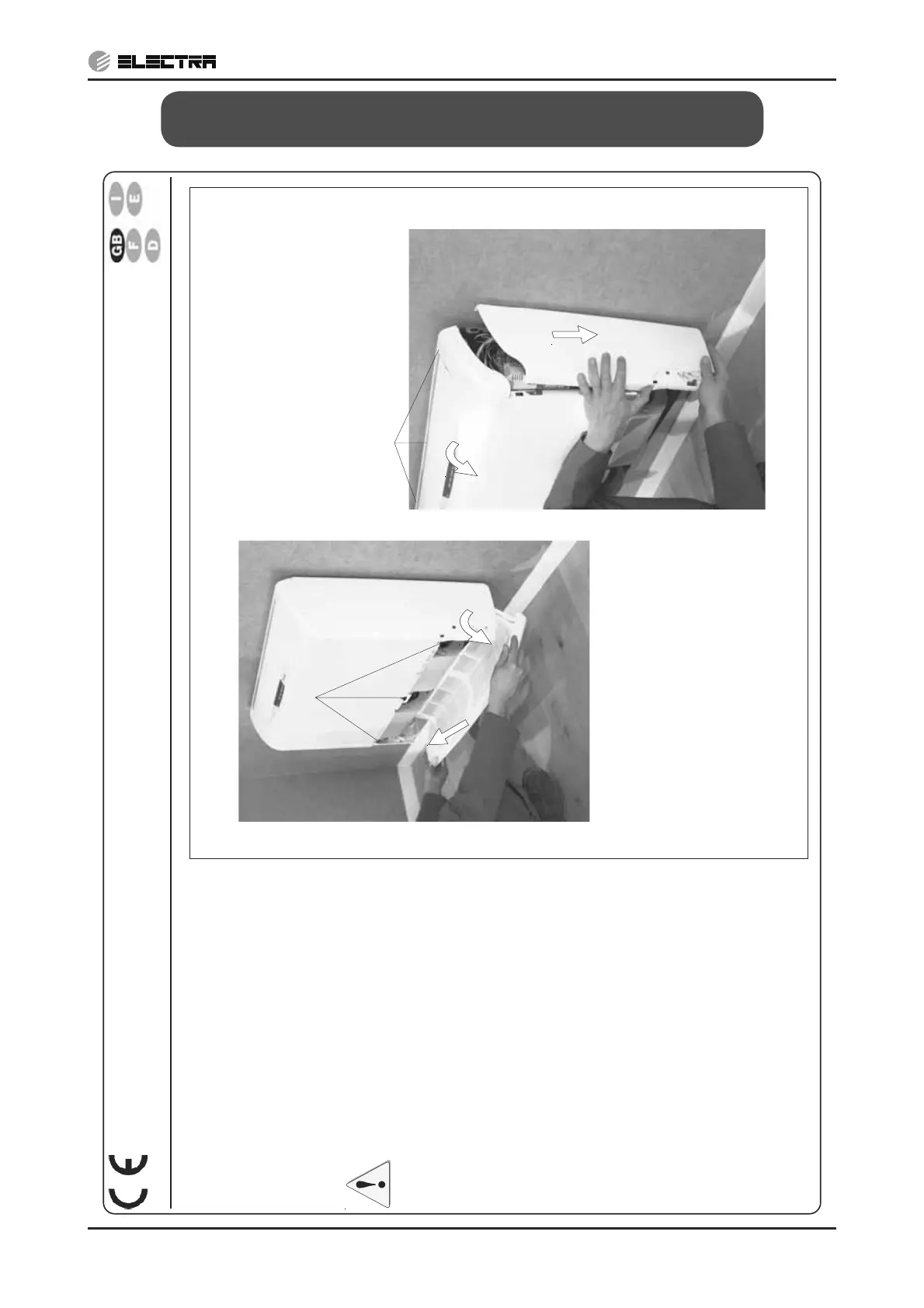

KIT INSTALLATION : (Fig.1)
1 Open the return air grille by pulling both edges
2 Remove the end screws
Unscrew the middle screw without removing it
3 Unhook the grille by pulling upwards
4 Remove the side panels by pulling down
5 Remove the 3 screws holding the unit top
6 Unhook the unit top
Disconnect the wires between the PXD and the top:
• Display cable (clear insulated cable).
• Vertical louver motor wires (red and blue with connectors).
• Horizontal louver motor wires (black).
Take care to separate the wire to help re-instalation.
Fig.1
1
2
3
4
5
6
TH 3263 E - 399529
To Next Page
