OPTIONAL ACCESSORIES
14-8 SM PXD 1-E.3 GB

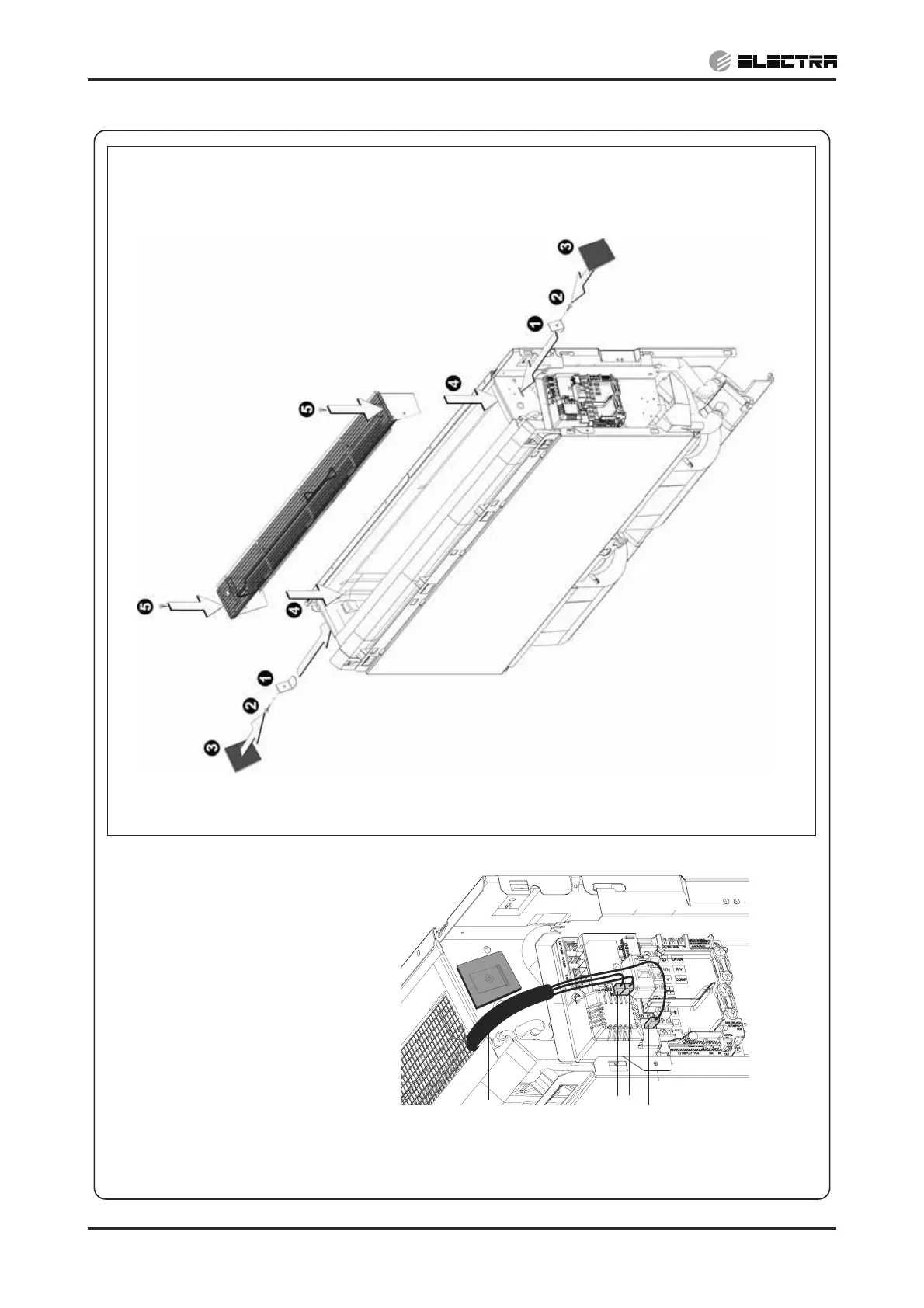

KIT INSTALLATION: (Fig.2)
1 Insert the metal support in the slots (push to break the polystyrene
behind the slot)
2 Fix the supports with the supplied screws
3 Cover the metal supports with the foam squares (to avoid air by-pass)
4 Slide the heater assembly into the PXD
5 Fix the heater assembly to the supports with the supplied screws
ELECTRICAL CONNECTIONS
- Place the wiring in the corner so that the unit top can be replaced
MODELS PXD 12 - 15 - 18 - 24 - 28 - 32
- Connect the wires with 6.35 connectors directly to the control board
as shown
Fig.2
wiring
Violet wire to HE2
Black wire to HE1
Blue wire to N'1
