Assembling the Scooter
after Transporting
Assembling the scooter
involves
lifting and handling heavy parts. The dealer
should advise you on the best way to assemble
the scooter.
Warning! Pinching or Crushing. Be careful to
avoid being pinched or having your hands
crushed when lifting or handling parts. Wear
gloves whenever possible.
Warning! Never unload the scooter on
sloping or uneven ground. It could run down the
slope cause harm and injure someone.
16

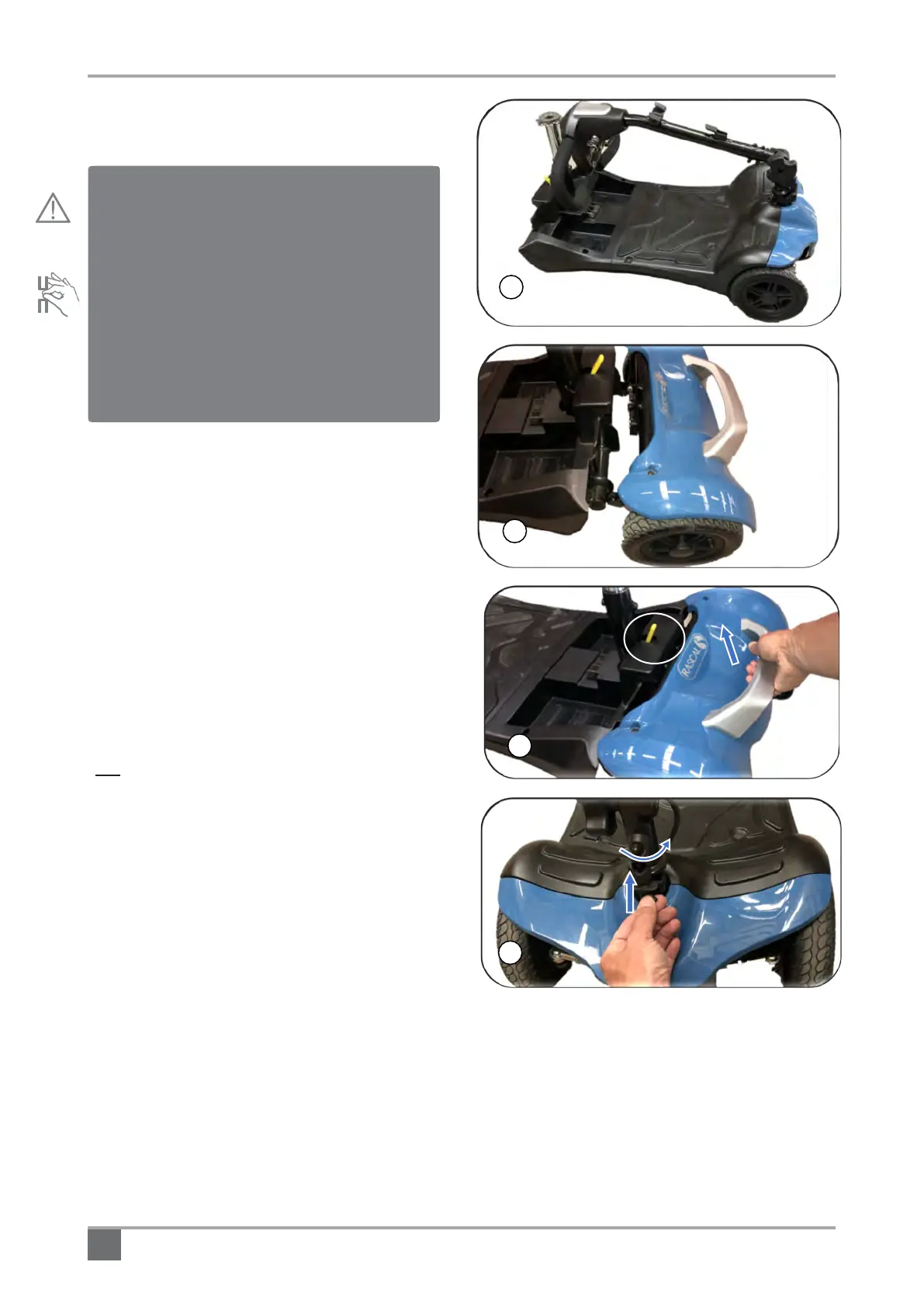

Unlock the steering position by lifting up the
yellow knob and then turn to right position and
release (Fig.22). See
Tiller Folding & Tiller Lock
section.
Re-connect the front and rear chassis sections
by reversing the procedure in the previous section.
(Fig.18 Pg.15). Align the front & rear section
attachments points - U-
section on the rear chassis
marked with red labels (Fig.20). When located then
pull up
on rear handle to lock mechanism. The
Release Lever will engage and move forward when
secured (Fig.21). If in doubt or having difficulty with
this feature then contact the dealer for assistance.
Lift the battery pack into position (Fig.14 Pg.15).
Replace the seat by squeezing the seat swivel
lever (Fig.13 Pg.15)
and lifting the seat into
position on the seat post,
the seat will drop into
position. Release the swivel lever and rotate the
seat until it locks in position. The seat should now
only swiv
el if the lever is compressed / squeezed.
Repeat this procedure if the seat fails to lock on the
first attempt. -
Never drive the scooter unless the
seat is properly installed and locked.
Fold the seat-back into the vertical position and
ensure that the armrests are correctly adjusted and
secured.
Fit the basket and lock in position by pushing
down on the top edge gently (Fig.15 Pg.15).
Rascal Vippi Scooter Owner’s Manual & Service Record
Lever
Unfold the tiller unit up by first loosening the
tiller wheel
(rotate anti-clockwise). Raise the tiller
to the desired position and then re
-tighten the
Tiller Folding & Tiller
section (Fig.19).
