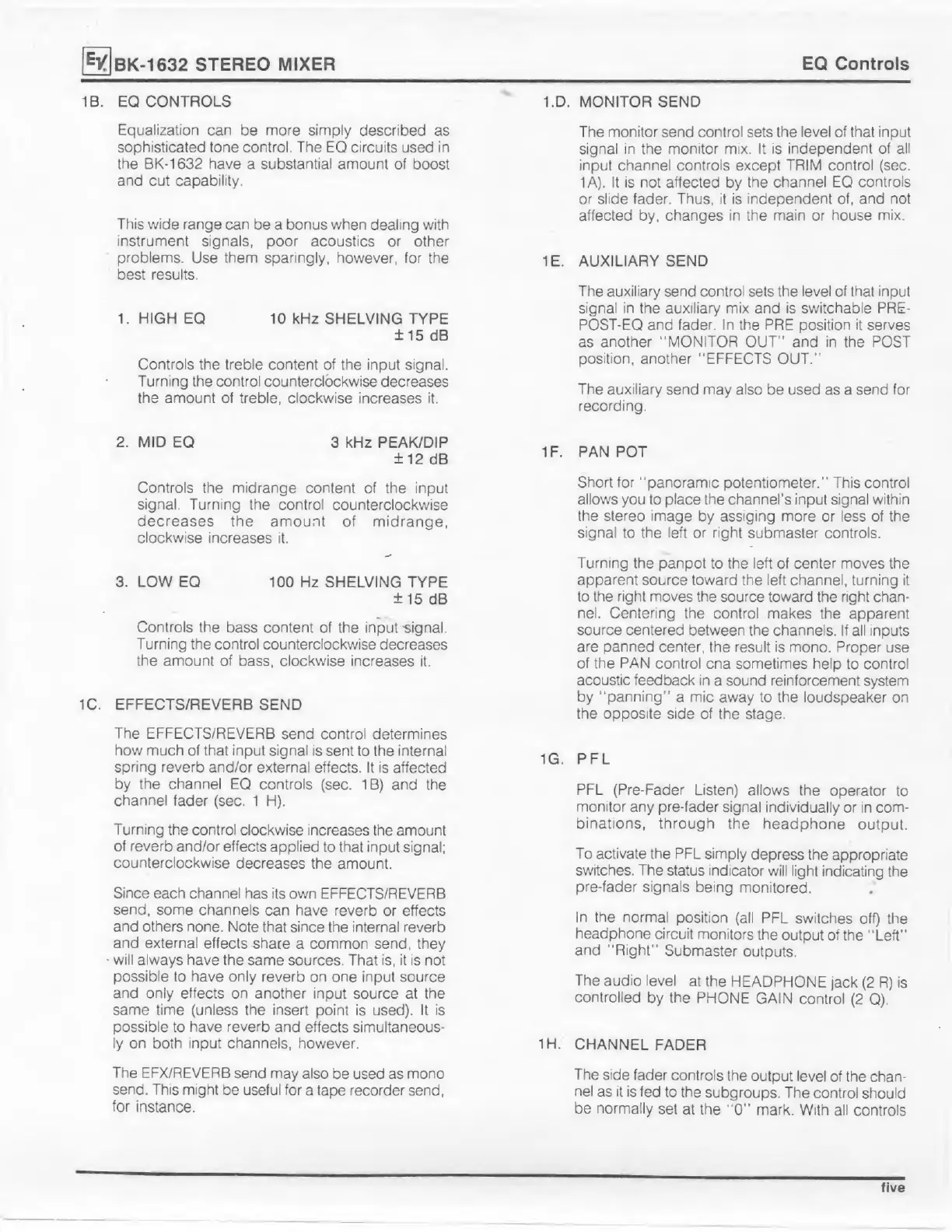

EQ
Controls
BK-1632
STEREO
MIXER
IB.
EQ
CONTROLS
Equalization
can
be
more
simply
described
as
sophisticated
tone
control.
The
EQ
circuits
used
in
the
BK-1632
have
a
substantial
amount
of
boost
and
cut
capability.
This
wide
range
can
be
a
bonus
when
dealing
with
instrument
signals,
poor
acoustics
or
other
problems.
Use
them
sparingly,
however,
for
the
best
results.
1.
HIGH
EQ
10
kHz
SHELVING
TYPE
±15
dB
Controls
the
treble
content
of
the
input
signal.
Turning
the
control
counterclockwise
decreases
the
amount
of
treble,
clockwise
increases
it.
2.
MID
EQ
3
kHz
PEAK/DIP
±12
dB
Controls
the
midrange
content
of
the
input
signal.
Turning
the
control
counterclockwise
decreases
the
amount
of
midrange,
clockwise
increases
it.
3.
L
O
W
EQ
100
Hz
SHELVING
TYPE
±15
dB
Controls
the
bass
content
of
the
input
signal.
Turning
the
control
counterclockwise
decreases
the
amount
of
bass,
clockwise
increases
it.
1C.
EFFECTS/REVERB
SEND
The
EFFECTS/REVERB
send
control
determines
how
much
of
that
input
signal
is
sent
to
the
internal
spring
reverb
and/or
external
effects.
It
is
affected
by
the
channel
EQ
controls
(sec.
IB)
and
the
channel
fader
(sec.
1
H).
Turning
the
control
clockwise
increases
the
amount
of
reverb
and/or
effects
applied
to
that
input
signal;
counterclockwise
decreases
the
amount.
Since
each
channel
has
its
own
EFFECTS/REVERB
send,
some
channels
can
have
reverb
or
effects
and
others
none.
Note
that
since
the
internal
reverb
and
external
effects
share
a
common
send,
they
will
always
have
the
same
sources.
That
is,
it
is
not
possible
to
have
only
reverb
on
one
input
source
and
only
effects
on
another
input
source
at
the
same
time
(unless
the
insert
point
is
used).
It
is
possible
to
have
reverb
and
effects
simultaneous¬
ly
on
both
input
channels,
however.
The
EFX/REVERB
send
may
also
be
used
as
mono
send.
This
might
be
useful
for
a
tape
recorder
send,
for
instance.
I.D.
MONITOR
SEND
The
monitor
send
control
sets
the
level
of
that
input
signal
in
the
monitor
mix.
It
is
independent
of
all
input
channel
controls
except
TRIM
control
(sec.
1A).
It
is
not
affected
by
the
channel
EQ
controls
or
slide
fader.
Thus,
it
is
independent
of,
and
not
affected
by,
changes
in
the
main
or
house
mix.
IE.
A
UX
I
L
I
A
R
Y
SEND
The
auxiliary
send
control
sets
the
level
of
that
input
signal
in
the
auxiliary
mix
and
is
switchable
PRE-
POST-EQ
and
fader.
In
the
PRE
position
it
serves
as
another
"MONITOR
OUT"
and
in
the
POST
position,
another
"EFFECTS
OUT."
The
auxiliary
send
may
also
be
used
as
a
send
for
recording.
IF.
PAN
POT
Short
for
"panoramic
potentiometer.”
This
control
allows
you
to
place
the
channel's
input
signal
within
the
stereo
by
assiging
more
or
less
of
the
signal
to
the
left
or
right
submaster
controls.
Turning
the
panpot
to
the
left
of
center
moves
the
apparent
source
toward
the
left
channel,
turning
it
to
the
right
moves
the
source
toward
the
right
chan¬
nel.
Centering
the
control
makes
the
apparent
source
centered
between
the
channels.
If
all
inputs
are
panned
center,
the
result
is
mono.
Proper
use
of
the
PAN
control
cna
sometimes
help
to
control
acoustic
feedback
in
a
sound
reinforcement
system
by
"panning"
a
mic
away
to
the
loudspeaker
on
the
opposite
side
of
the
stage.
IG.
PFL
PFL
(Pre-Fader
Listen)
allows
the
operator
to
monitor
any
pre-fader
signal
individually
or
in
com¬
binations,
through
the
headphone
output.
To
activate
the
PFL
simply
depress
the
appropriate
switches.
The
status
indicator
will
light
indicating
the
pre-fader
signals
being
monitored.
In
the
normal
position
(all
PFL
switches
off)
the
headphone
circuit
monitors
the
output
of
the
"Left"
and
"Right"
Submaster
outputs.
The
audio
level
at
the
HEADPHONE
|ack
(2
R)
is
controlled
by
the
PHONE
GAIN
control
(2
Q)
IH.
CHANNEL
FADER
The
side
fader
controls
the
output
level
of
the
chan¬
nel
as
it
is
fed
to
the
subgroups.
The
control
should
be
normally
set
at
the
"0"
mark.
With
all
controls
five
