Owners Manual

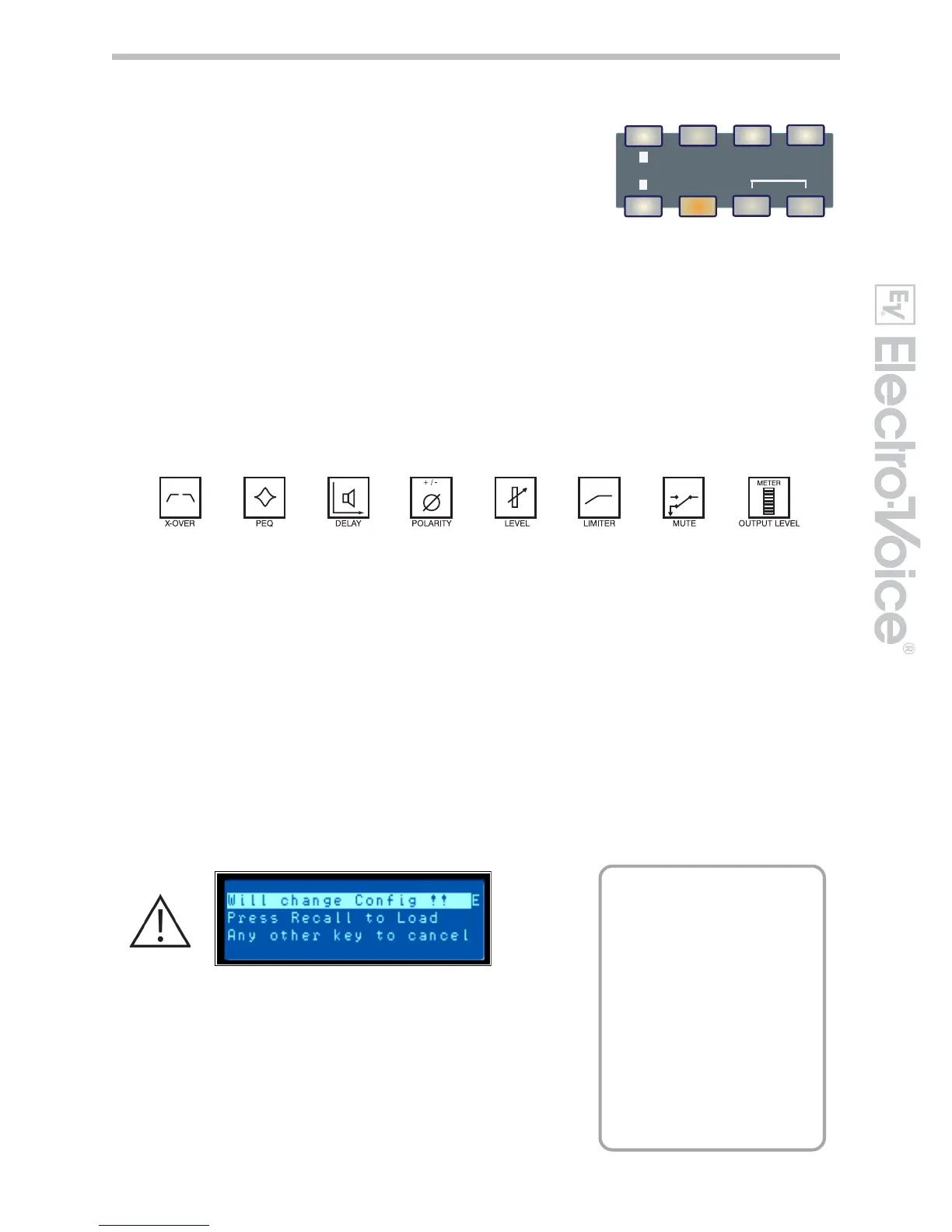

Configurations of the DC-One
The DC-One offers 7 pre-defined configurations. A
configuration is a basic setting that includes the
routing of inputs and outputs, the function of the
outputs (Sub, Lo, Mid, Hi, Full Range) including basic
x-over filter settings, and different channel/
parameter linking schemes.
The active configuration is defined by the selected program i. e., each program is
based on a specific configuration which is also displayed next to the program
number and program name.
Each output employs two X-Over filters that can be assigned to a variety of filter
types and slopes. Each output channel provides 5 additional filters which can be
used as parametric EQs, Low- / High-shelving filters, or Lo-Pass and Hi-Pass
filters, and also as All-Pass filters. In addition to a gain control for adjusting the
output level and a polarity switch, each output is monitored by a digital limiter
with adjustable threshold, attack and release.
List and Detailed Descriptions
· 2 Way Stereo + FR
· 3 Way Stereo
· 4 Way + FR
· 5 Way + FR
· Free Configuration - Full Edit 2 in 6 Out
· 3 Way Stereo - Mono Sub + FR
· 4 Way Stereo - Mono Sub+ LF
>
Recall
<
Edit
>
Setup
>
COMPARE SELECT
VALUE
Store
Please use caution when changing
configurations
Note: Not all parameters may
be accessible
in every preset
and, depending on the
configurations set by the
contractor/installer, not all
presets and/or preset values
may be available for editing.
Changes to preset availability,
parameter availability and
preset value ranges can only
be set using the DC-One
Editor PC application. See
DC-One GUI Quick Start
Guide.
