Electro-Voice Speaker System - Stereo 2 Way + Full Range

38
Stereo 2 Way + Full Range

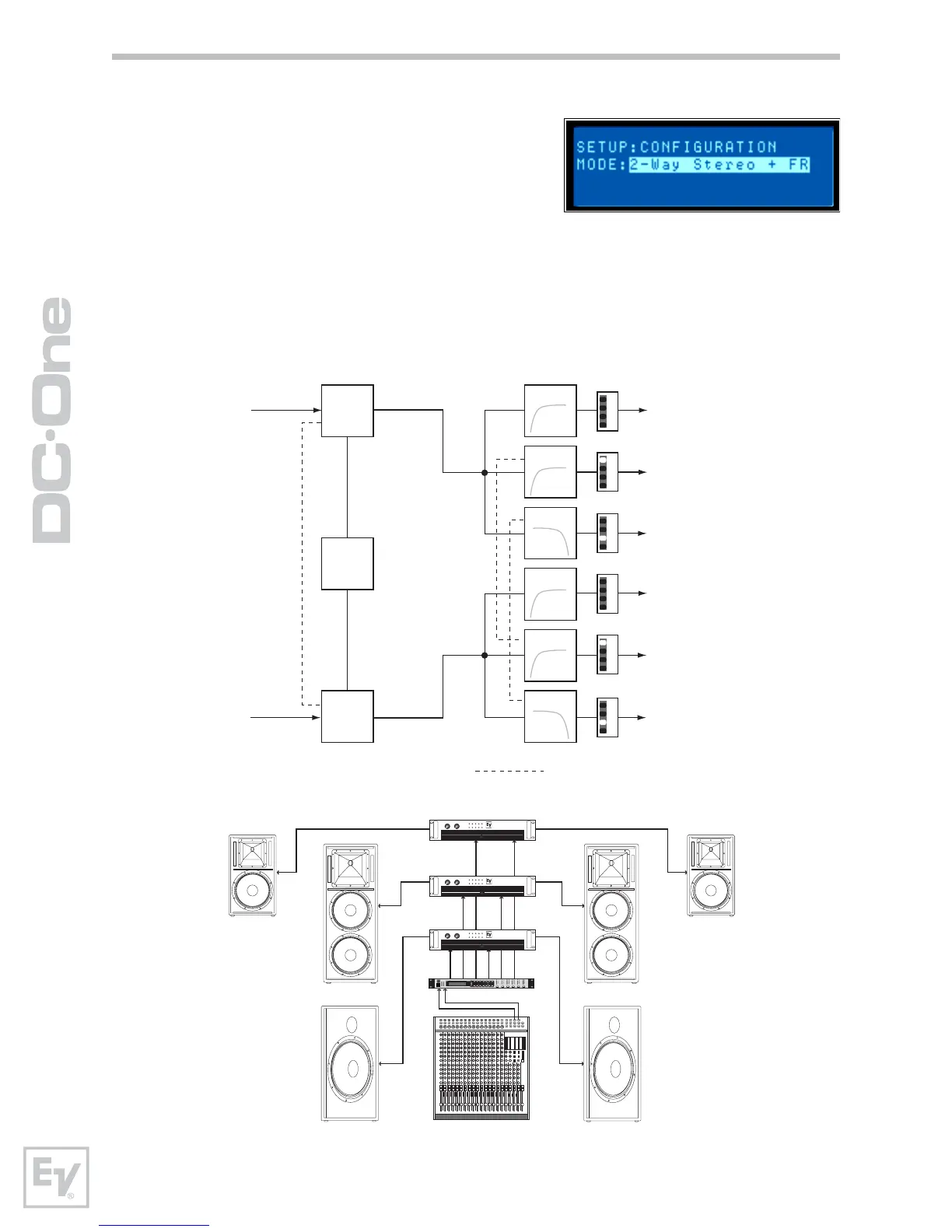

This configuration generally represents a
2-way stereo frequency crossover, where
IN A serves as the left input channel and
IN B as the right input channel. OUT 1 is
the left Low-frequency output and OUT 2
is the left High-frequency output. OUT 4
and OUT 5 are the corresponding right
Low-frequency and High-frequency output channels.
Note: On Input channels, all Parametric EQ and Graphic EQ parameters
are linked. For Output channels, linking applies to Crossovers, EQ, Delay
Level and Limiter.
