Introduction
Thank you for purchasing the Electro-Voice
DC-One Digital Signal Processor.
The Electro-Voice DC-One Digital System
Processor is a universal two-input, six-output
digital signal processor with the flexibility of
configuration to handle a multitude of audio
system needs and applications; installed sound,
house of worship, convention & meeting facilities,
concert touring, club, portable sound
reinforcement and more.
DC-One Features
The internal routing matrix can be configured as 2-way stereo + full-range, 3-way
stereo, 4-way mono + full-range, 5-way mono + full range, 3-way stereo with a
mono sub + full-range, 4-way stereo with mono sub and low frequency and finally
as a freely assignable 2 x 6 matrix router.
The DC-One replaces entire racks of signal processors previously needed to
properly configure and control sound reinforcement systems with a single
Analog Devices® SHARC™ DSP processor. The substantial advantages of the
DC-One over discrete signal processing racks include:
• 24-bit, 48kHz digital signal path
• No patch cables to fail or add noise
• Optimal gain structure throughout all stages of signal processing;
no gain matching from processor to processor.
• Recallable factory and user presets; instant system reconfiguration
for differing applications and performances.
• Easy, intuitive operation and editing with a PC and the DC-One
Graphic User Interface Application.
Each DC-One Digital System Processor includes the following signal
processing blocks:
• Input VU Metering
• Analog or AES/EBU inputs
• 24-bit, 48kHz A/D converters
• Stereo Hi-pass filters
• Stereo 9-band parametric equalizer
• Stereo 31-band graphic equalizer (available as a software add-on
with V1.1 firmware-see www.electrovoice.com for details)
• Stereo delay
DelayGEQ
PEQ
Level
Delay
PEQ
HPF
>
X-OverRecallStore
<
Edit
>
Setup
Mute
Mute
Mute Mute
Mute
Mute
>

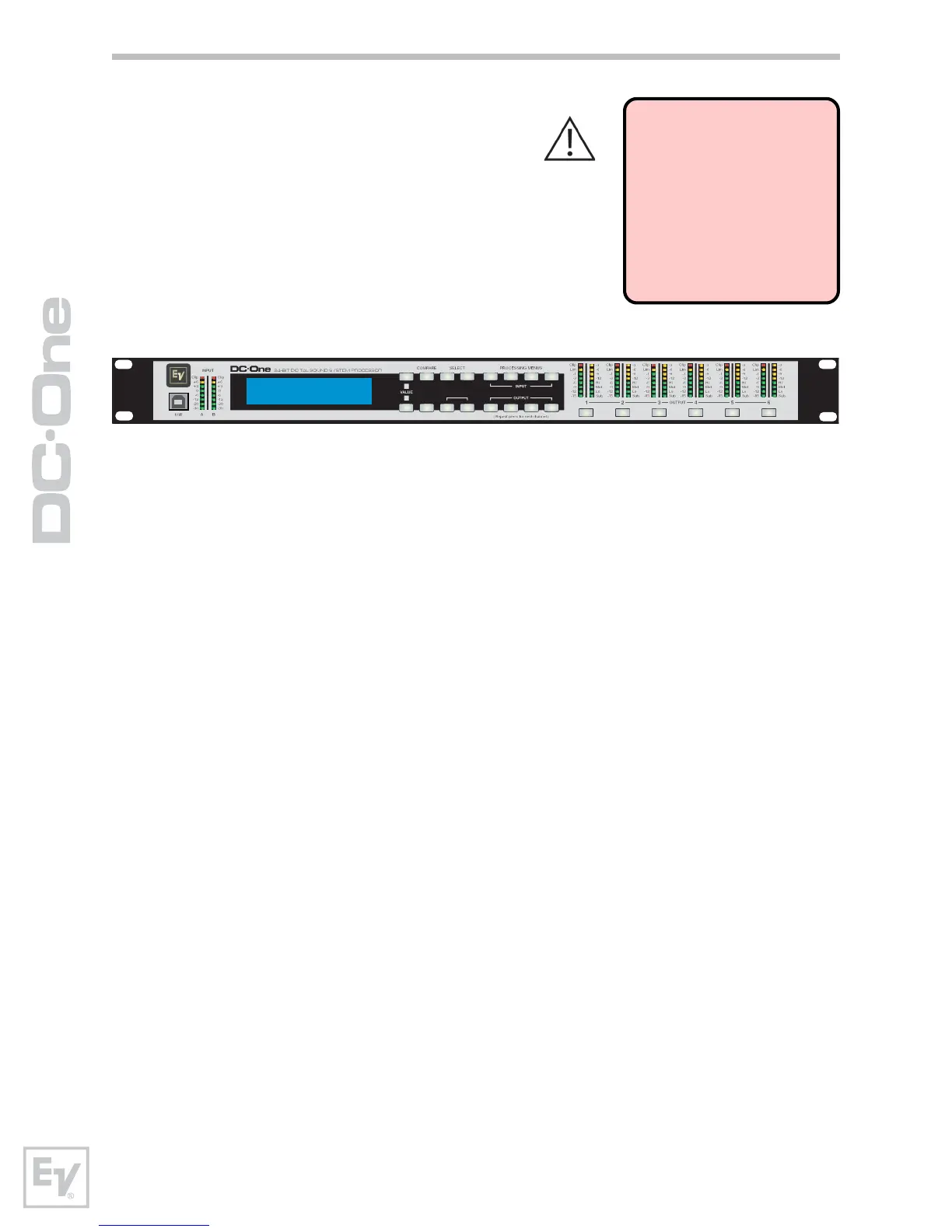

Electro-Voice DC-One
Program:U01
(FullEdit (2in. 6out))
IMPORTANT NOTE
To achieve optimum perfor-
mance and guard against
damage to the processor,
your sound system or your-
self, please read, understand
and follow all of the direc-
tions contained in this
Owner’s Manual. Failure to
do so may result in improper
performance, loss or injury.
