electroil IMTPD2.2 M - Wall Mounting Inverter Case and Fixing Dimensions

9 IMTP(D) 2.2 – ITTP(D) 2.2/4.0/5.5/7.5 - ELECTROIL ENG

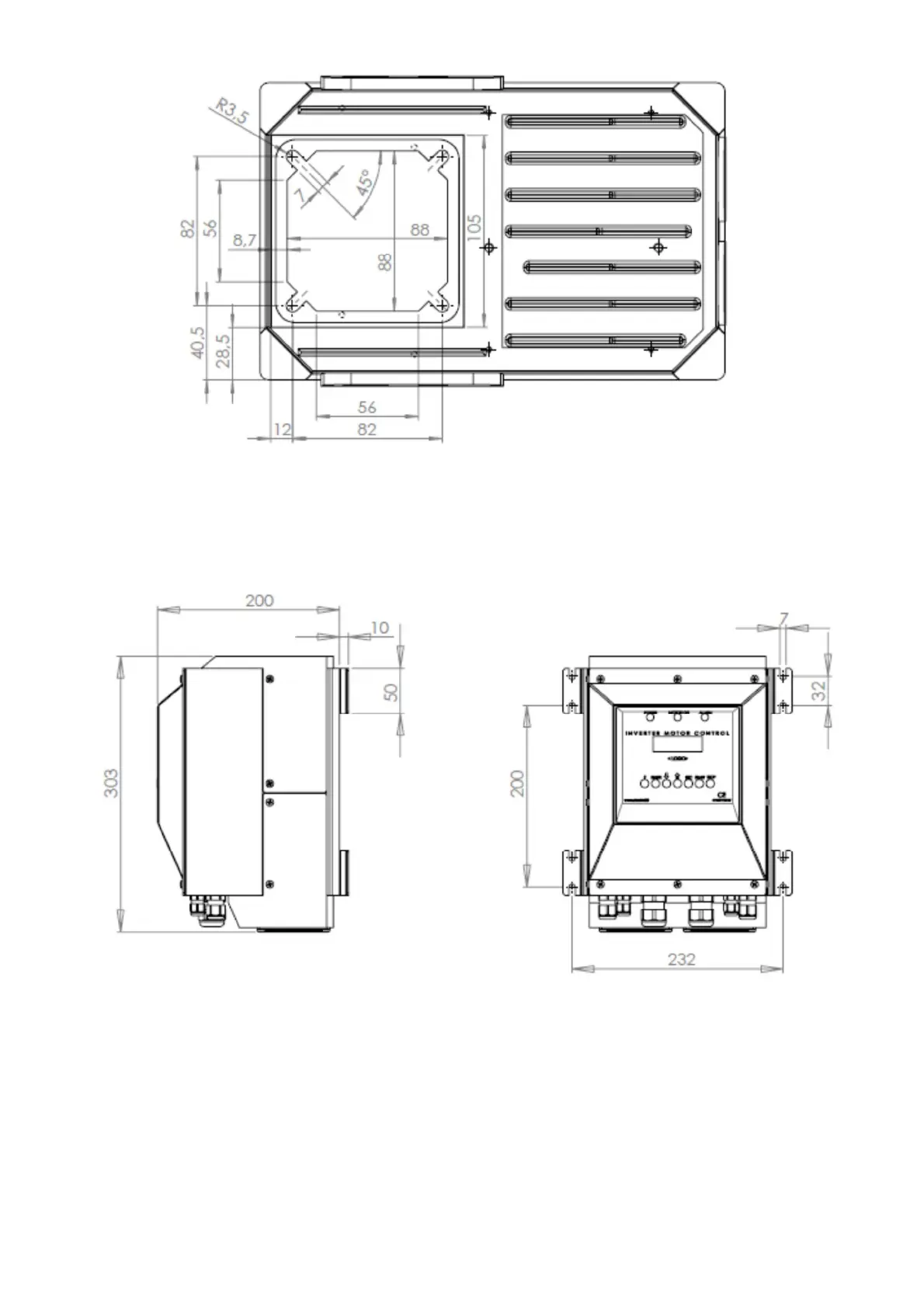

Figura 8: Fixing dimensions for ITTP(D) 4.0-5.5 M fixing type M132
5.2 Case and fixing dimensions for wall mounting inverters
Figura 9: Dimensioni e quote di fissaggio a parete for ITTP(D) 4.0-5.5-7.5 W
