Ice Maker (Freezer Compartment)
4-37
YELLOW
YELLOW
YELLOW

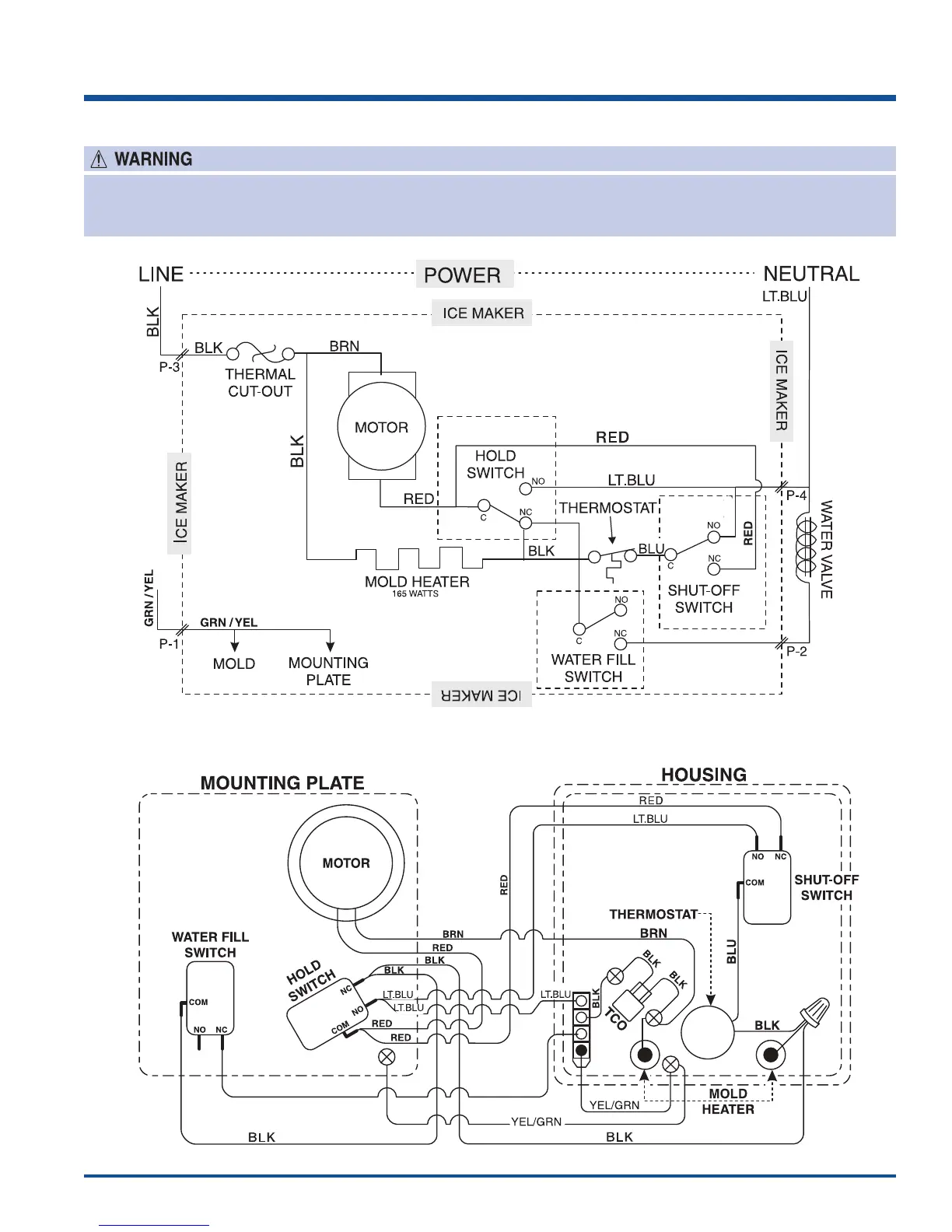

Freezer Compartment Ice Maker Electrical System
The Ice Maker mounted in the freezer compartment is NOT a Mid-South Ice Maker. Use the schematic
below for servicing the Ice Maker.
