2010 dmm 8/96 599 73 68-54
3 SERIES 7
3.1 General characteristics
The EWM10931 electronic control system consists of two circuit boards plus the motor control system (inverter).

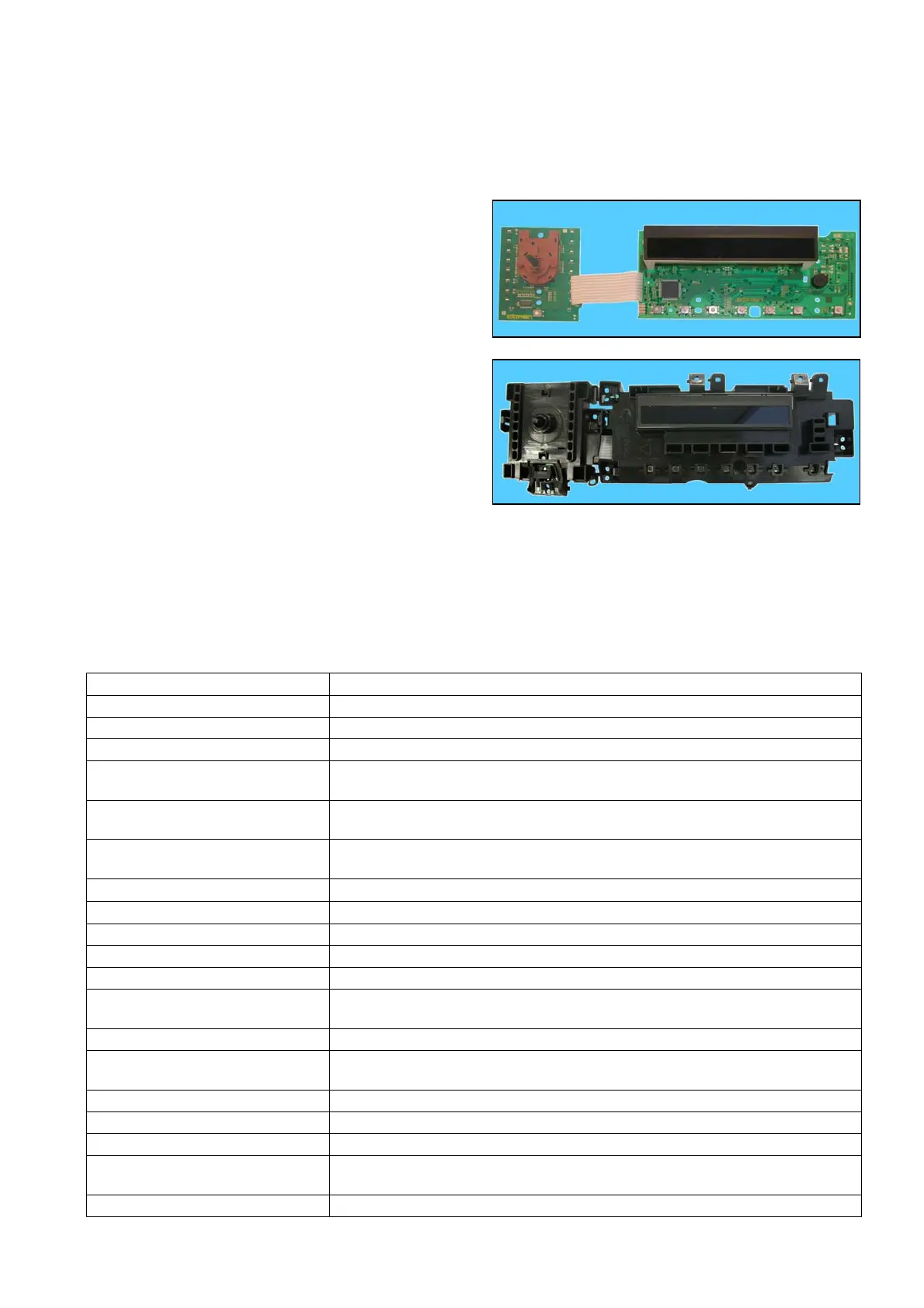

ª The control/display circuit board, inserted in a plastic
box, secured to the control panel (the figure illustrates:
the display circuit board with the side support plate onto
which the selector is secured, connected to one another
by a flat cable and the display circuit board assembly).
ª The main circuit board is positioned at the rear of the appliance and powers the electrical components as well
as communicating with the motor control board (Inverter) and receiving commands from the display board.
No. buttons
maximum 8 (6 options + start/pause + ON/OFF)
No. LEDs
maximum 20 + LCD
Programme selector
16 positions (incorporated in the circuit board)
Serial port
DAAS-EAP communication protocol up to 115,200 baud
Power supply voltage
220/240 V
50/60 Hz (configurable)
Washing type
Traditional with “Eco-ball” sphere
Jet-System
Rinsing system
Traditional with “Eco-ball” sphere
Jet-System
Motor
Two-pole asynchronous (three-phase), with tachometric generator
Spin speed
400 ÷ 1,600 rpm
Anti-unbalancing system
AGS
Cold water filling
1 solenoid valve with 1 inlet – 2 or 3 outlets
Hot water filling
1 solenoid valve with 1 inlet – 1 outlet
Detergent dispenser
3 compartments: prewash/stains, wash, fabric softeners
4 compartments: prewash, wash, stain remover and conditioners.
Control of water level in the tub
Electronic/analogue pressure switch
Door safety interlock
Traditional (with PTC)
Instantaneous
Heating element heat output
1950 W with thermal fuses incorporated
Temperature control
NTC probe incorporated in the heating element
Buzzer
Traditional incorporated in the PCB
Sensors
Water fill gauge (flowmeter from 2 ÷ 12 l/m)
Aqua control
Drum light
LED
