Page 58 RESI219

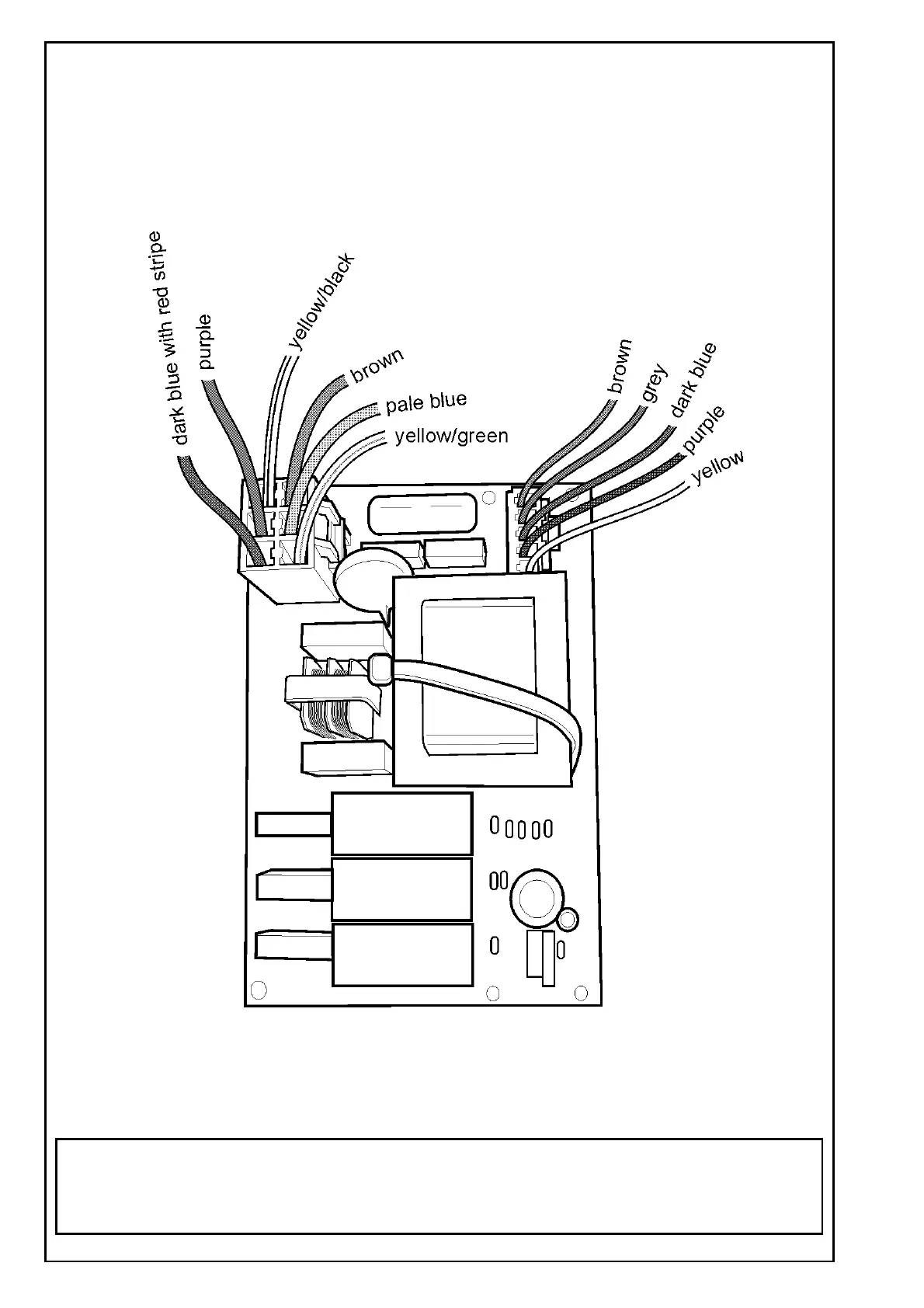

MODELS: WSE6070PB *06 RELAY BOARD
WSE6070SB *06 WIRING DIAGRAM R914
WSE6070WB *06
IMPORTANT SAFETY NOTICE
This diagram has been prepared for use by electrically qualified service technicians. Electrolux cannot be
held responsible for the interpretation of its service publications nor for any injury or damage that may occur
in connection with their use.
