Instructions for the Installer
The instructions given below are
designed specifically for a
qualified installer and should aid
him or her to perform all
installation, adjustment, and
maintenance operations with
absolute precision and in
compliance with all current
legislation and regulations. We
strongly recommend that all
operations for the installation of
your appliance be carried out by
Qualified Personnel in
accordance with existing rules
and regulations.
Electrical connection
Prior to making the electrical connection,
make sure that:
— the protection fuse and the domestic
wiring system are suitable to carry the
total electric load of the oven (see rating
plate);
— your domestic wiring system has an
efficient earth connection in compliance
with rules and laws in force;
— the wall socket or the omnipole switch
used for the electrical connection can
easily be reached after the oven is built
in.
This appliance is delivered with an electric
supply cable.
A proper plug, according to the electric load
specified on the rating plate, must be fitted
to the cable. The plug is to be inserted into
a suitable wall socket. If you require a direct
connection to the electric network (mains),
it will be necessary to fit between the
appliance and the mains an omnipole switch,
with a minimum gap between contacts of 3
mm, suitable for the required load and in
compliance with rules in force. The green &
yellow ground wire must not be interrupted
by the switch and it should be 2-3 cm. longer
than the other cables. The supply cable must
in all cases be laid out in such a way as to
ensure that it does not reach at any given
point a temperature 50°C higher than the
ambient temperature.
Suitable power supply cables are the
following types, considering the respective
necessary section of cable: H07 RN-F, H05
RN-F, H05 RR-F, H05 VV-F, H05 V2V2-F
(T90), H05 BB-F.

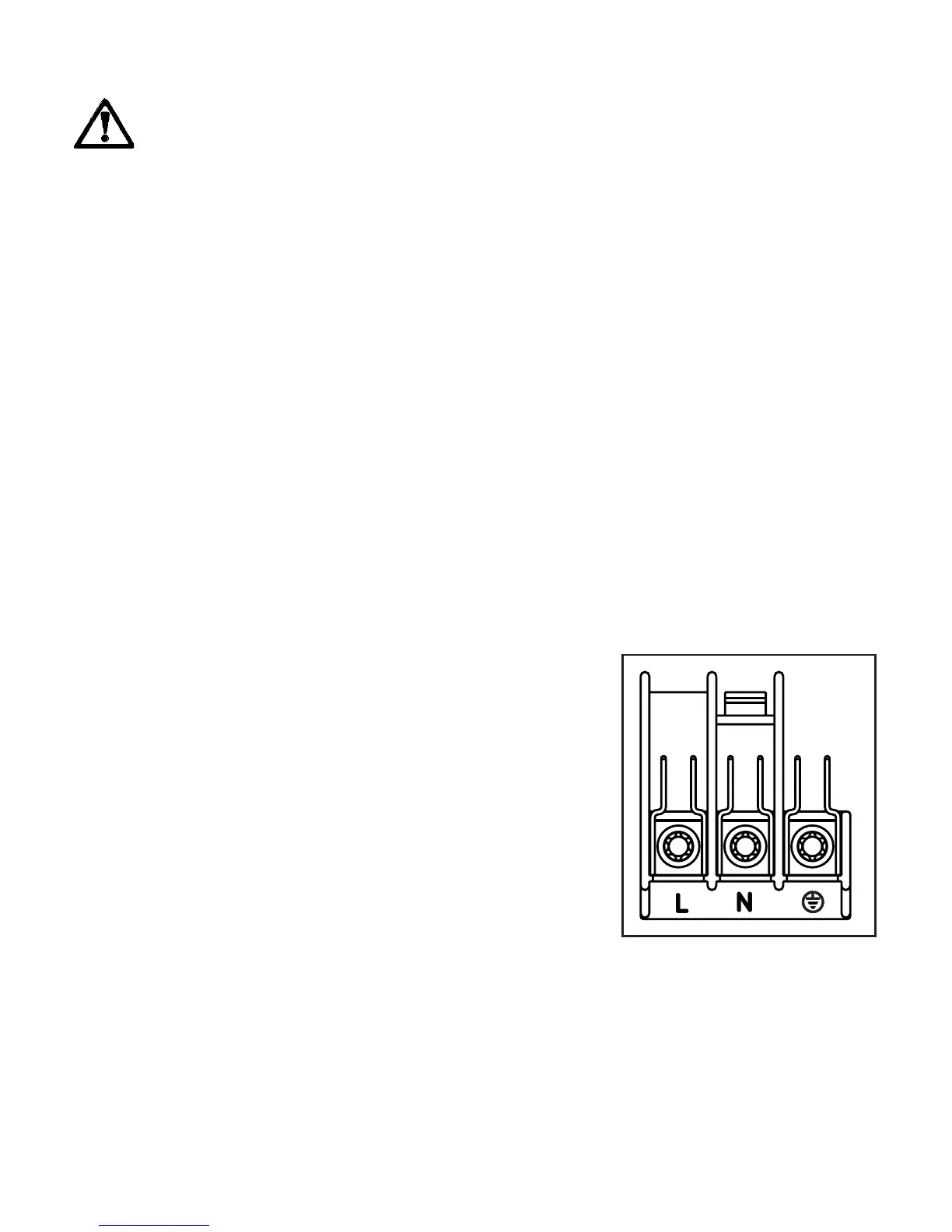

Terminal block
The oven has an easily accessible terminal
block, which is meant to work with an
electric single-phase rate of 230 V (Fig. 14).
The Manufacturer disclaims any liability
in case these accident-preventing rules
are not observed.
Fig. 14
