Electrolux Compass Pro WS6-8 - Ws6-20

10
Installation manual
3.1.3 WS6–20
A
1
2
C
3
H
L
K
I
J
P
G
6
4
F
9
N
M
O
7
5
E
B
D2
D1
11
8
10

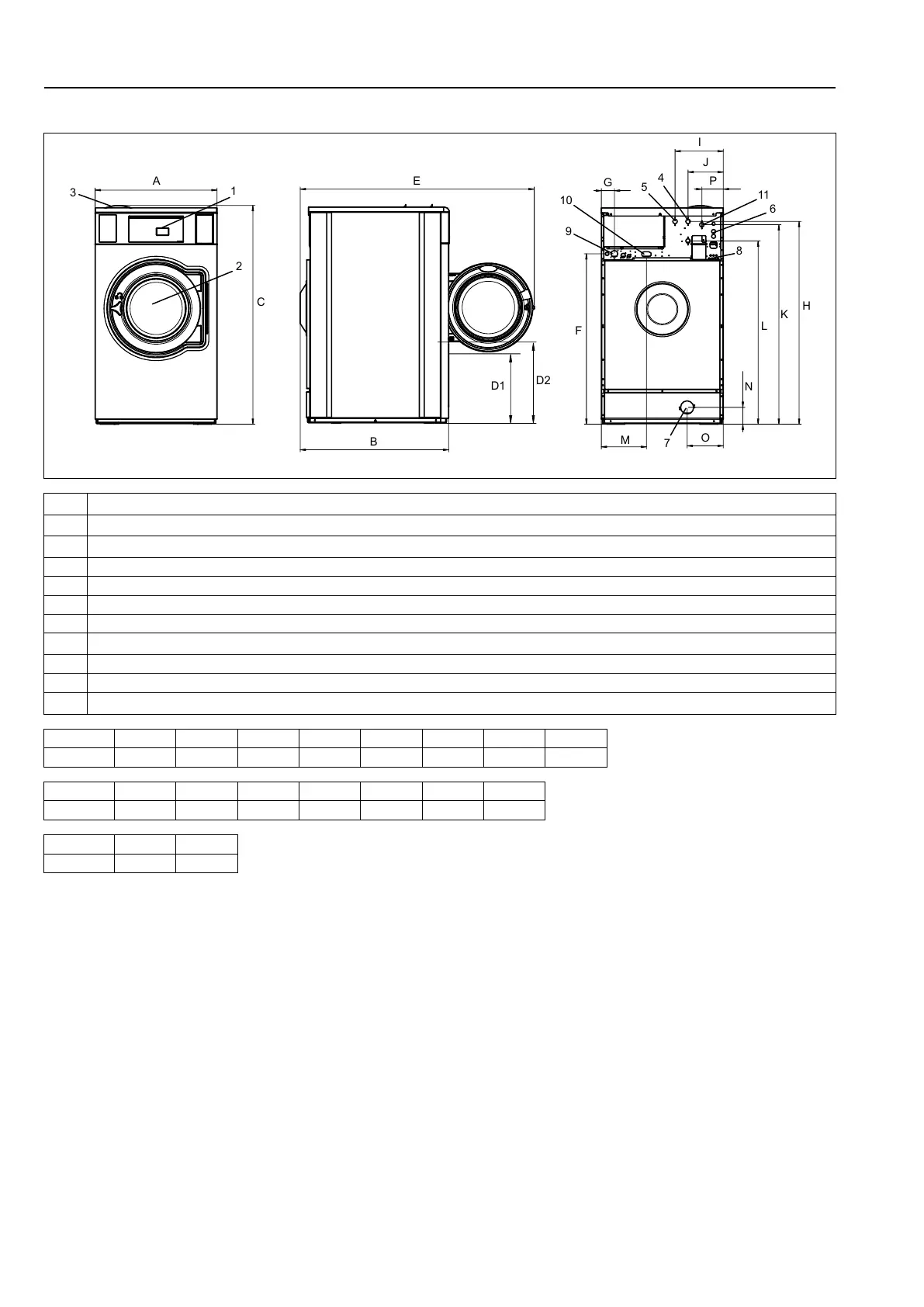

fig.X01721
1 Operating panel
2 Door opening, WS6–20: ⌀ 395 mm
3 Detergent container
4 Cold water
5 Hot water
6 Re-used water
7 Drain valve
8 Liquid detergent supply
9 Electrical connection
10 Steam connection
11 Cold water (for detergent container) / Hot water
mm
A B C D1 D2 E F G
WS6–20 750 915 1345 440 515 1435 1050 80
mm
H I J K L M N
WS6–20 1245 295 215 1225 1125 280 105
mm
O P
WS6–20 225 130
