Installation manual
3 Technical data

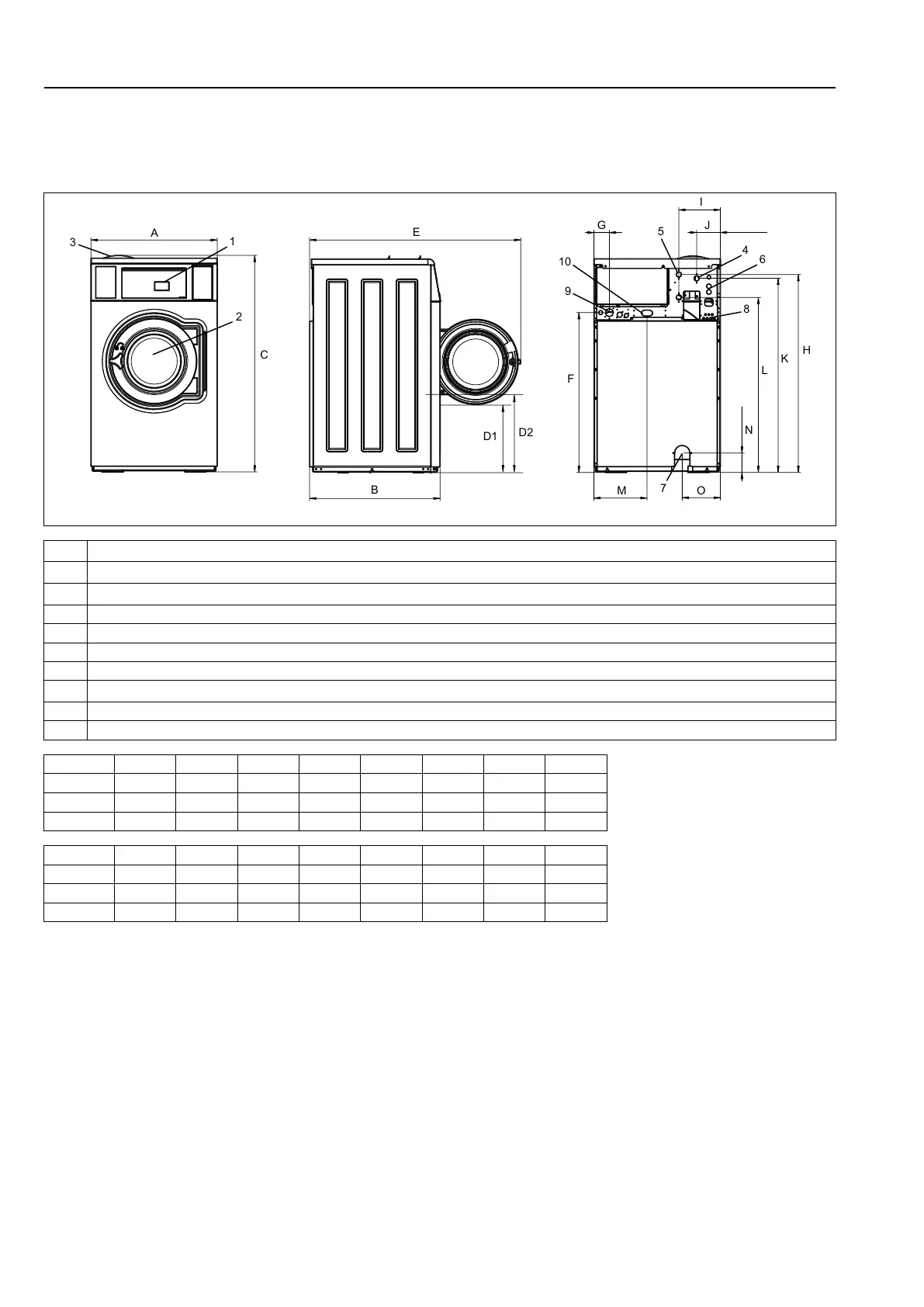

3.1 Drawing
3.1.1 WS6–8, WS6–9, WS6–11
A
1
C
2
3
H
L
K
I
JG
6
4
9
10
F
M
O
7
N
8
5
E
B
D2
D1
fig.X01719
1 Operating panel
2 Door opening, WS6–8, WS6–9: ⌀ 310 mm, WS6–11: ⌀ 365 mm
3 Detergent container
4 Cold water
5 Hot water
6 Re-used water
7 Drain valve
8 Liquid detergent supply
9 Electrical connection
10 Steam connection
mm
A B C D1 D2 E F G
WS6–8 660 680 1135 360 425 1110 835 80
WS6–9 660 725 1135 360 425 1150 835 80
WS6–11 720 700 1220 370 440 1185 920 80
mm
H I J K L M N O
WS6–8 1035 215 125 1015 915 280 100 200
WS6–9 1035 215 125 1015 915 280 105 200
WS6–11 1120 215 125 1100 1000 280 105 210
