Electrolux Compass Pro WS6-8 - Ws6-28, Ws6-35

Installation manual
11

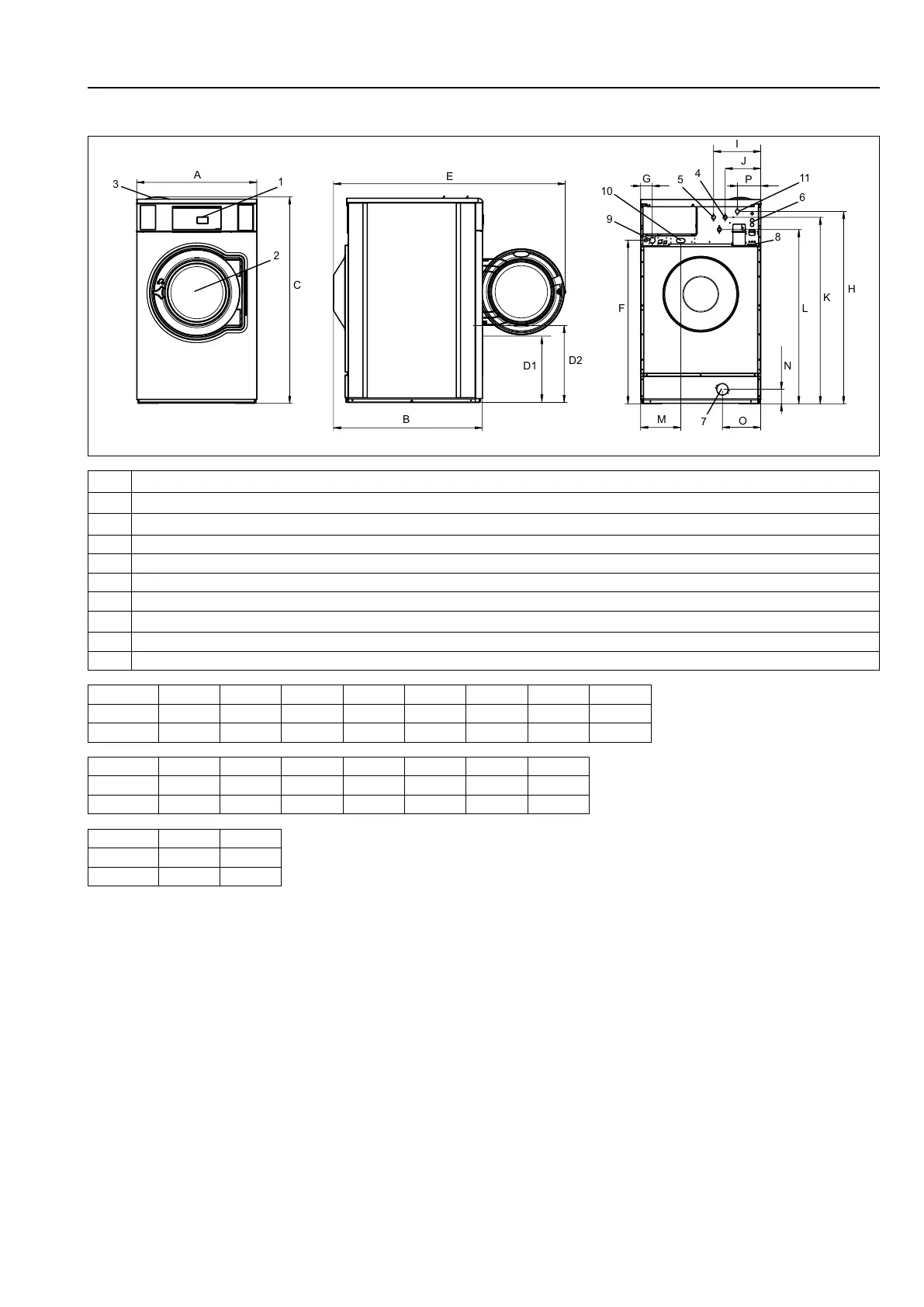

3.1.4 WS6–28, WS6–35
3
A
1
2
C
I
J
P
G
5
4
6
8
H
L
K
N
7
M
O
F
9
10
E
D2
B
D1
11
fig.X01722
1 Operating panel
2 Door opening, WS6–28, WS6–35: ⌀ 435 mm
3 Detergent container
4 Cold water
5 Hot water
6 Re-used water
7 Drain valve
8 Liquid detergent supply
9 Electrical connection
10 Steam connection
mm
A B C D1 D2 E F G
WS6–28 830 1030 1430 470 550 1590 1135 80
WS6–35 910 1115 1465 505 585 1675 1170 80
mm
H I J K L M N
WS6–28 1330 325 245 1290 1205 280 105
WS6–35 1365 345 245 1325 1245 280 105
mm
O P
WS6–28 265 160
WS6–35 210 160
