8 Drain connection
Connect a 75 mm pipe or rubber hose to the machine’s drain pipe, ensuring a downward flow from the machine.
Avoid sharp bends which may prevent proper draining.

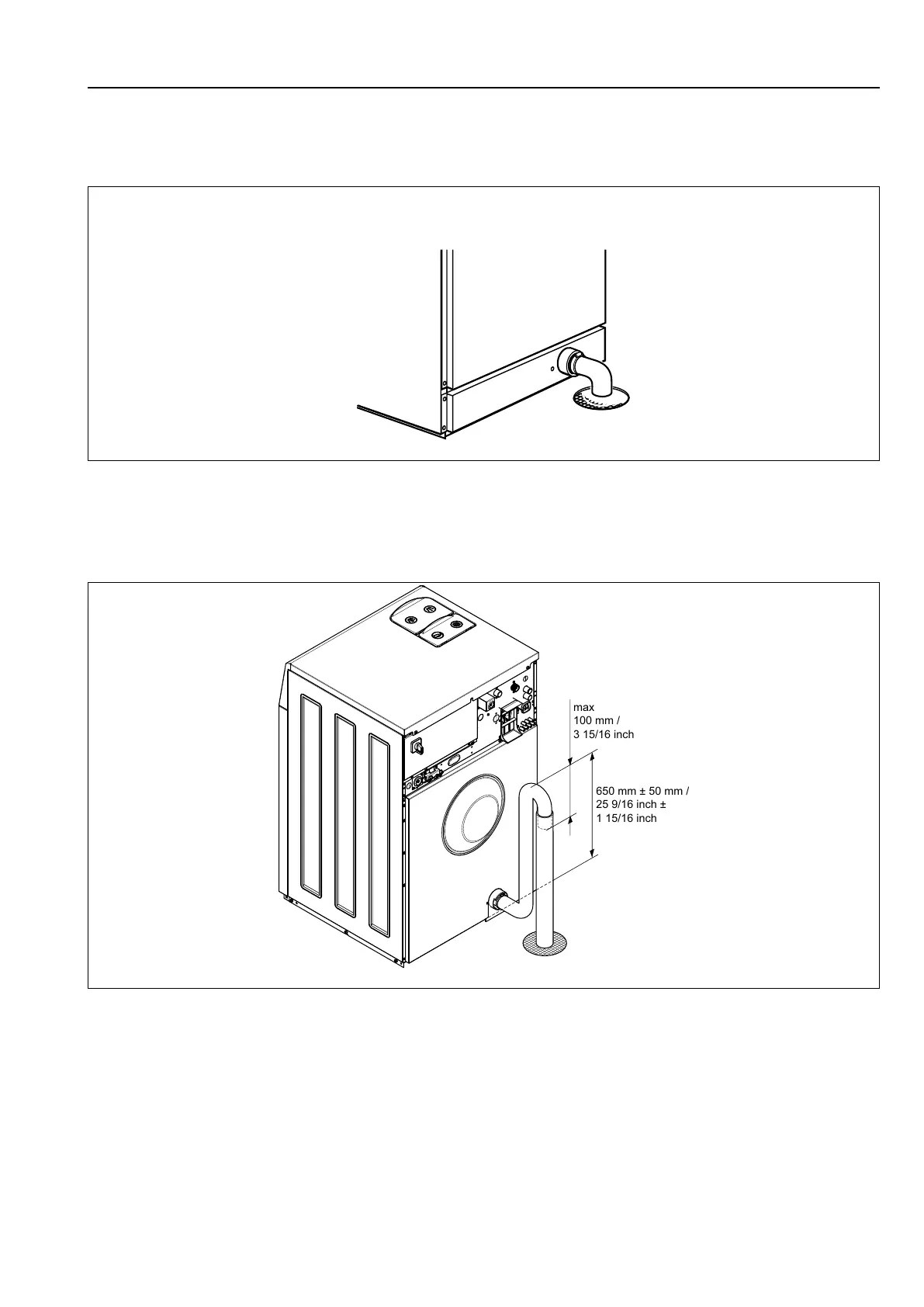

fig.5330
Drain pump (for models WS6–8, WS6–9, WS6–11)
The drainage pipe should be located over a floor drain, drainage channel or the like.
The highest part of the drain hose shall be positioned according to the figure.
Make sure there is no kinks in the hose.
max
100 mm /
3 15/16 inch
650 mm ± 50 mm /
25 9/16 inch ±
1 15/16 inch
fig.X02458
