Electrolux Compass Pro WS6-8 - Ws6-14

Installation manual
9

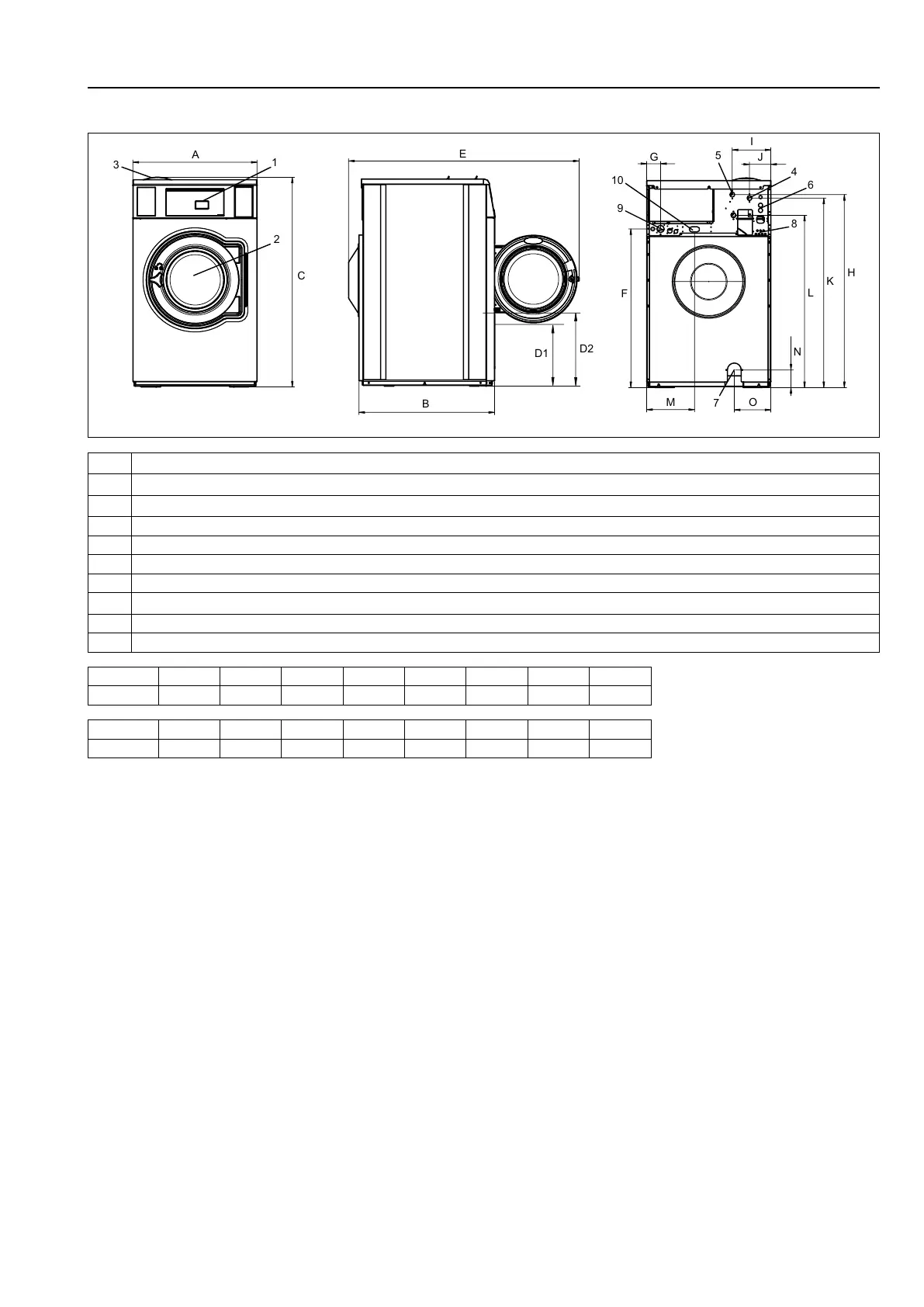

3.1.2 WS6–14
A
3
1
C
2
H
L
K
I
J
G
6
4
9
10
8
F
M
O
7
N
5
E
B
D1
D2
fig.X01720
1 Operating panel
2 Door opening, WS6–14: ⌀ 365 mm
3 Detergent container
4 Cold water
5 Hot water
6 Re-used water
7 Drain valve
8 Liquid detergent supply
9 Electrical connection
10 Steam connection
mm
A B C D1 D2 E F G
WS6–14 720 790 1220 370 440 1335 920 80
mm
H I J K L M N O
WS6–14 1120 215 125 1100 1000 280 105 210
