Electrolux E36GC76PRS - Placement of Burner Caps

10
Surface Cooking
Place a burner cap on each burner head, matching
thecapsizetotheheadsize.Thecapforeach
burner has an inner locating ring which centers
thecapcorrectlyontheburnerhead.Besurethat
all the burner caps and burner heads are correctly
placedBEFOREusingyourappliance.
Makesureeachburnercapisproperlyalignedand
level.
Turn the burner on to determine if it will light. If the
burnerdoesnotlight,contactaServiceCenter.Do
not service the sealed burner yourself.
ATTENTION:Donotslidetheburnercapsonthe
cooktop, doing so can damage the surface.

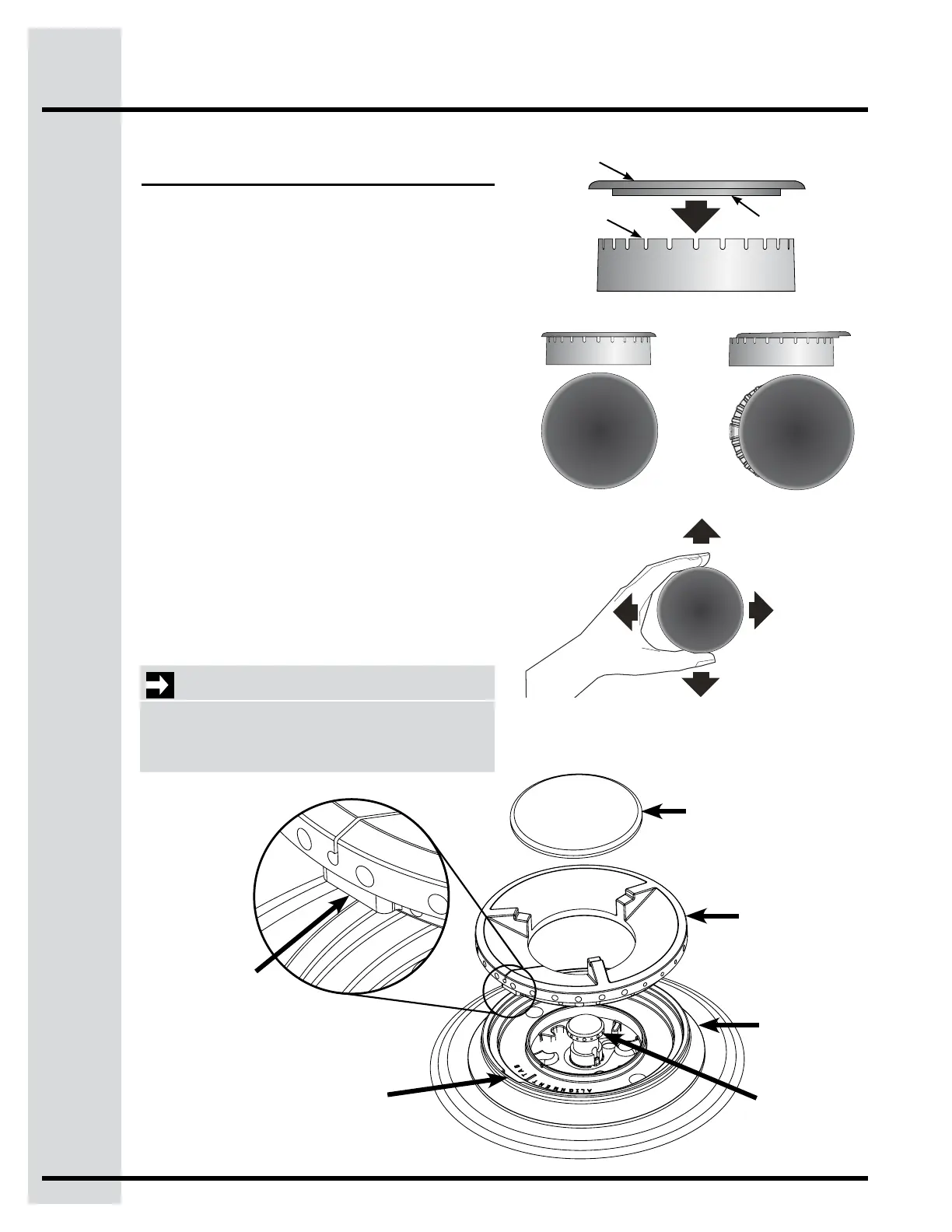

Placement of burner caps
BurnerRing
Alignment Tab
BurnerCap
BurnerRing
BurnerBase
Simmer Head
BurnerBase
Alignment Tab Slot
BurnerCap
BurnerHead
CorrectBurnerCap
Placement
IncorrectBurnerCap
Placement
BurnerCapLip
IMPORTANT
For Proper Ignition: Burner Ring
AlignmentTabMustAlignwithBurner
BaseAlignmentTabSlot
