ENGLISH 5

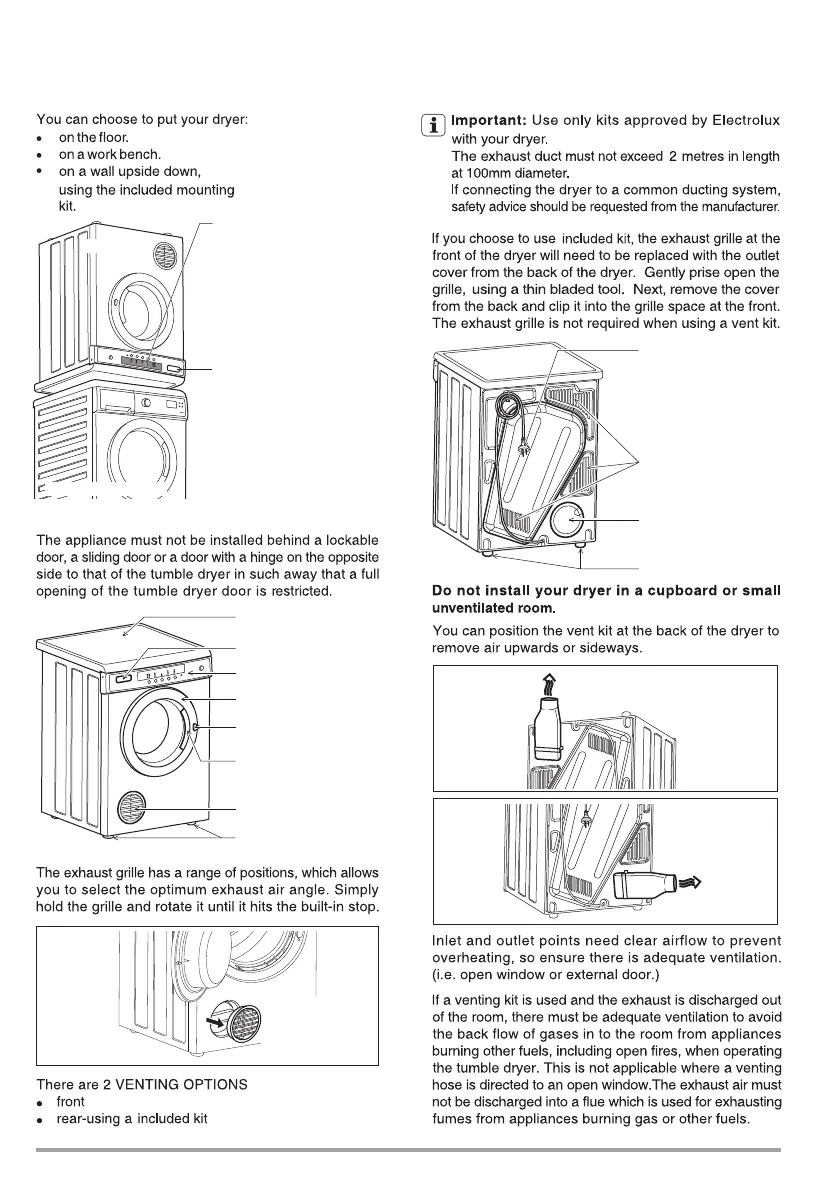

INSTALLATION INSTRUCTIONS2.
Control Panel
Door
Door Safety Switch
Button
Door Handle
Exhaust Grille
Front Feet
Name Badge
Worktop
Mains Cable
Air Inlet Duct
Outlet Cover
Back Feet
Removable
Exhaust
Grille
Air Flow
Air Flow
Washing Machine
Dryer
Upside
Down
Normal
You can reverse name
badge when you want to
mount your dryer upside
down. Use a suitable tool
(such as a thin bladed
tool). Unclip the badge
from the panel, then
reverse and clip back.
You can remove program
sticker from control panel
and replace with inverse
sticker provided in user
manual bag, when
installation upside down
machine.
Name Badge
Program Sticker
