Electrolux EDW 1003 - Page 16

- 16 -
09.2002 R.K. 599 515 183 EN

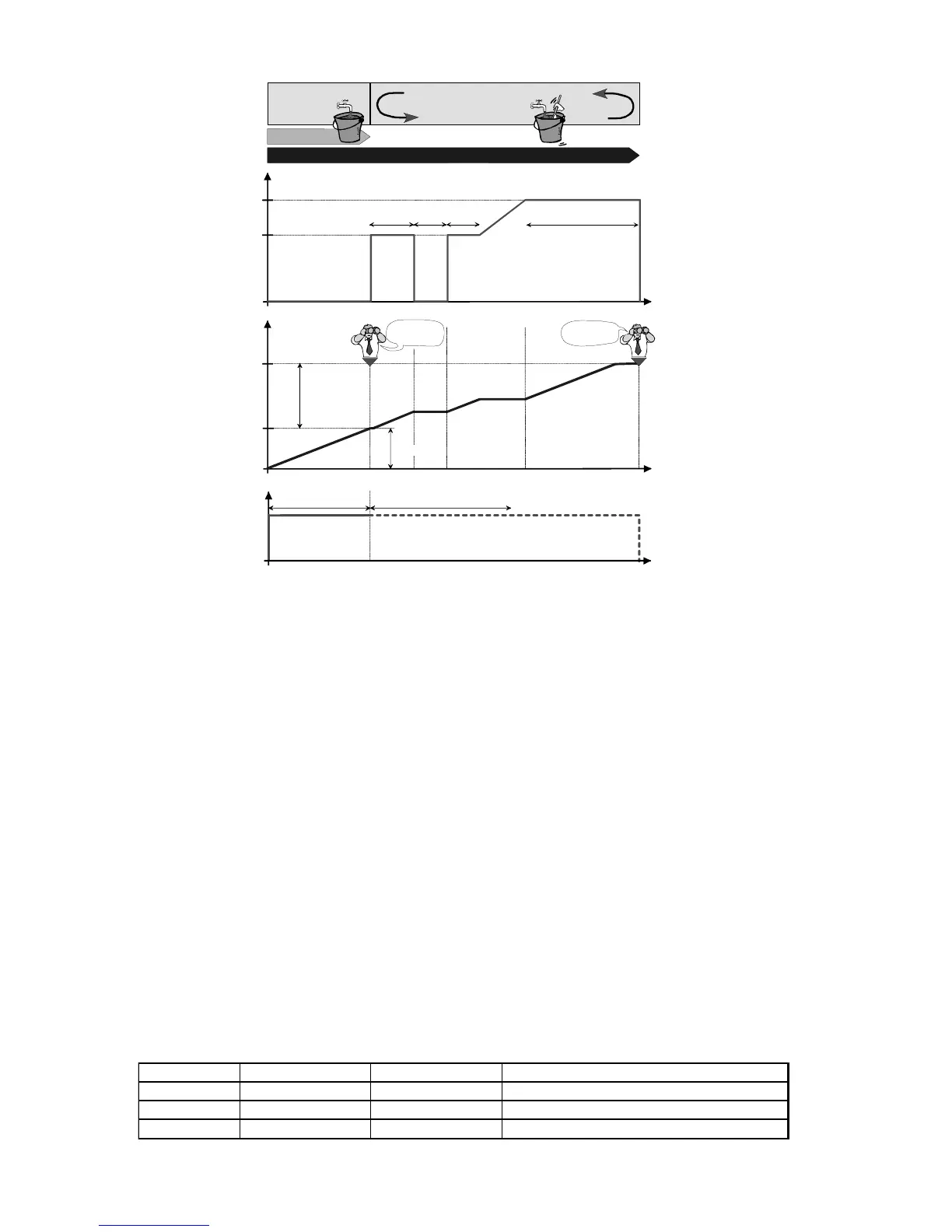

5.2.1 Water load steps (Example)
Static filling
- Static filling until pressure switch point.
failure code:
If this point isnt reached after max. 2 minutes (Timeout 1), a
failure code is displayed and the program is stopped.
Dynamic filling
- 10 seconds filling at reduced circulation pump speed
- 5 seconds pause
- 10 seconds filling at reduced circulation pump speed
- filling with increasing circulation pump speed. As soon as the
target speed has been reached, it is filled up to the pressure
switchpoint.
Failure code:
If this dynamic switchpoint isn’t reached within total 4 minutes
(Timeout 2), the dynamic filling can be repeated 3 times. Only
after non-successful repeating 3 times, a failure code is displayed
and the program is stopped.
Timeout 1
Timeout 2
static water
load
to level
dynamic water
load
with level control
max. 4
repetitions
valve
off
on
w
ater
in L
0
dynamic
water load
s
peed
in
U
/
min
0
10 Sek.
time
in Se k.
target-
speed
≥
20 Sek.
time
in Sek.
tim
e
in Se k.
filing
filling is possible
level check:
water failure displayed
if level not reached!
ca. 1,6
3,6 - 4
static
water load
level check:
water failure displayed
if level not reached!
5 Sek.
1600
5 Sek.
pulse wash pulse 2800 1/min Pause 1600 1/min target speed in dynamic filling
1 0,9 sec 4,5 sec 2200 1/min
2 0,6 sec 3 sec 1900 1/min
3 0,3 sec 1,5 sec 1700 1/min
*) The target speed
is dependent on
the subsequent
pulse wash.
