Electrolux EDW 1003 - Service Tips and Housing Access; Opening the Appliance Housing

- 9 -
05.2002 R.K. 599 514 DE
4. Service tips
4.1 Open the housing
1
2
3
1
2

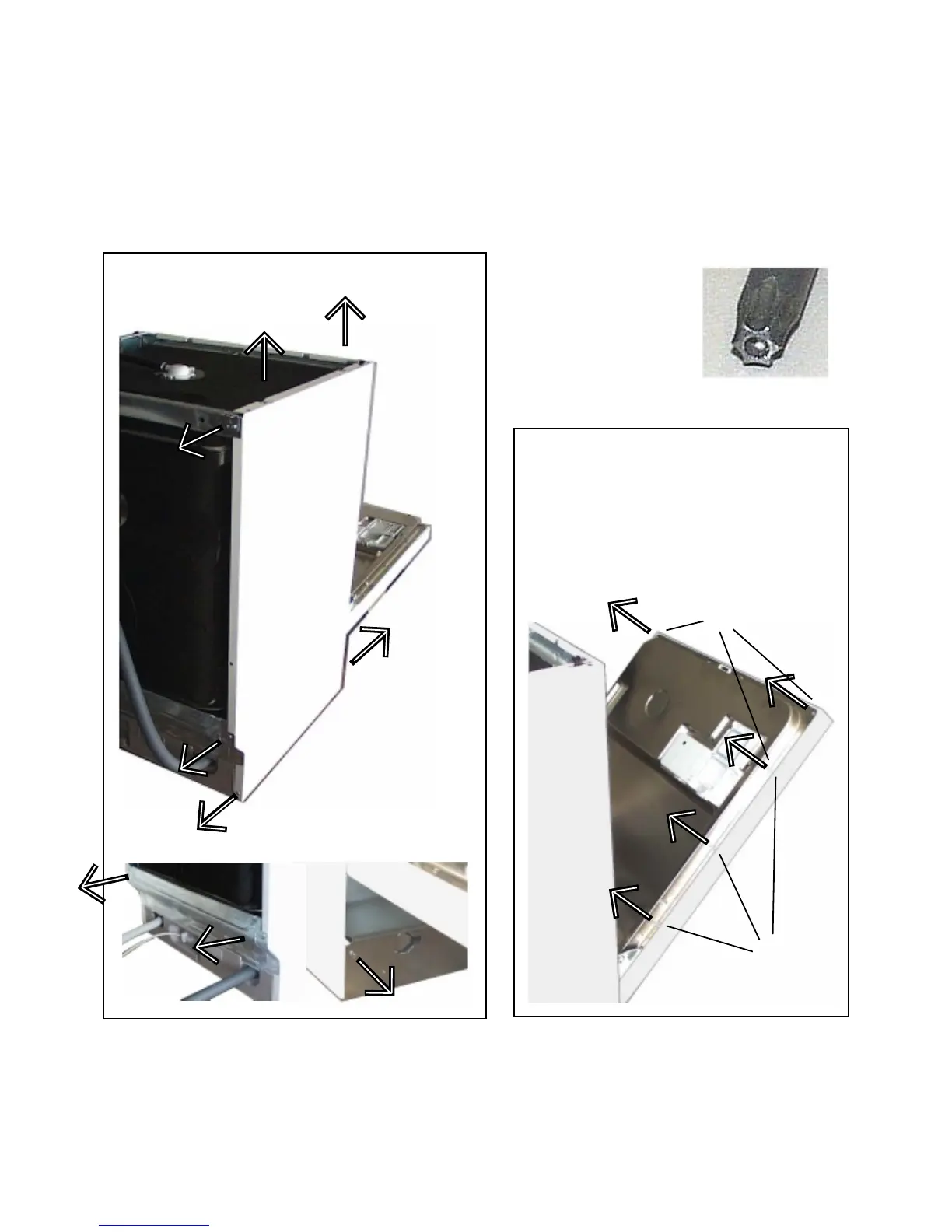

To remove side panel remove fixing screws, pull
the panel away from the rear, and gently out of
the front trim. (pic.1).
Removing the
cover plates of the
base area, remove
these screwst
(Abb1+2).
Remove the screws (1) to pull the
outer door away.
To remove the panel, remove the
fixing screws (2) .
You need
Torx epuipment
