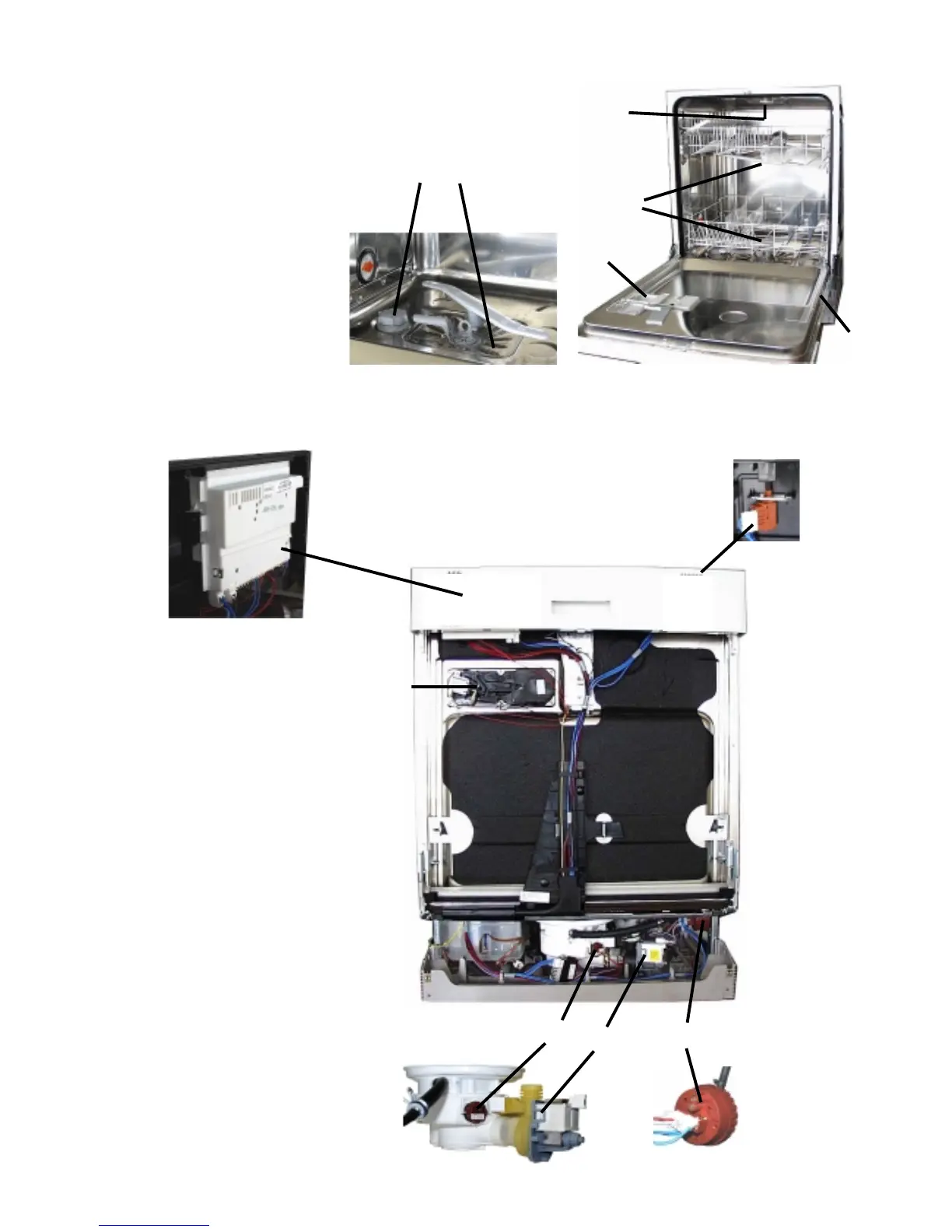

4.2 Position of Components
Detergent dispenser (1)
Spray arms (2)
Roof-mounted shower (3)
Salt container (4)
Filter (5)
Type plate (6)
1
2
3
4
5
6
Detergent dispenser (3)
Thermal sensor (4)
Drain pump (5)
Pressure switch (6)
3
4
5
6
Electronic EDW 1003 (1)
and ON/OFF-switch (2)
are clipsed
1
