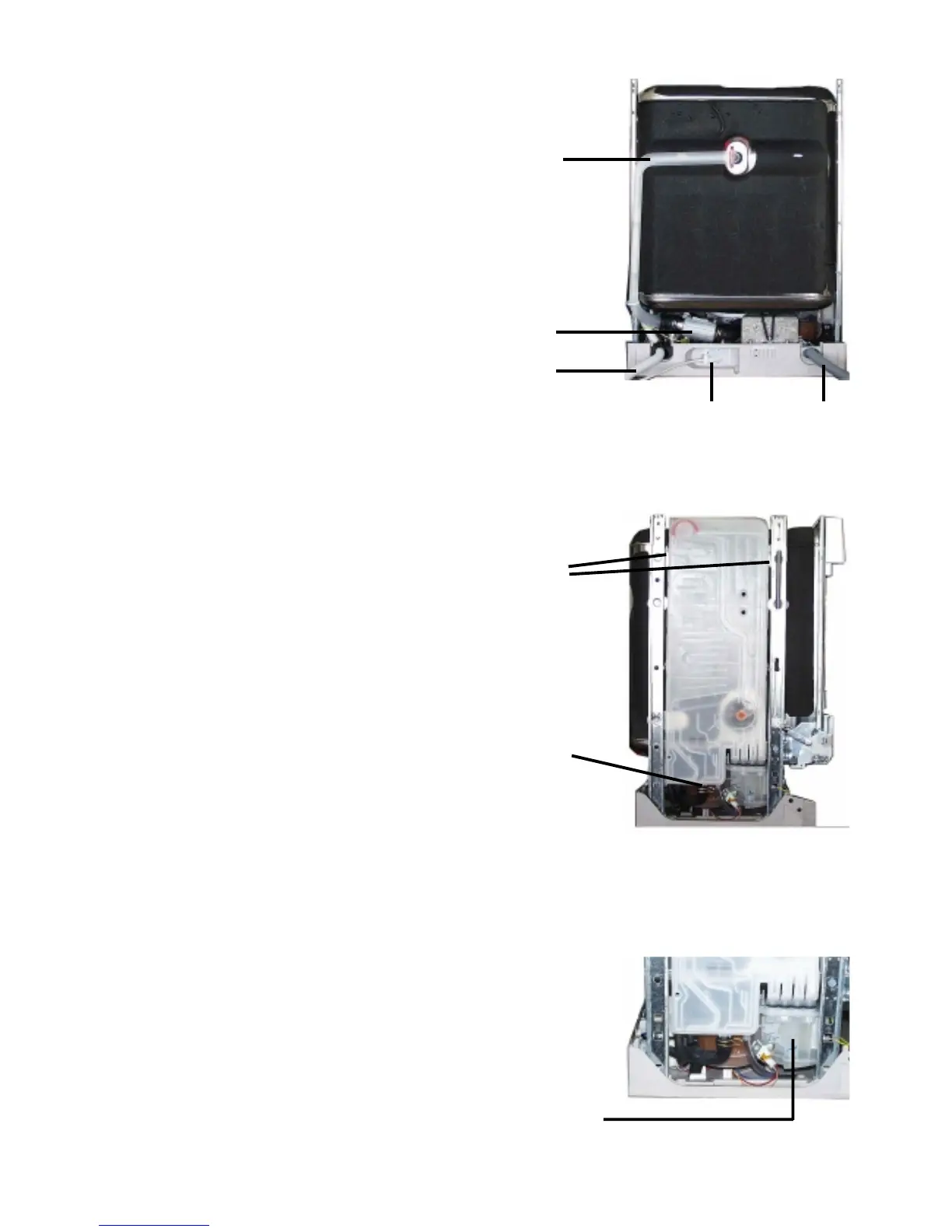

Back side view
- Flow heater (1)
- Terminal box (2)
- Inlet hose (3)
- Drain hose (4)
- Water inlet for above spray arm (5)
Removing the detergent dosage chamber:
- disengage locking tabs (1), disconnect hoses (2)
- holding the top of the chamber, pull upwards
disengaging it from the softener.
Removing the softener unit :
- remove the securing nut located under the salt cap.
- press softener (1) down and remove it through the front
from the base area
- CAUTION if accessible release reed switch.
