Removing the base :
- remove side panels, rear panel and plinth panel

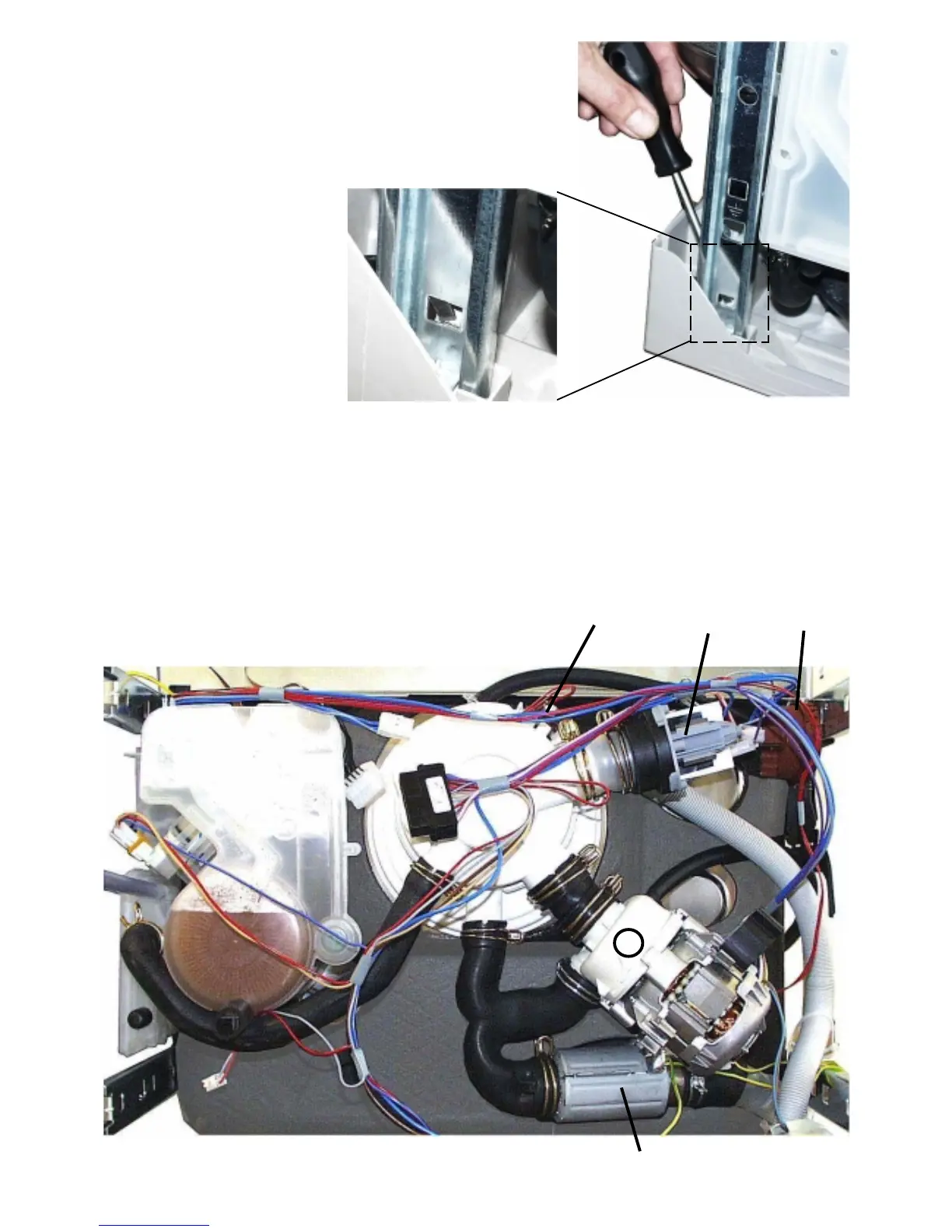

- gently release base fixing clips with a screwdriver (figure)
- take off base carefully and release circulation pump,
electronic and heater relay
- disconnect the float switch
1
2
3
4
5
With base removed, following components are accessible:
- Drain pump (1)
- Circulation pump (2)
- Flow heater (3)
- Temperature sensor / Turbidity sensor (4)
- Pressure switch (5)
