Electrolux EDW 1003 User Manual

- 15 -
09.2002 R.K. 599 515 183 EN

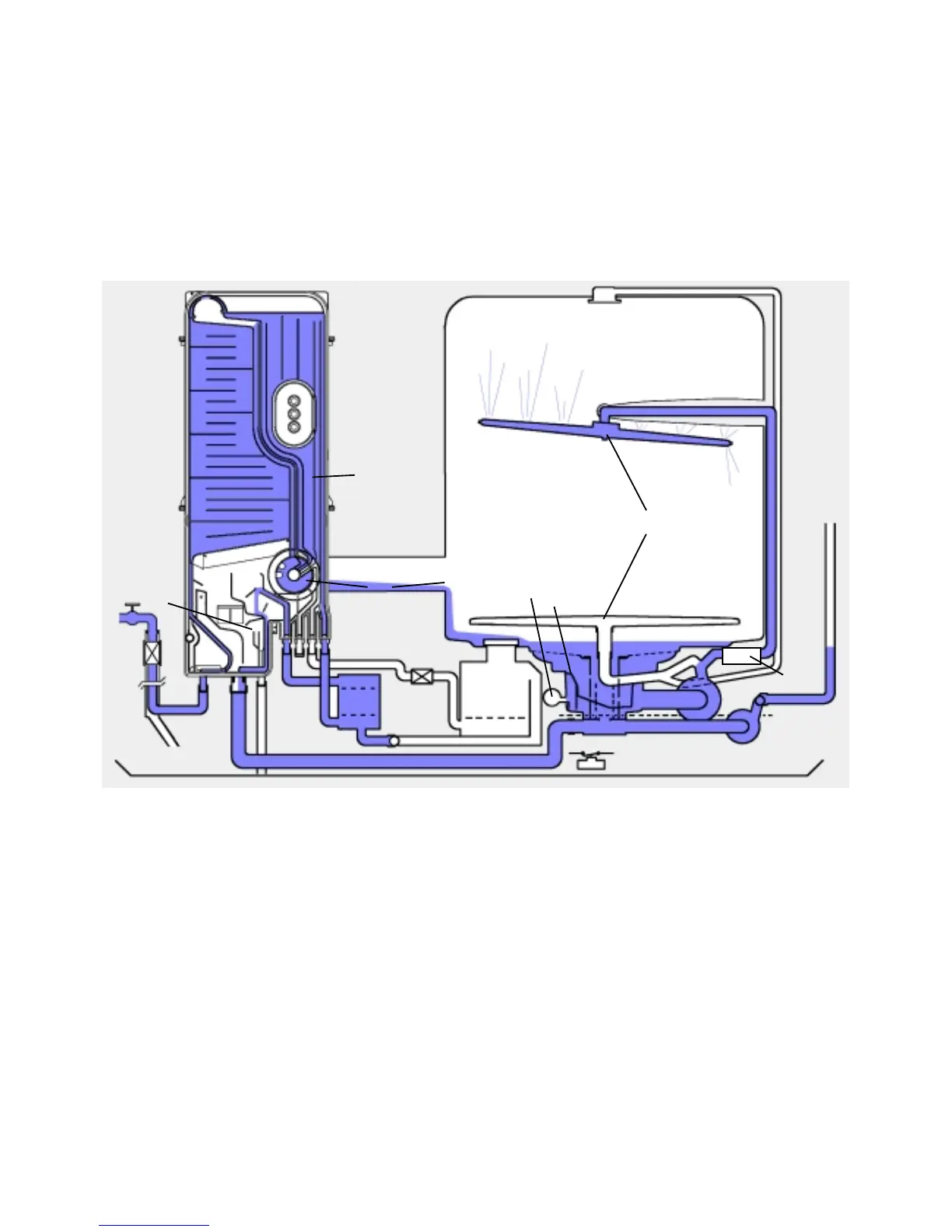

5.2 Water Inlet
The water flows into the regeneration dosage chamber (7) via inlet valve (1), over air break (2), into
regeneration dosage chambers (3) into softener (8). At this point the water divides. 1/4 of the water
enters the tub through the vent (23). 3/4 of the water enters the sump (24) through hose (6).
The level control chamber built into the sump operates the pressure switch (15).
1 Inlet valve
2 Air break
3 Regeneration water dosage
4 Overflow safety level
5 Safety overflow
6 Inlet to sump from regeneration dosage chamber
7 Regeneration dosage chamber
8 Softener
9 Salt container
10 Non-return valve salt container
11 Regeneration valve
12 Safety inlet hose
13 Base tray
14 Float switch
15 Pressure switch
16 Filter
17 Circulation pump
18 Flow heater
19 Drain pump
20 Non-return valve
21 Spray arms
22 Roof-mounted shower
23 Tub vent
24 Sump assembly
18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
19
20
21
22
23
24
