Description of the appliance

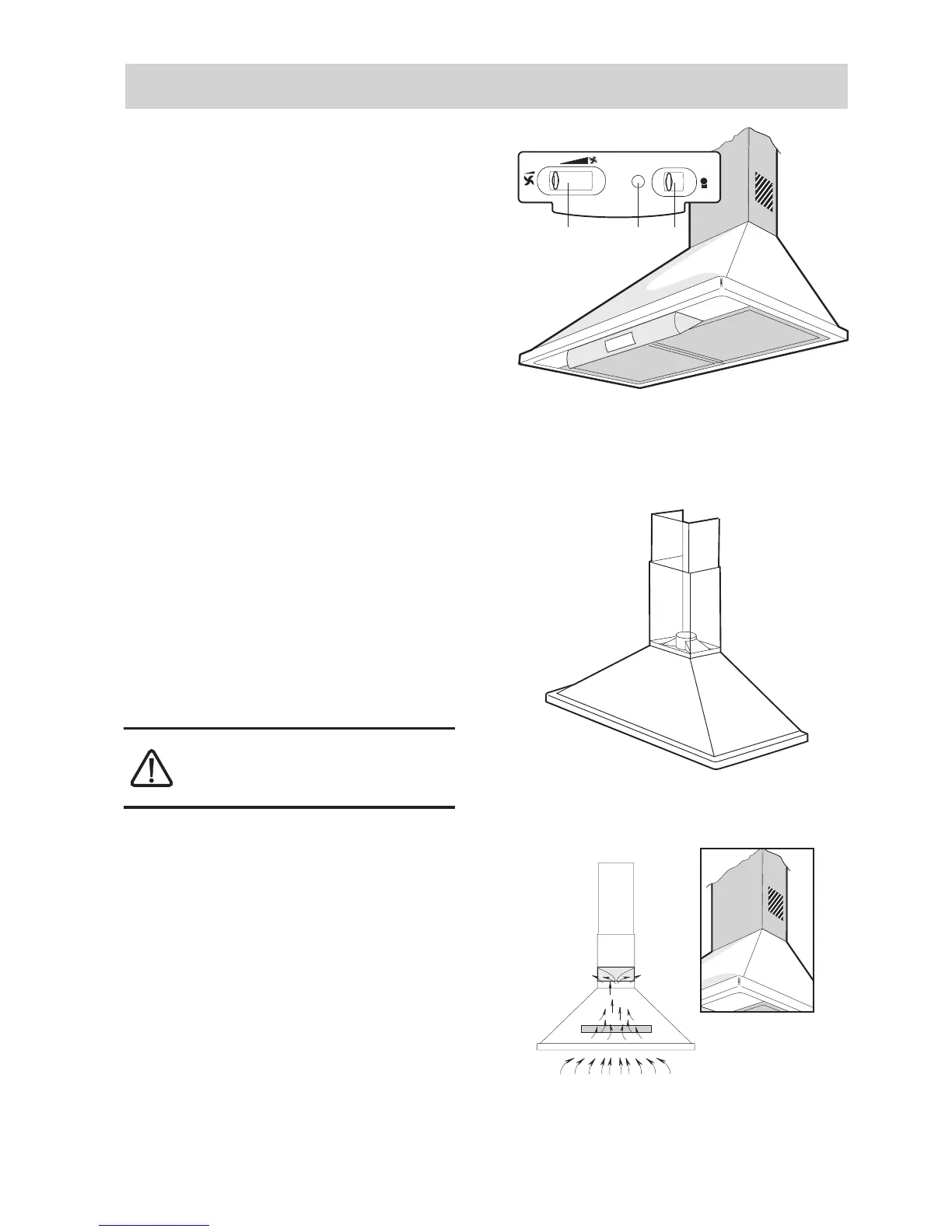

Fig. 1
1
5
5
A
1. Control panel containing work light
2. Motor speed button
3. Operating light
4. Light button
5. Grease filters
2 pcs on model EFC 635 X
3 pcs on model EFC 935 X
Standard accessories included:
Wall mounting template
Screws
No return valve
Deflector
Chimney support
Function
The hood may be used as follows:
- Exhausting version
- Recycling version
Exhausting version
The air is vented outdoors by a duct which must be
connected to connecting ring with no return valve
A (Fig. 2).
The hood cannot be connected to flues
of other appliances that run on energy
sources other than electricity.
Recycling version
The air is filtered through a carbon filter and
recirculated into the room through the grating B
(Fig. 3).
This version is used when there is no exhaust duct
for venting outdoors or when it is impossible to
install one.
Fig. 2
B
B
B
Fig. 3
234
