Electrolux EFC 635 X - Mounting of Hood on Wall

44
F
Fig. 6
Ø 12mm
Ø 12mm
Fig. 5
G
Fig. 7
Fig. 8

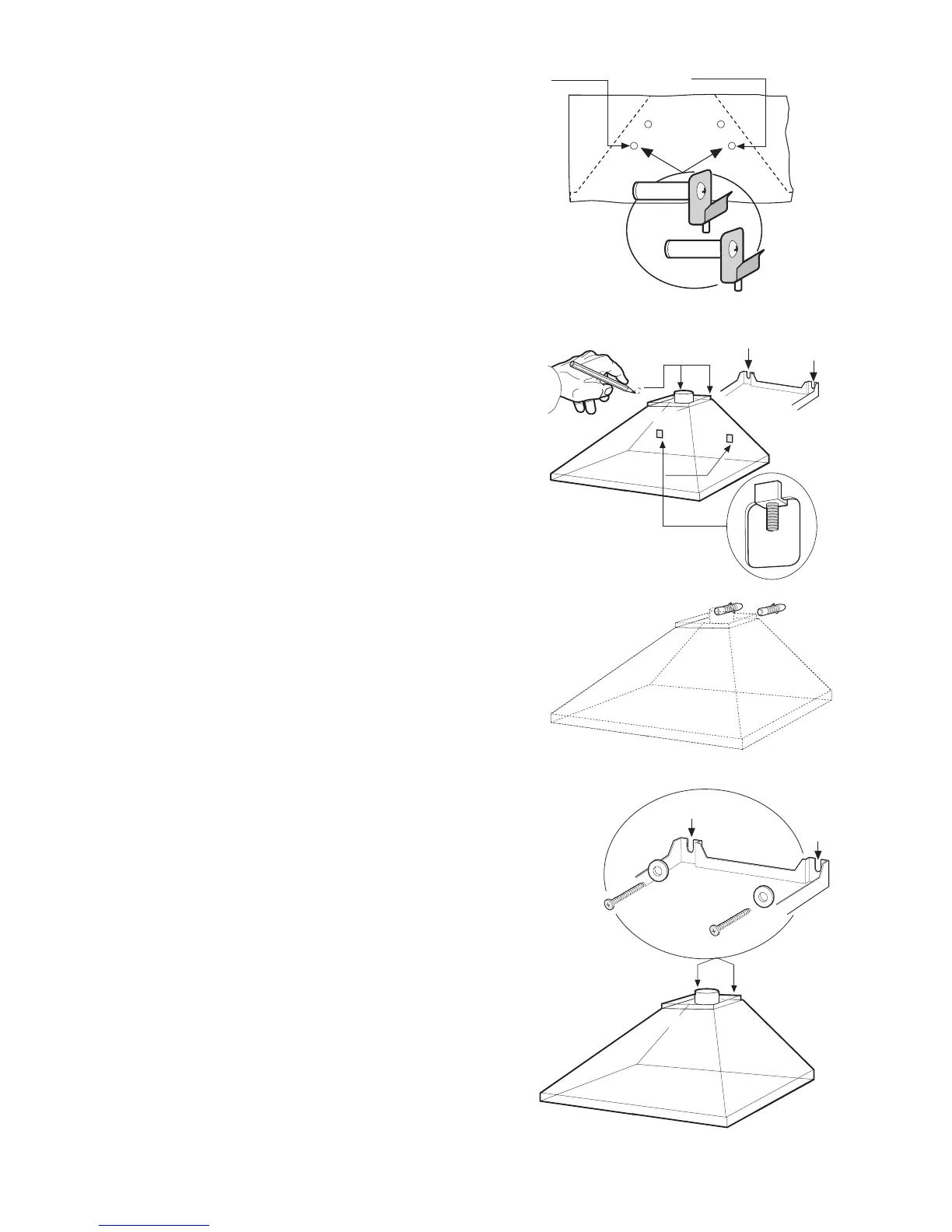

Mounting of hood on wall
● Place the drilling scheme in the correct position
(the lower edge and right and left side corre-
spond with the lower edge and right and left
ends of the hood respectively).
Drill the Ø 12mm holes only (Fig. 5).
● Fasten the two hooks G in the bottom holes.
● Remove the grease filters (Fig. 13).
● Hang the hood on the hooks and level it with the
screws F (Fig. 6).
● Mark with a pencil the position of the final
fastening upper holes (Fig. 6).
● Remove the hood.
● Drill the pre-marked points (Ø 8mm).
● Insert the expansion plugs (Fig. 7).
● Hang the hood again.
● Fix the hood definitively using two 5x45 screws
and two Ø 20mm washers (Fig. 8).
