INSTALLATION
• Repeat this operation on the other side.
• Drill ø 8 mm holes at all the centre points
marked.
• Insert the wall plugs 11 in the holes.
• Fix the lower bracket 7.2.1 using the 12a
screws (4,2 x 44,4) supplied.
• Fix the upper bracket 7.2.1 (and, in case
of hood installation in recycling version,
the air outlet connection 15) using the 2
screws 12a (4,2 x 44,4) supplied.
• Insert the two screws 12a (4,2 x 44,4)
supplied in the hood body xing holes,
leaving a gap of 5-6 mm between the wall
and the head of the screw.

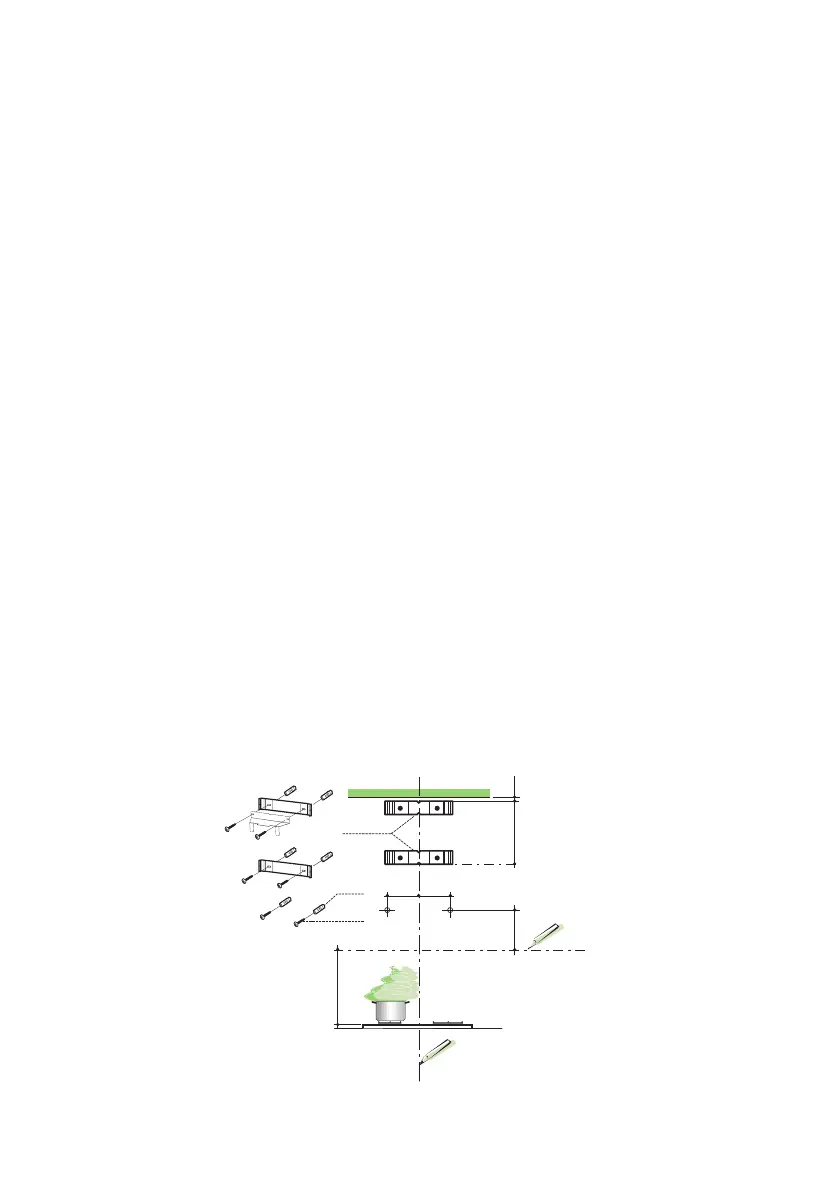

Wall drilling and bracket xing
Wall marking:
• Draw a vertical line on the supporting wall
up to the ceiling, or as high as practical, at
the centre of the area in which the hood
will be installed.
• Draw a horizontal line at 650 mm above
the hob.
• Place bracket 7.2.1 on the wall as shown
about 1-2 mm from the ceiling or upper
limit aligning the centre with the vertical
reference line.
• Mark the wall at the centres of the holes in
the bracket.
• Place bracket 7.2.1 on the wall as shown
at X mm below the rst bracket (X = height
of the upper chimney section supplied),
aligning the centre with the vertical line.
• Mark the wall at the centres of the holes in
the bracket.
• Mark a reference point as indicated at 116
mm from the vertical reference line and
330 mm above the horizontal reference
line.









