Care and Cleaning

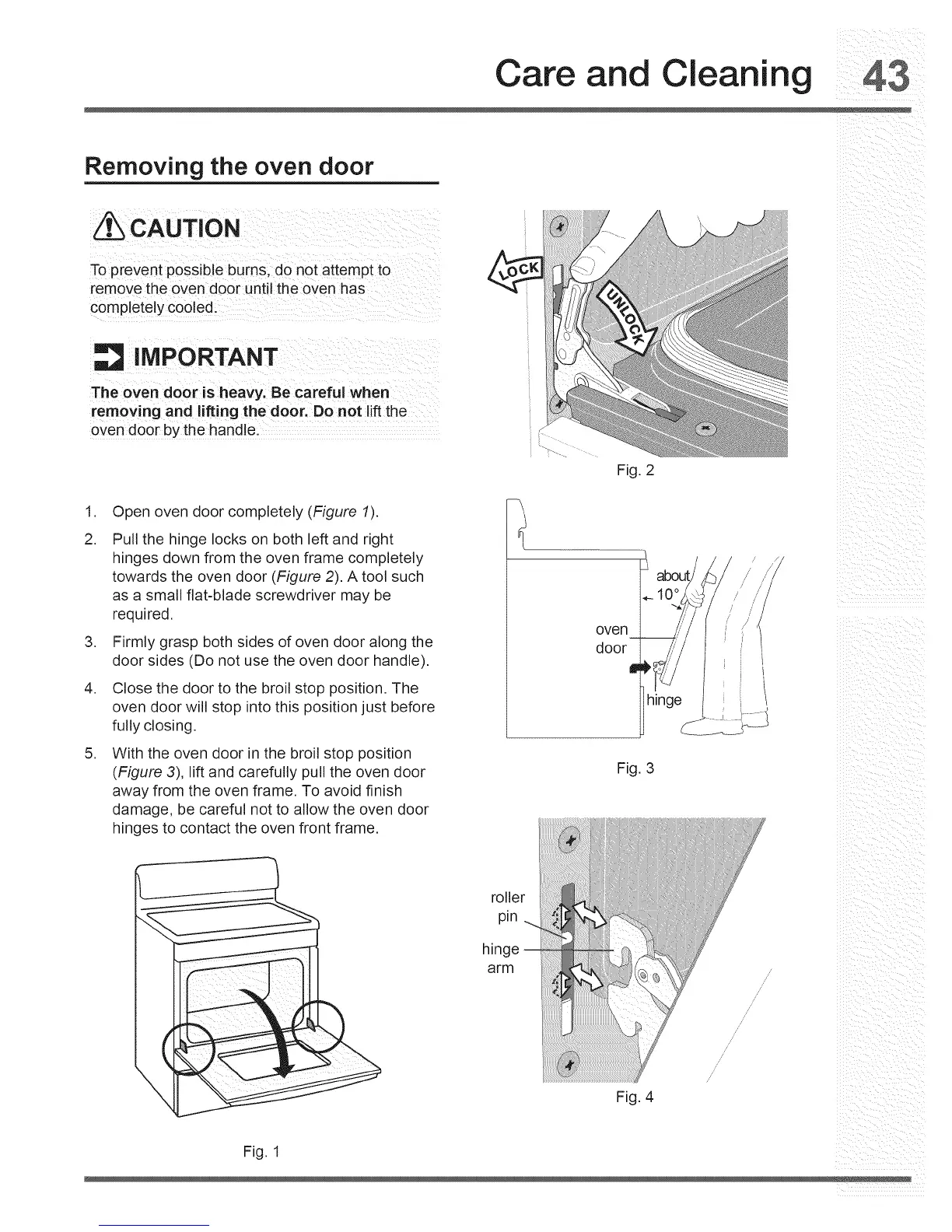

Removing the oven door
CAUT O.
To prevent possible burns, d0 not attempt to
remove the oven door until the oven has
The oven door is heavy' Be careful when
removing and lifting the door, Do not lift the
oven door by the handle:
Fig. 2
; i
iii_i I i_ iii i_ii
.
2.
.
.
.
Open oven door completely (Figure 1).
Pull the hinge locks on both left and right
hinges down from the oven frame completely
towards the oven door (Figure 2). A tool such
as a small flat-blade screwdriver may be
required.
Firmly grasp both sides of oven door along the
door sides (Do not use the oven door handle).
Close the door to the broil stop position. The
oven door will stop into this position just before
fully closing.
With the oven door in the broil stop position
(Figure 3), lift and carefully pull the oven door
away from the oven frame. To avoid finish
damage, be careful not to allow the oven door
hinges to contact the oven front frame.
oven
i
door
tll
Fig. 3
ii ii
i i i i
roller
pin
hinge
arm
Fig. 4
/
/
//
//
//
//
/
/
///
/
i! ii_ __i
ii iii_ ii
il _ ii ii_i_ i
Fig. 1
