between the appliance and the kitchen
furniture is correct.

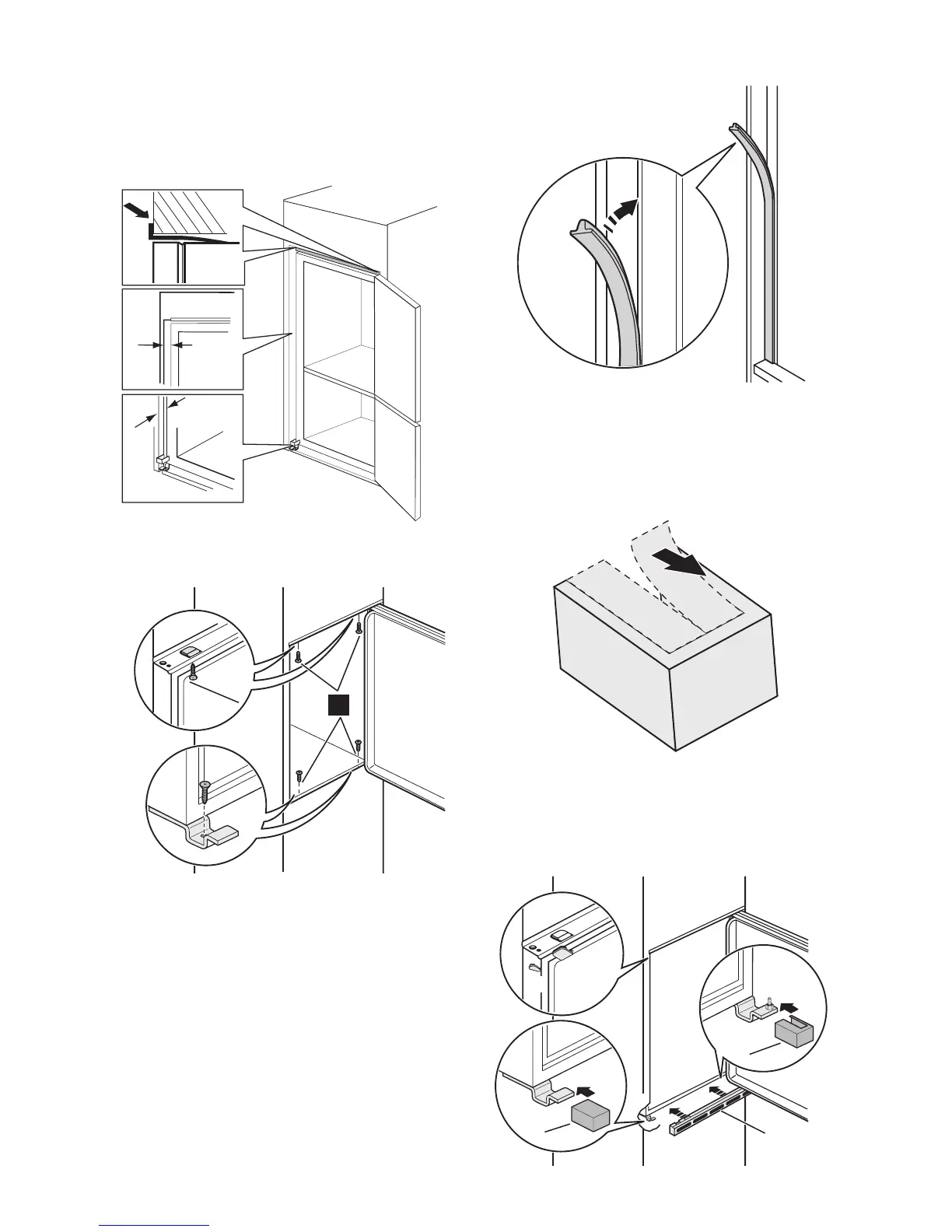

Open the door. Put the lower hinge cover
in position.
44mm
4mm
3. Attach the appliance to the niche with 4
screws.
I
4. Push the sealing strip between the ap-
pliance and the adjacent cabinet.
5. Remove the correct part from the hinge
cover (E). Make sure to remove the part
DX, in the case of right hinge, SX in op-
posite case.
6. Attach the covers (C, D) to the lugs and
the hinge holes.
Install the vent grille (B).
Attach the hinge covers (E) to the hinge.
B
E
E
D
C
electrolux 13
