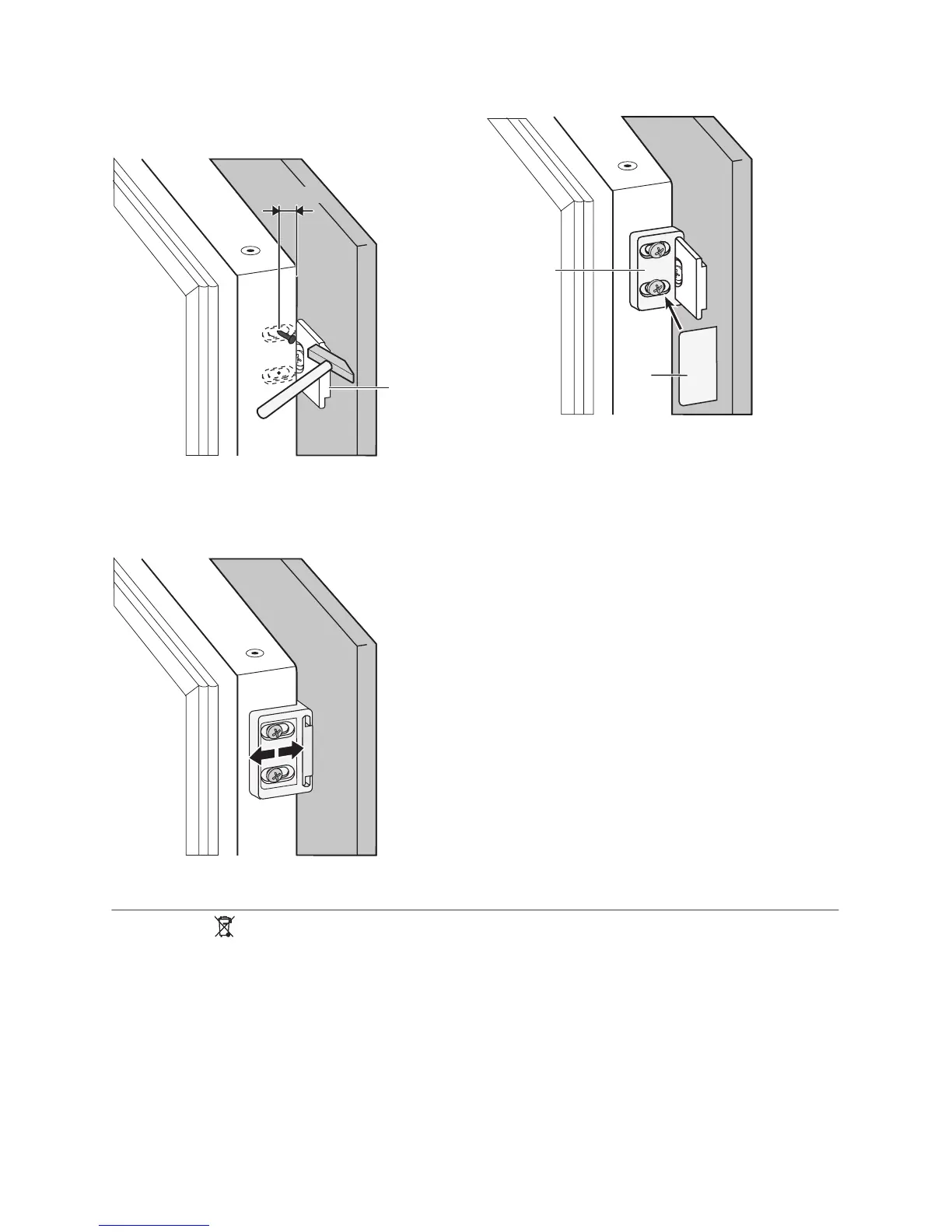

12. Remove the brackets and mark a dis-
tance of 8 mm from the outer edge of the
door where the nail must be fitted (K).
Ha
K
8 mm
13. Place the small square on the guide
again and fix it with the screws supplied.
Align the kitchen furniture door and the
appliance door by adjusting the part Hb.
Hb
14. Press the part Hd on the part Hb.
Hb
Hd
Do a final check to make sure that:
• All screws are tightened.
• The magnetic sealing strip is attached
tightly to the cabinet.
