Oven door glass
The oven door is fitted with three panels of glass mounted one behind the
other.The inner panels can be removed for cleaning.
1 Important! Rough handling, especially around the edges of the front panel,
can cause the glass to break.

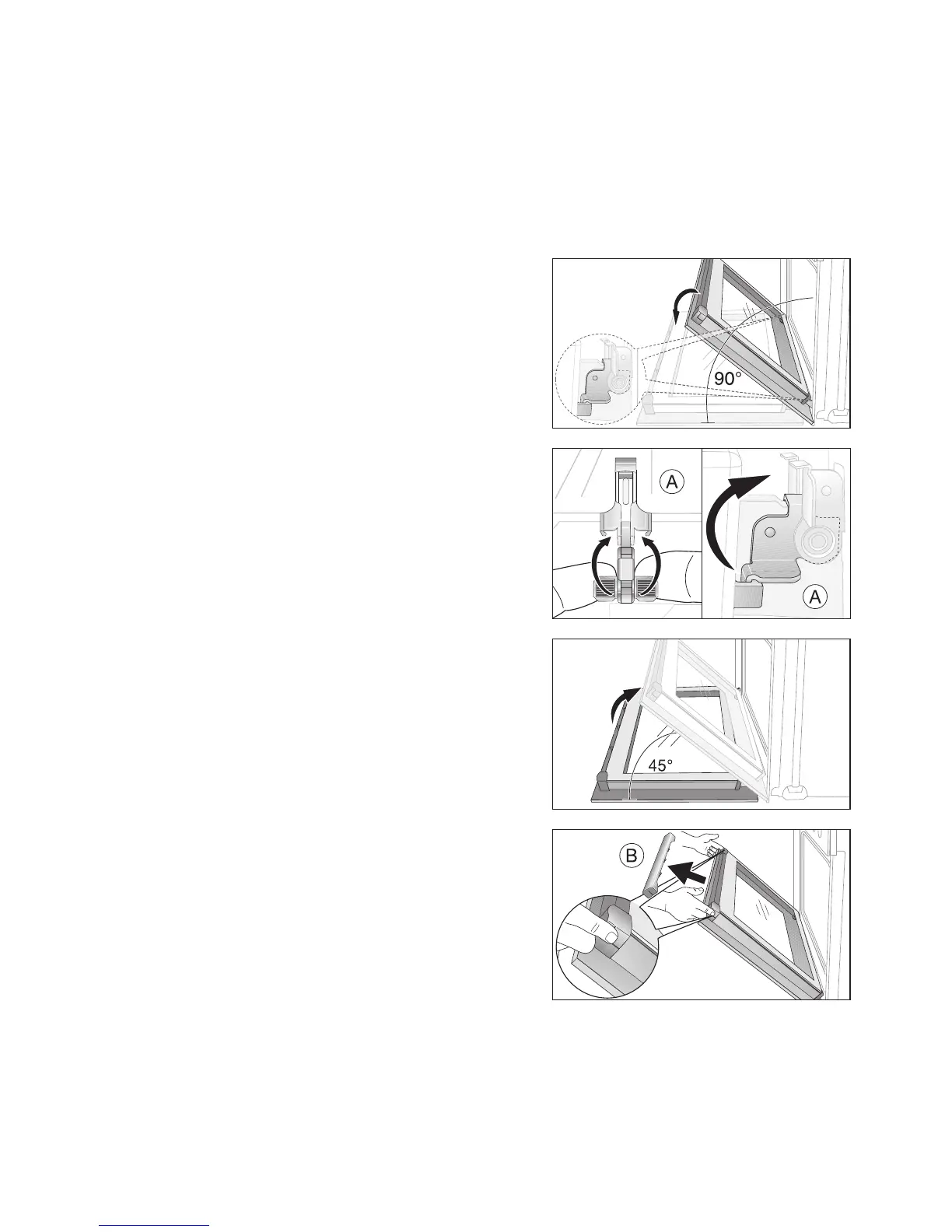

Removing the door glass panels
1. Open the oven door as far as it will go.
2. Undo the clamping levers (A) on both
door hinges fully
3. Close the oven door as far as the first
position (approx. 45°).
4. Take hold of the door trim(B) on the up-
per edge of the door at both sides and
press inwards to release the clip seal.
Then remove the door trim by pulling it
upwards.
