40
CONNECTING TO THE MAINS TERMINAL
Warning: This appliance must be earthed.
· We recommend you use a new length of 6mm
2
twin
core and earthed cable to ensure your safety.

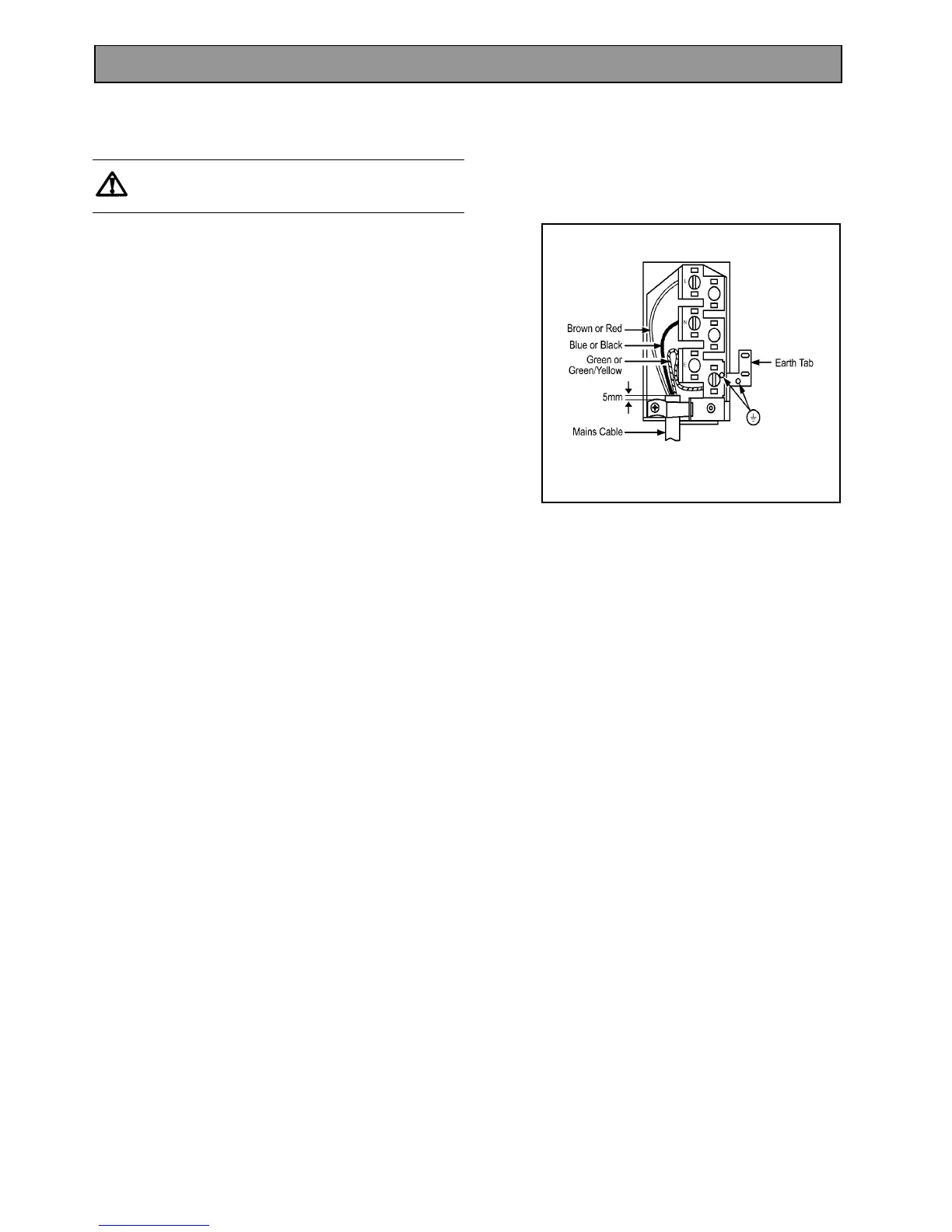

· Make connection as shown in Fig. 12 by proceeding
as follows:-
· Preform wires to the appropriate shape to suit fitting
into the mains terminal block.
· Strip inner insulation on wires using wirestrippers.
· Twist the bared wires using pliers.
· Cut bared wires 10mm away from the end of the
inner insulation. Where uninsulated Earth wires are
used ensure they are suitably sheathed to leave
10mm bare wire to fit into the terminal.
· Clamp bare wires into the relevant terminal and
check they are held by tugging each one in turn.
· Clamp the mains cable securely ensuring 5mm of
the outer insulation is inside the terminal block and
that the wires are not taught but not so slack as to
cause any fouling. See Fig. 12.
· Connect the remaining end to the mains cable to the
cooker point/junction box.
· Place fuse/miniature circuit breaker in circuit and
switch on at mains.
INSTALLATION INSTRUCTIONS
Fig.12
