Electrolux ERF2000 - 2.5 DELTA 2 C

ERF2000 Functions of the electronic boards Rev. 01 13/30

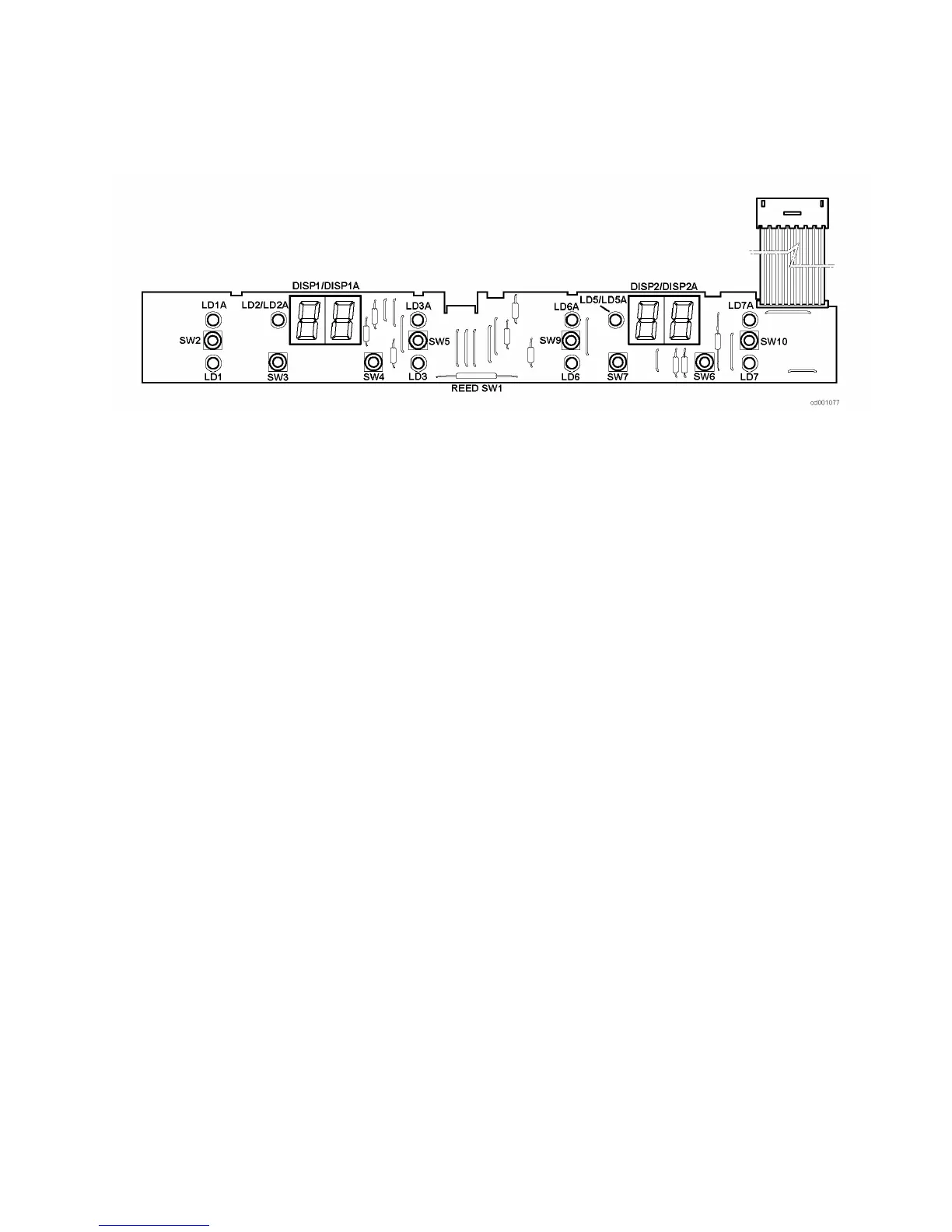

2.5 DELTA 2C
KEY:
SW1 = REED ELEMENT;
SW2 = REFRIGERATOR-FREEZER ON/OFF BUTTON;
SW3 = REFRIGERATOR TEMPERATURE INCREASE BUTTON;
SW4 = REFRIGERATOR TEMPERATURE DECREASE BUTTON;
SW5 = REFRIGERATOR “SUPER COOLING” BUTTON;
SW6 = FREEZER TEMPERATURE DECREASE BUTTON;
SW7 = FREEZER TEMPERATURE INCREASE BUTTON;
SW9 = FREEZER “SUPER” BUTTON;
SW10 = ALARM RESET BUTTON;
DISP1 = REFRIGERATOR DISPLAY;
DISP2 = FREEZER DISPLAY;
LD1 = REFRIGERATOR ON/OFF LED;
LD2 = SYMBOL + LED;
LD3 = FREEZER “SUPER” LED;
LD5 = SYMBOL - LED;
LD6 = REFRIGERATOR FROSTMATIC LED;
LD7 = ALARM LED;
