Electrolux ERF2000 - 2.7 ALFA 1 C

ERF2000 Functions of the electronic boards Rev. 01 15/30
2.7 ALFA 1C

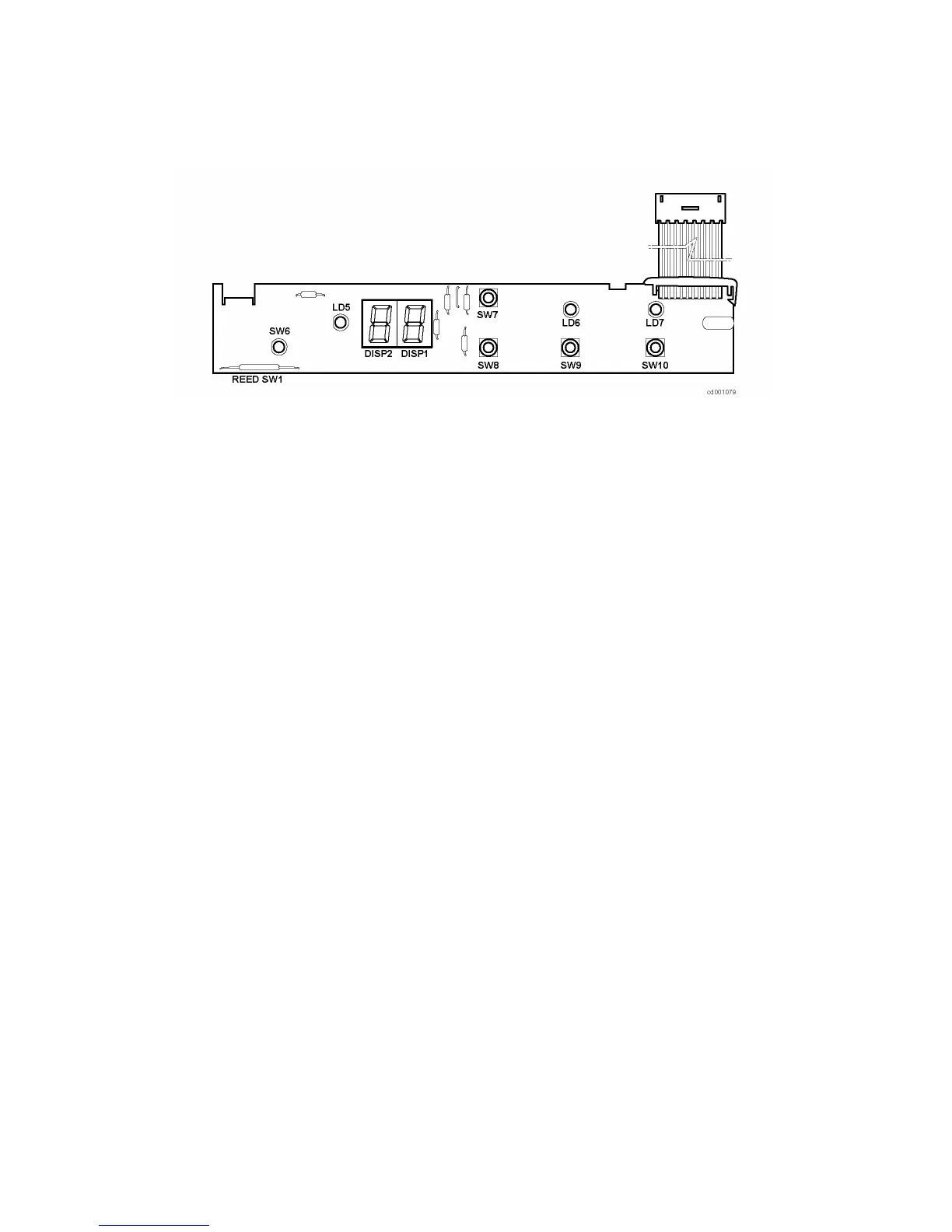

KEY:
SW1 = REED ELEMENT;
SW6 = FREEZER ON/OFF BUTTON;
SW7 = FREEZER TEMPERATURE INCREASE BUTTON;
SW8 = FREEZER TEMPERATURE DECREASE BUTTON;
SW9 = FREEZER “SUPER” BUTTON;
SW10 = ALARM RESET BUTTON;
DISP1 = REFRIGERATOR DISPLAY;
DISP2 = FREEZER DISPLAY;
LD5 = SYMBOL - LED;
LD6 = FREEZER “SUPER” LED;
LD7 = ALARM LED;
