Electrolux ERF2000 - 2.6 D3 1 C

ERF2000 Functions of the electronic boards Rev. 01 14/30
2.6 D3 1C

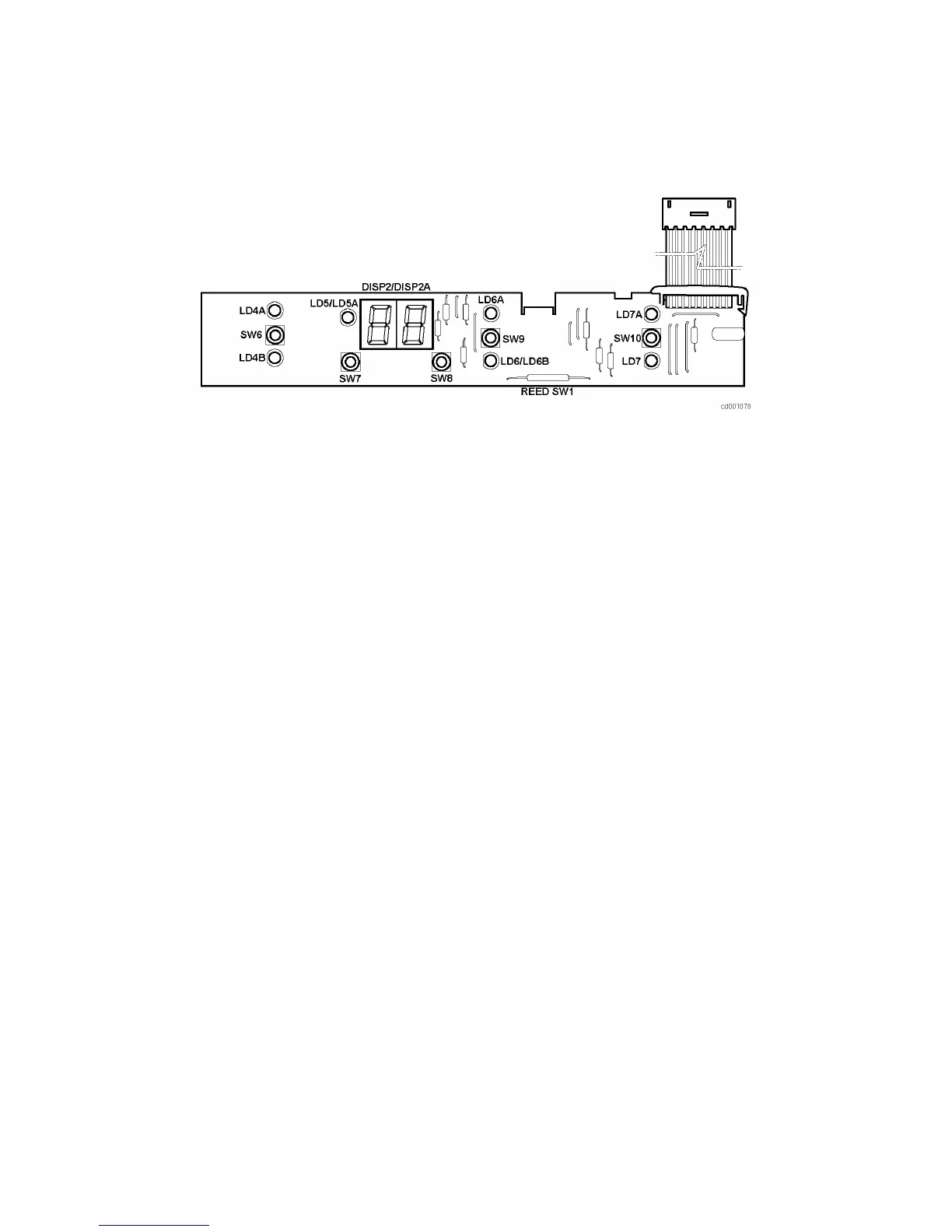

KEY:
SW1 = REED ELEMENT;
SW6 = FREEZER ON/OFF BUTTON;
SW7 = FREEZER TEMPERATUER INCREASE BUTTON;
SW8 = FREEZER TEMPERATURE DECREASE BUTTON;
SW9 = FREEZER “SUPER” BUTTON;
SW10 = ALARM RESET BUTTON;
DISP2 = FREEZER DISPLAY;
LD4A/B = FREEZER ON/OFF LED;
LD5 = SYMBOL - LED;
LD6/6B = SUPER / RESET ALARM LED;
LD6A = “SUPER” LED;
LD7/7A = ALARM RESET LED;
