I W M S
Integrated Water Management System
The external casing in transparent plastic consists of two half-shells that are welded together.
The casing contains the resins (water softening substances) as well as a number of special chambers and
ducts for treatment of the water. These have the following functions:
- WATER FILL CIRCUIT
- WATER FILL CONTROL SYSTEM
- FILL WATER TREATMENT SYSTEM
- REGENERATION SYSTEM
- WATER DRAIN CIRCUIT
- CONDENSATION OF VAPOUR

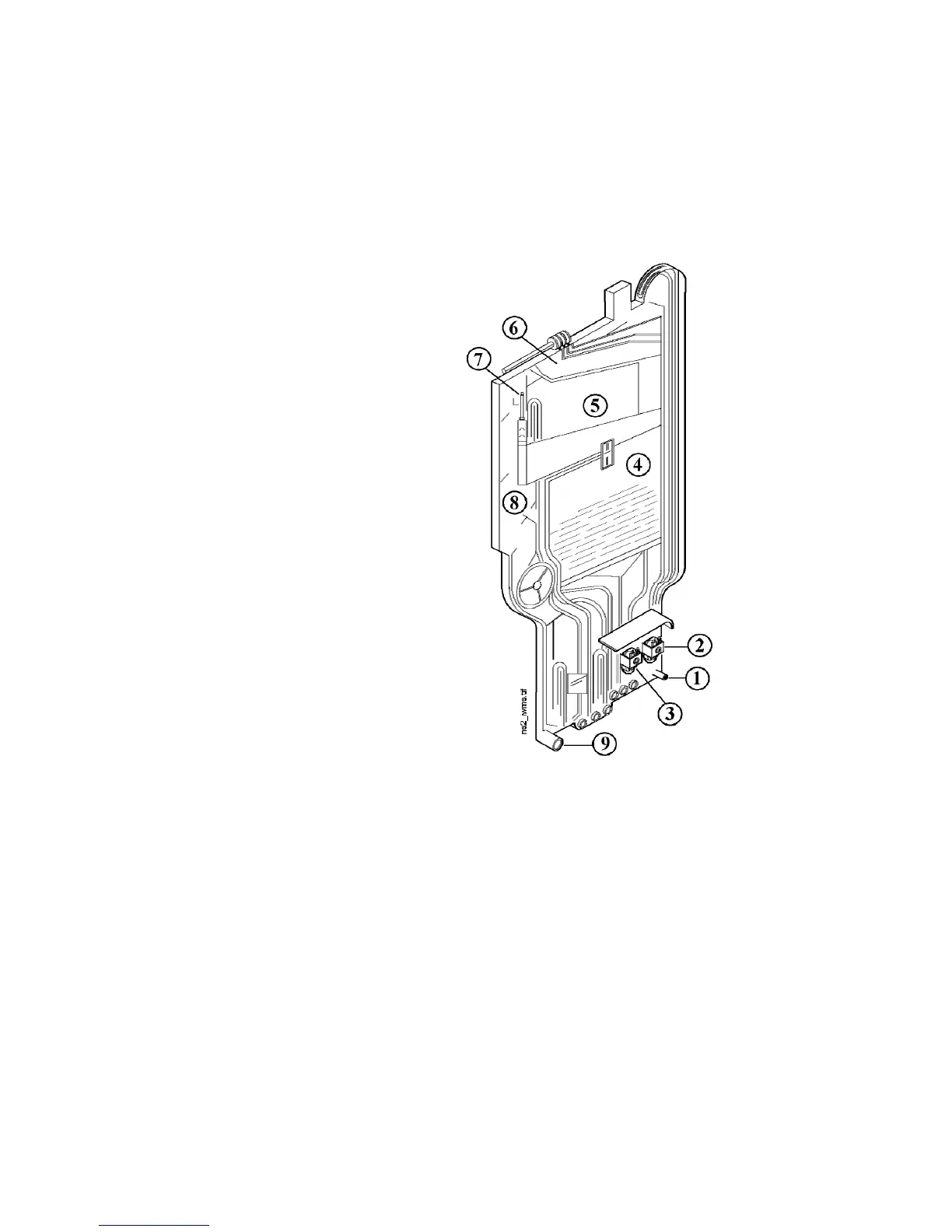

The following components are built in:
1. INTAKE CIRCUIT FOR FILL WATER
2. REGENERATION SOLENOID
3. RESET SOLENOID
4. RESIN RESERVOIR
5. VOLUMETRIC CONTROL RESERVOIR
6. REGENERATION WATER RESERVOIR
7. VOLUMETRIC DISTRIBUTOR
8. CONDENSATION CHAMBER
9. WATER OUTLET CIRCUIT TO SUMP
The IWMS also contains safety devices for the LEVEL and ANTI-OVERFLOW control functions.
